MDG L-Type Single-Girder Hook Gantry Crane

MDG combines one main girder, a winch-lifting trolley and L-shaped legs for outdoor hook handling. Select the passage around the long or bulky component, rigging and actual working height. Check useful hook positions, both ground runways and any planned turning method through pickup and landing.

Bridge
Single main girder
Lifting
Single winch-lifting trolley
Leg geometry
L-shaped legs

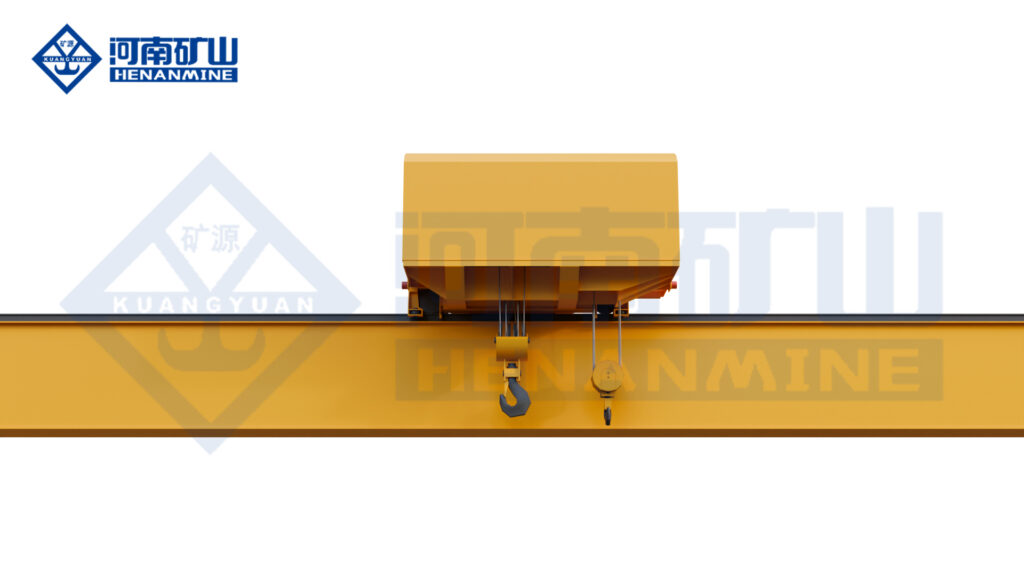

MDG trolley and hook equipment — manufacturer detail rendering
MDG winch trolley and hook configuration reference — manufacturer component rendering; detail view.Manufacturer component detail
01 / APPLICATIONS

Where the MDG
fits the work.

01

Long components in a fabrication yard

Move beams, frames or fabricated assemblies between storage, preparation and loading positions. Review how the load enters the supporting area and whether a turn is needed before it reaches the landing point.

02

Freight-yard loading and transfer

Serve an outdoor loading strip where rigged goods move between storage and a receiving vehicle or transfer area. Check the truck envelope and complete suspended component through the supports, then coordinate ground rails, moving legs and loading access.

03

Terminal-side equipment and cargo handling

Use the selected hook arrangement for equipment or cargo moving along a ground-rail working area. Load dimensions, rigging height and the space beside the runway influence the useful hook coverage.

02 / TECHNICAL SPECIFICATIONS

MDG specifications
and equipment configuration.

Compare the lifting mechanism, control functions and site interfaces for the selected crane.

The stated capacity and span are model selection ranges. Select one complete load/span arrangement; lifting height, duty, mechanism speeds and wheel reactions belong to the chosen crane.

MDG technical specifications and configuration
Manufacturer model data & available arrangements
ModelMDGMain-girder arrangementSingle main girder
Lifting mechanismWinch hoisting mechanismLeg geometryL-shaped legs
Rated capacity range5–50 t; select the complete rated arrangementSpan range18–35 m; select with load and site geometry
Operating controlsGround / remote / cabin optionsPower-feed choicesCable or conductor-line supply
Crane-travel driveThree-in-one variable-frequency driveSystem arrangementGantry frame, winch hoisting, travel mechanisms and electrical controls
Load passageL-leg opening for long items and loads requiring large-angle turningApplication focusOutdoor loading and transfer in freight yards, terminals and similar areas
Project configuration to agree
Useful lifting heightSelect upper and lower hook positions with rigging and load heightWorking classSelect from the load spectrum, handling frequency and shifts
Hoisting performanceState lifting and positioning speeds for the chosen winch packageTrolley coverageCheck hook approaches and required pickup / landing positions
Runway and wheel reactionsFinal rail section and wheel loads matched to the selected craneSite power supplySpecify voltage, phases, frequency and the power-feed route
Travel corridorDefine runway length, stopping positions and vehicle clearanceInstallation interfacesAgree crane assembly, rail work, foundations and commissioning scope
03 / EQUIPMENT VIEWS

See the MDG arrangement.

Review the original equipment views alongside the selected crane drawing.

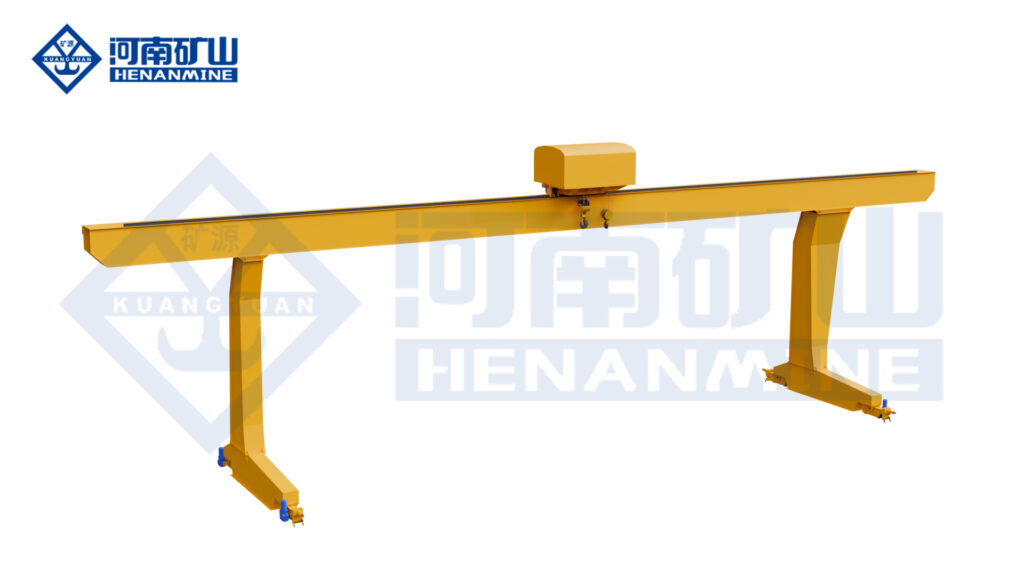

MDG L-type gantry crane — manufacturer view 1
L-type single-girder arrangement — manufacturer rendering, view 1.
MDG trolley and hook equipment — manufacturer detail rendering
MDG trolley and hook arrangement — original manufacturer component rendering; detail view.
MDG trolley-to-girder interface — manufacturer detail rendering
MDG trolley-to-girder interface — original manufacturer component rendering; detail view.
04 / CONFIGURATION

Choose the MDG equipment and site interfaces.

01 / OPTION

Winch and complete load

Select the single-girder winch trolley, hook block, useful hook travel and positioning performance for workpiece, slings and any lifting beam. State typical loads, lift frequency and shifts; retain inspection and service access.

02 / OPTION

L-leg passage and turning

Check the opening at the component’s actual height and orientation, including trolley side projections, approaches and rigging. Define any turning method, connections and separate equipment; assess swept space against legs, vehicles, stacks and nearby equipment. Identify outside-span positions and permitted loads.

03 / OPTION

Travel, control and supply

The crane-travel package uses three-in-one variable-frequency drives. Select ground, remote or cabin operation for visibility throughout the route. Compare cable and conductor-line supply; state voltage, phases, frequency and the incoming supply boundary.

04 / OPTION

Runways and outdoor installation

Use selected wheel geometry, vertical and horizontal reactions and rail profile for both runways and foundations. Coordinate crossings, walking and maintenance routes. Specify wind, temperature, moisture, dust, corrosion, parking and storm provisions; allocate civil, assembly, electrical and commissioning work.

05 / PURCHASING & DELIVERY

Confirm the complete MDG supply scope.

ORDER

Order quantity

Request one complete crane or your project quantity. Share load, approximate rail-centre span, useful lift and destination; estimates or a task sketch can explain passage while other dimensions remain open.

QUOTATION

Equipment and quotation scope

List structure, winch trolley, hook, drives, controls and power feed; distinguish rails, packing, transport, site work and installation. Agree price, order conditions and manufacturing and delivery schedule.

DOCUMENTS

Drawings and equipment documents

Show useful hooks, mechanism envelope, leg opening at working height, rail centres and reactions. Agree equipment and electrical schedules, operating and maintenance information, destination documents and specified material certificates.

ACCEPTANCE

Standards and acceptance

Define factory tests, site checks and acceptance records. Document any turning method and ordered functions; coordinate inspection with both runways’ readiness and alignment.

DELIVERY

Delivery and installation

Plan transport sections, unloading, assembly and installation access. Allocate rail alignment, erection, electrical connections and commissioning.

SUPPORT

Warranty and spare parts

Provide winch, drive and control maintenance access, instructions and spares information. State warranty terms and start point, installation assistance and after-sales responsibilities.

CONTINUE YOUR COMPARISON

Compare related
gantry arrangements.

All 3 L-type models ↗
07 / QUESTIONS BEFORE ORDERING

Choose the MDG
with the job in view.

Compare the handling task, selected lifting equipment and supply scope before ordering.

What is the difference between MDG and MHL?

Both use L-shaped supporting legs, while MDG uses winch lifting and MHL uses an electric-hoist arrangement. Compare their selected mechanisms at the same load, useful hook height and operating cycle, together with leg clearance, controls and maintenance access.

Does MDG use one or two lifting trolleys?

The MDG arrangement here uses one winch-lifting trolley. MDE is the related L-type model with two lifting trolleys. Consider that separate arrangement when the work requires defined lifting points and specified load distribution along a long component.

Will a long load pass through the L-shaped legs?

Check the selected opening against the complete workpiece and rigging at the height and orientation used during the move. Include the winch-trolley body, hook approaches, any vehicle and nearby obstructions. The L-shaped arrangement provides a geometry to develop; the dimensioned drawing establishes the passage available for your component.

How should I use the capacity and span ranges?

The 5–50 t capacity and 18–35 m span figures describe the MDG model selection ranges. Choose one complete load-and-span arrangement with its required hook travel, duty and mechanism package. The technical offer identifies the equipment and support reactions for that selected crane.

What should be included when measuring useful lifting height?

Describe the upper and lower hook positions needed at pickup and landing, including the workpiece height, slings and any lifting beam. The winch-trolley body, bridge and rigging occupy part of the available space. Show rail elevations and useful hook approaches on the drawing so lifting height and load passage can be checked as separate, connected requirements.

Which operating and power-feed choices are available?

MDG offers ground, remote and cabin control choices, with cable or conductor-line supply. Select the arrangement around operator visibility, runway length, supply location, traffic and access to the equipment along the travel route.

What information helps with an outdoor installation?

Share known wind and environmental conditions, the planned runway and parking positions and the routes used by vehicles and people. The selected crane's wheel reactions and rail interfaces can then support the runway and foundation work, with the required operating and parking provisions included in the equipment scope.

Can I enquire before the runway and foundation design is complete?

Yes. Begin with the load, approximate span, useful lifting height and destination, leaving unknown items open. The proposal can establish the crane geometry and reactions needed to develop both runways, while the written offer makes equipment, civil work and installation responsibilities clear.

Does the MDG winch arrangement include automatic load rotation?

Describe the change in orientation your workpiece needs. The turning method, lifting connections, any separate turning equipment and permitted crane movements are selected for that task. Check the full movement against the L-leg opening and hook coverage; the leg shape and a winch trolley alone do not define a rotation function.

How can I compare the electrical and installation scope in different offers?

Use the same incoming supply point and site voltage, phases and frequency. Identify the included cable or conductor equipment, site connections and installation work. Then compare responsibility for the two runways, foundations, unloading, erection and commissioning so the quotation boundary matches the work your site needs.
