HENAN MINE CRANE / GANTRY CRANES
Double-Trolley L-Type Gantry Crane
Two lifting trolleys on an L-leg gantry support long or shared loads in open yards.
MDEModel designation5–50 tRated load selection
PRODUCT CONFIGURATION / MDETHE LIFTING TASK
Designed for your handling path.
Two lifting trolleys on an L-leg gantry support long or shared loads in open yards.
Crane arrangement
L leg / two trolleys with Two winch hooks.
MODEL MDE
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Rated capacity5–50 t
Crane span18–35 m
Bridge / structureL leg / two trolleys
Lifting systemTwo winch hooks
Lifting heightSet from the pickup level and highest required hook position
Control arrangementPendant or radio remote to suit operator visibility
Power supplyMatch voltage and frequency to the destination site
Runway and foundationsCheck rail gauge, wheel loads and foundation design
Hook approach and clearanceConfirm required lifting envelope against the site drawings
Operating cycleDefine load spectrum, lifts per hour and operating shifts
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Long-load handling
Compare the Gantry Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Rails and working envelope
Confirm rail gauge, runway length, foundation capacity, cantilever and end approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Combined load; trolley spacing; cantilever

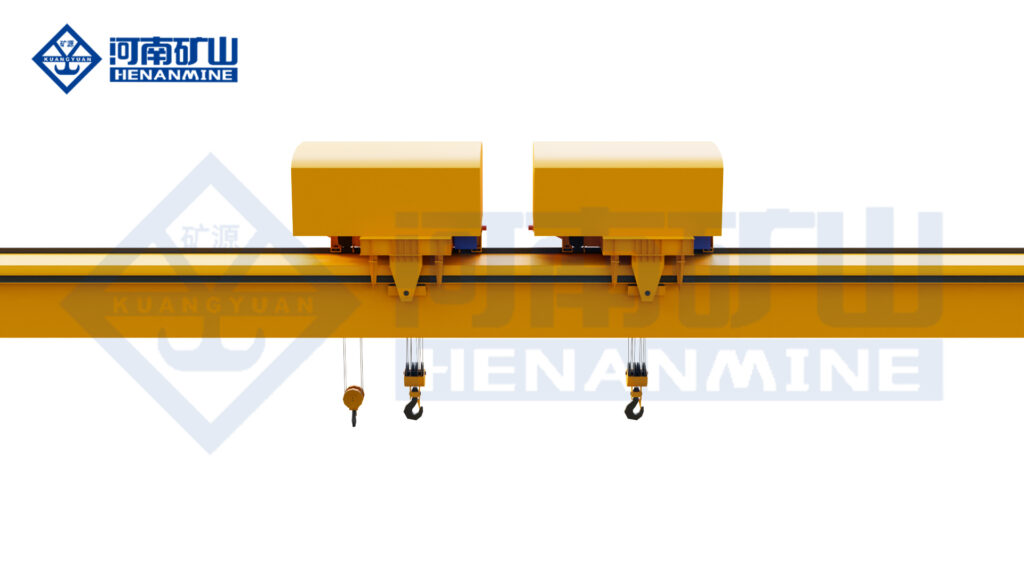

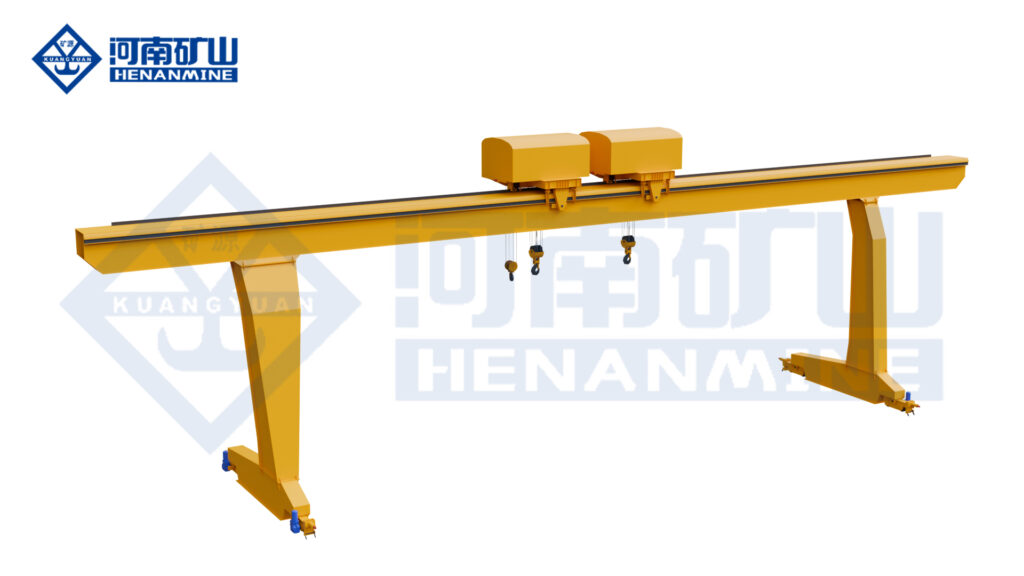

PRODUCT PHOTOS
See the MDE configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a MDE crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
