MHH truss electric-hoist gantry crane

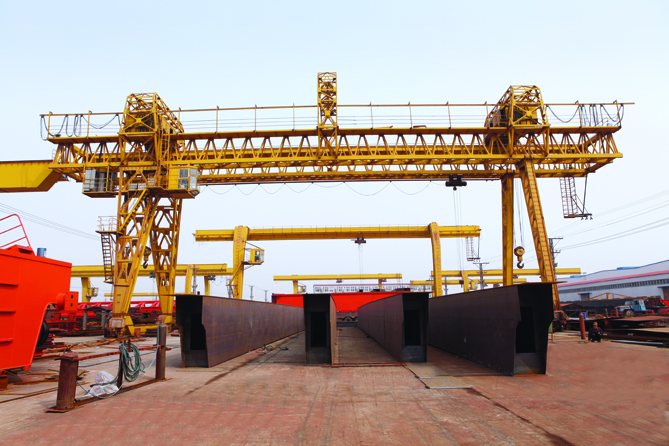

Compare an open-truss structure for your outdoor lifting route. MHH combines a single truss girder with electric wire-rope lifting and ground-level support rails. Select the load, span, lifting height and working cycle together, with the site's wind exposure and delivery access in view.

Rated capacity
1–20 t
Span
10–30 m
Lifting height
10 m reference
Working duty
A3–A5
Manufacturer rendering: Three-quarter view of the truss gantry
Single-girder trussed gantry layout reference — manufacturer rendering.Product arrangement rendering
01 / APPLICATIONS

Where the MHH
fits the work.

01

Outdoor fabrication yards

Transfer fabricated parts between defined work positions. Review the complete load envelope, lifting attachment and travel route with the wind exposure expected at the installation location.

02

Material storage and loading

Serve storage lanes or loading positions along a dedicated rail route. Agree the clear leg opening, hook approach and any cantilever reach required at the edge of the work area.

03

Sites with planned transport sections

Compare the truss and box-girder alternatives where delivery length, lifting access for assembly or maintenance routes affect the project. Structural sections and site assembly belong in the supply scope.

02 / TECHNICAL SPECIFICATIONS

MHH specifications
and equipment configuration.

Compare the lifting mechanism, control functions and site interfaces for the selected crane.

MHH truss selection ranges. Select capacity, span, lifting height and duty together, with structure and parking provisions matched to site exposure.

MHH technical specifications and configuration
ModelMHHRated capacity range1–20 t, with the required configuration selected together
Span range10–30 mLifting-height reference10 m; other requirements reviewed with the crane layout
Working classA3–A5Lifting mechanismElectric wire-rope hoist
Main-girder structureOpen truss welded from structural steel sectionsGirder arrangementSingle girder
Lifting attachmentsHook; grab or electromagnetic attachment by configurationCrane runwayGround-level rails on both sides
Cantilever arrangementWith or without cantileverStructural selectionTruss sections matched to load, span and local wind exposure
Power supply380 V, 50 Hz, 3-phaseOperating controlGround control for the reference arrangement
Hoisting speedSpecified with the selected load and electric-hoist packageCross travelPowered electric-hoist travel along the girder
Long travelRail travel selected for the runway length and handling cycleFrame alternativesFixed or travelling arrangements; bogie options by design
Working motionsVertical lifting and movement across / along the runwayOperating patternIntermittent, repeated material and equipment handling
Transport arrangementGirder sections and assembly joints selected for delivery accessApplication focusOutdoor handling where truss structure and wind exposure matter
03 / EQUIPMENT VIEWS

See the MHH arrangement.

Review the original equipment views alongside the selected crane drawing.

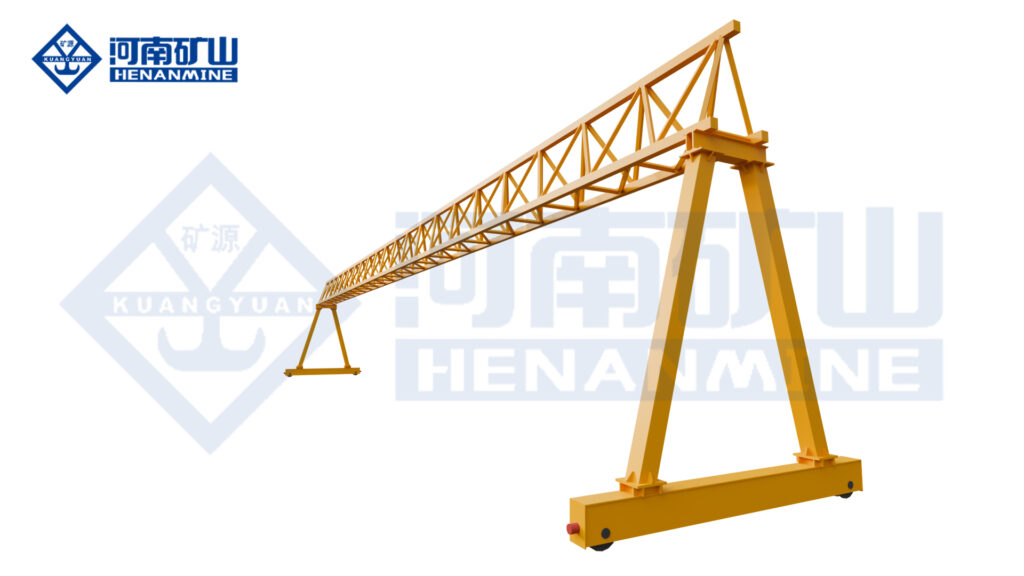

Manufacturer rendering: Three-quarter view of the truss gantry
Three-quarter view of the truss gantry — manufacturer rendering.

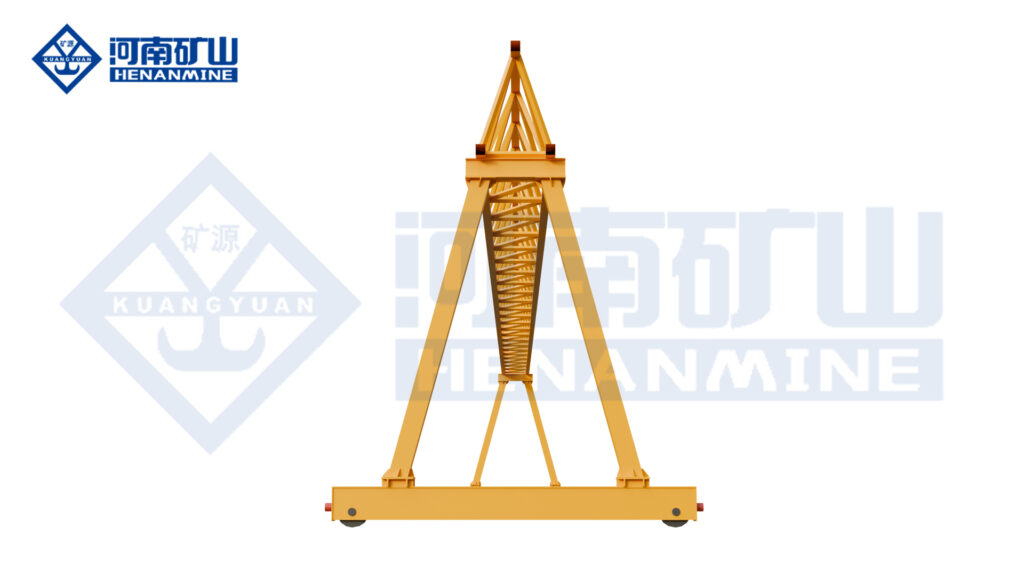

Manufacturer rendering: End view showing the truss section and leg frame
End view showing the truss section and leg frame — manufacturer rendering.

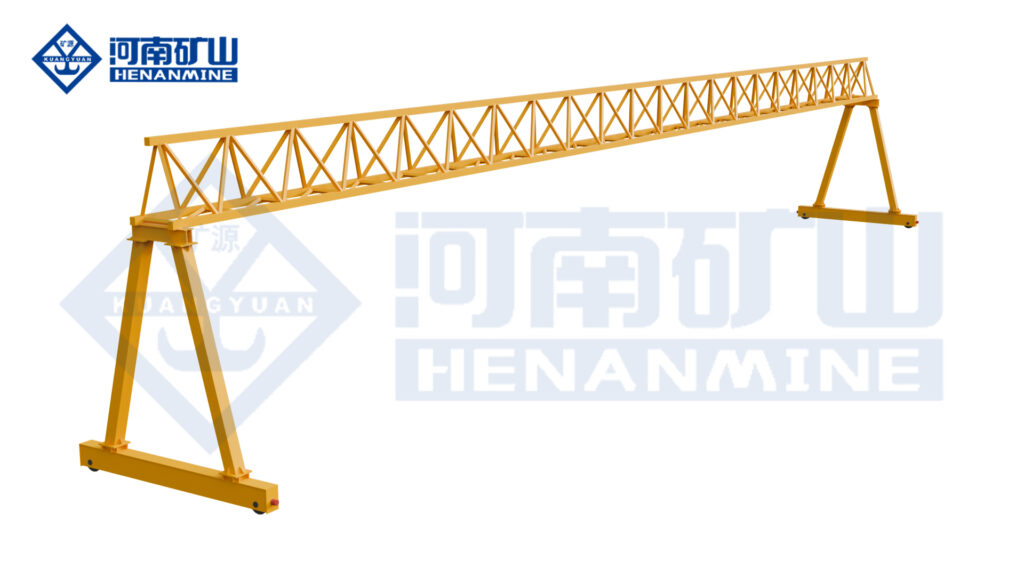

Manufacturer rendering: Opposite three-quarter view of the truss gantry
Opposite three-quarter view of the truss gantry — manufacturer rendering.
04 / CONFIGURATION

Choose the MHH equipment and site interfaces.

01 / OPTION

Truss and lifting package

Select load, span, duty, hoist, attachment and any cantilever as one arrangement. The welded open truss changes self-weight, wind-exposed area and transport sections; it still requires the specified operating and parked wind cases and restraint.

02 / OPTION

Hook levels and load route

Check the hoist, rigging, load, useful hook levels and approaches against the leg opening. The listed 10 m lifting height is a reference; the selected drawing establishes actual clearance, rail geometry and wheel reactions.

03 / OPTION

Deployment and electrical supply

The reference travelling arrangement uses two ground rails, ground control and three-phase supply. Fixed, travelling or bogie alternatives need their own review. Define the actual power-feed route, operator observation positions, rail ends and local obstructions.

04 / OPTION

Transport and outdoor service

Agree structural sections, assembly joints, erection space, site lifting assistance and service equipment. Provide rain, dust, corrosion and wind exposure, parking location and access to the hoist and travel mechanisms; coordinate foundations and the complete runway.

05 / PURCHASING & DELIVERY

Confirm the complete MHH supply scope.

ORDER

Order quantity

Start with one complete MHH crane or state the number of units your project needs. The quotation confirms quantity, lifting equipment, controls, power feed and any rails or runway equipment included.

QUOTATION

Equipment and quotation scope

Capacity, dimensions, duty, selected components, packing, freight and installation services influence the quoted price.

DOCUMENTS

Drawings and equipment documents

Include the technical drawing, mechanism and electrical schedules, inspection or test records, operating instructions and destination requirements in the supply scope.

ACCEPTANCE

Standards and acceptance

Any required certification, inspection standard or equipment protection must apply to the selected model and configuration.

DELIVERY

Delivery and installation

The offer sets the manufacturing and delivery schedule after the equipment is agreed. Confirm packing, shipment, site lifting access, assembly and commissioning responsibilities.

SUPPORT

Warranty and spare parts

Ask the written offer to state the warranty period, service arrangements and spare-parts scope for your crane.

CONTINUE YOUR COMPARISON

Compare related
gantry arrangements.

All 9 single-girder models ↗
07 / QUESTIONS BEFORE ORDERING

Choose the MHH
with the job in view.

Compare the handling task, selected lifting equipment and supply scope before ordering.

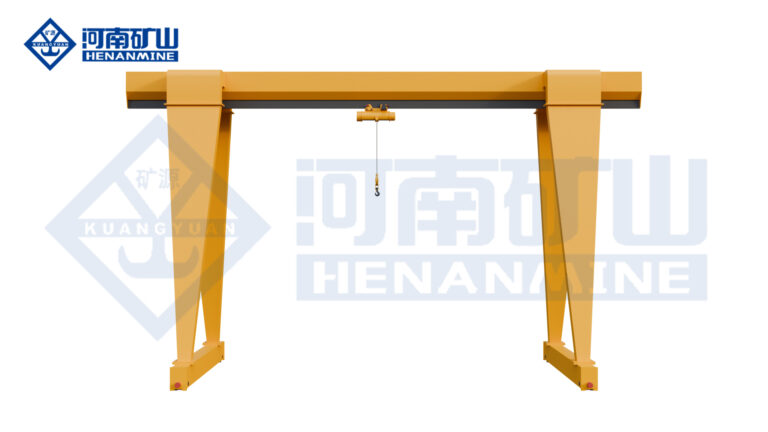

How does MHH differ from a box-girder MH?

MHH uses an open truss girder rather than a closed box section. Compare the structure, wind exposure, transport sections and maintenance access at the same required load and span. The preferred form depends on the complete site and handling task.

Is a truss gantry suitable for any outdoor wind condition?

No universal wind limit is implied by the truss shape. The selected crane must address the local operating and parked wind requirements, travel restraint and parking arrangement. Include the installation location and exposure in the technical enquiry.

Does the 10 m lifting-height reference cover every order?

It is a reference selection for this range. Your required pickup and set-down elevations, hoist headroom and attachment dimensions determine the working height needed. Other requirements are reviewed with the load, span and complete crane layout.

Can a truss gantry handle a grab or magnet?

Suitable grab or electromagnetic arrangements can be reviewed as configurations. The attachment mass, material, operating cycle and power or control interfaces affect the lifting equipment and structure. Give these requirements with the selected crane duty.

What should be agreed for installation?

Agree the transport sections, packing, site lifting access, girder assembly, runway alignment and commissioning responsibilities. The technical drawing and installation scope should describe the selected crane and the supporting work at the destination.

How is the working class selected within the MHH range?

Describe typical and heaviest loads, lifting frequency and shifts. These inputs guide the selected class within the stated A3–A5 range together with the hoist and structure. The complete operating cycle matters alongside the crane's rated load.

How should fixed, travelling or bogie arrangements be compared?

Identify the movement the task requires and make the chosen frame and travel arrangement explicit in the offer. Compare its supporting interfaces, load route, control functions and installation plan rather than treating the alternatives as interchangeable site layouts.

What electrical information helps with the MHH proposal?

State the site's voltage, frequency and phases, supply location and runway length. Compare these with the reference electrical arrangement, then identify the power feed, ground-control position and any attachment connections in the selected equipment schedule.
