MGH Truss Gantry Crane

Choose a truss gantry crane for outdoor lifting where the load route, rail layout and wind exposure are defined. Compare the quoted load, span, hook height and duty as one matched configuration, with the selected hoist or trolley, storm restraint and site interfaces identified in the offer.

MODEL
MGH
FAMILY LOAD
5–100 t
ARRANGEMENT
TRUSS BRIDGE
QUOTE
Site matched
An open-structure gantry for exposed sites

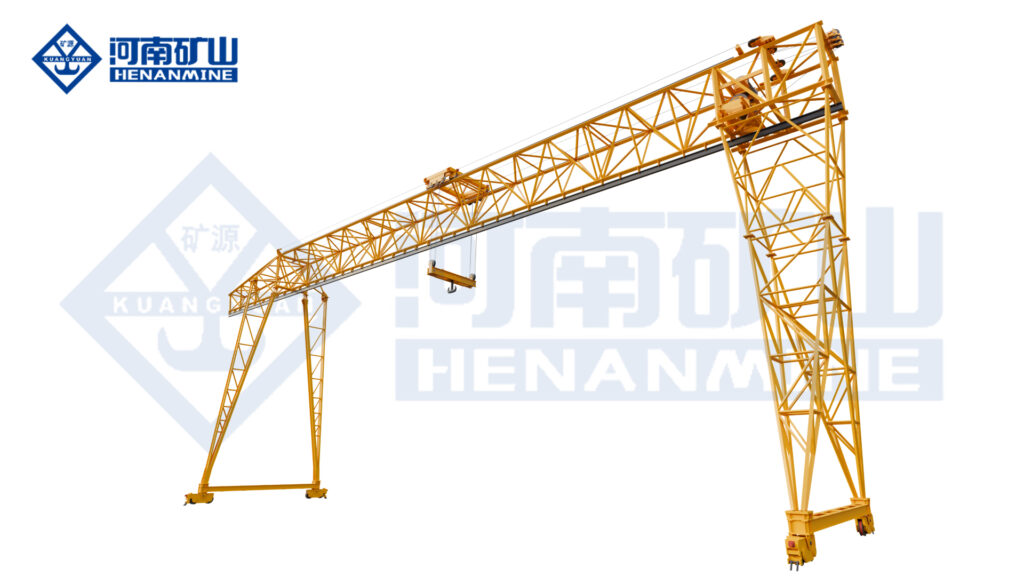

Yellow gantry crane with an open-lattice bridge, upper trolley and lattice legs spanning an outdoor industrial yard
Truss gantry crane in an outdoor yard
01 / APPLICATIONS

Outdoor lifting across a defined yard.

Select the truss arrangement around the material, travel route and exposure at the working site.

01

Fabrication yards

Lift fabricated assemblies between production and storage positions. Allow for the load dimensions, rigging and useful hook height, with access for the selected crane mechanisms.

02

Construction work

Transfer components between planned workstations along a rail route. Match the travel length, rail support and temporary or permanent foundations to the selected crane reactions.

03

Precast handling

Handle long concrete parts with the agreed attachment and lifting points. Check edge clearance and outdoor wind limits for both normal operation and the parked crane.

02 / SPECIFICATIONS

Compare the selected configuration.

Capacity, span, useful hook travel and mechanisms are confirmed together for the quoted unit.

ParameterReference selection rangeProcurement check
Model / arrangementMGH / Truss Gantry CraneConfirm arrangement and lifting device on the drawing.
Published truss-family capacity5–100 tCheck the actual MGH lifting package.
Published truss-family span18–35 mFinal rail spacing and wind case are project-specific.
Published truss-family dutyA3–A5Confirm the actual load spectrum and cycle.
Rated load for your orderSelected from complete suspended massInclude load, rigging and any grab, magnet or lifting beam.
Rail-centre span / travelSet from the site surveyProvide rail centres, travel length and hook coverage.
Lifting heightSet from pickup and set-down elevationsAllow for attachment depth and rigging height.
Working class / cycleWithin published family; final class by cycleState loaded lifts per hour, daily shifts and maximum-load frequency.
StructureOpen welded trussAsk for bridge deflection and shipping sections.
Outdoor restraintWind parking and anchoringInclude the governing operating and storm cases.
Wheel loads / windCalculated for selected structureRequest governing vertical, lateral, braking and storm cases.
03 / EQUIPMENT VIEWS

Review the equipment views.

Yellow gantry crane with an open-lattice bridge, upper trolley and lattice legs spanning an outdoor industrial yard
Truss gantry crane in an outdoor yard

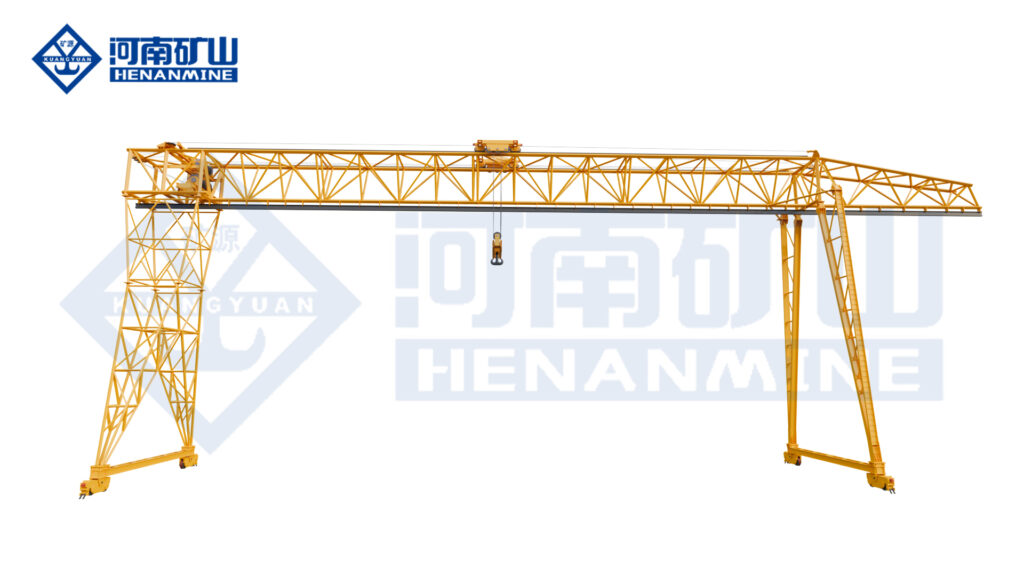

Yellow open-truss gantry cranes with upper walkways above fabricated steel sections in an outdoor yard
Truss gantry cranes above steel fabrication

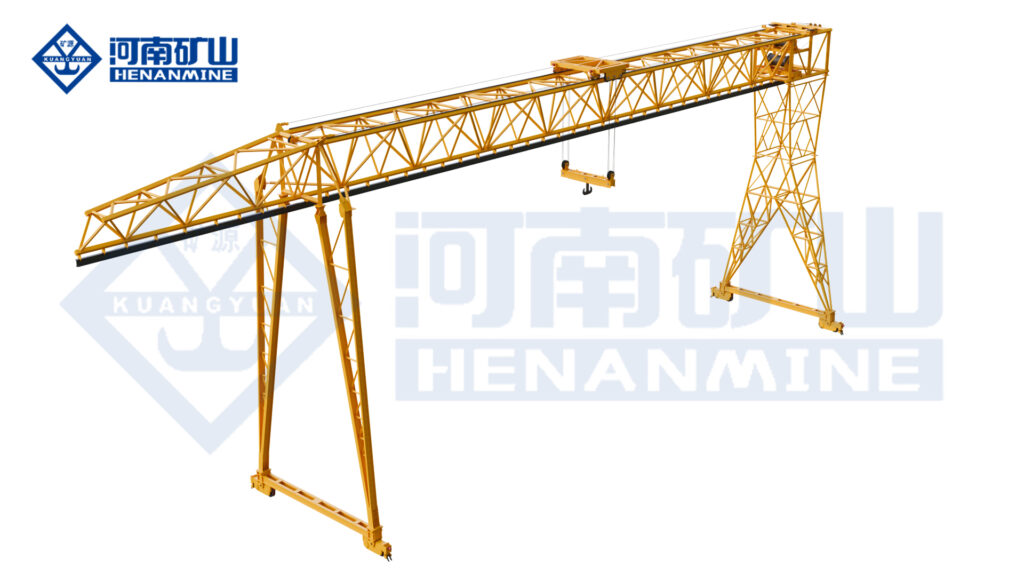

Yellow gantry cranes with open-truss bridges, upper trolleys and lattice support legs aligned along an outdoor fabrication yard
Truss gantry crane bridge and support arrangement
04 / CONFIGURATION

Select the package for your lifting task.

01

Lifting package

Include the load, rigging and attachment in one rated lift. Identify the selected hoist or trolley, brakes, limits, controls and lifting device in the offer.

02

Working envelope

Mark rail centres, runway length, useful lift, hook approaches and any outside-span positions. Check truss access, bridge deflection and transport sections against the chosen arrangement.

03

Duty and wind

State lift frequency, shifts and maximum-load use. Agree the operating wind limit, storm parking, anchoring and corrosion requirements for the actual outdoor location.

04

Site and supply

Provide foundation, power and delivery-access information. Include approved reactions, installation dimensions, the equipment list and test responsibilities in the complete quotation.

05 / DELIVERY & SUPPORT

Know what the quotation includes.

01

Order and equipment

Order one complete crane or define a project package. Itemise the truss bridge, legs, selected hoist or trolley, travel drives and outdoor restraints.

02

Drawings and documents

Request the selected load, dimensions and mechanisms, arrangement drawing, reactions, operating and electrical information, applicable inspection/test records and destination conformity documents.

03

Schedule and shipping

Agree the production, factory inspection and dispatch dates after configuration approval. Confirm packing, transport dimensions, freight route and unloading access separately from site work.

04

Installation and acceptance

Define site readiness, personnel and equipment for assembly, electrical hookup, commissioning and load testing. Agree operator information, training and the factory/site acceptance requirements.

05

Warranty and service

Put warranty duration and component coverage in the offer. Separate wear parts and site-service costs; agree installation guidance, engineer attendance and model-matched maintenance parts.

06

Supplier and site scope

State the approved equipment, support or floor interfaces and each party’s responsibilities. Include shipping terms, installation boundaries, handover documents and after-sales response in the contract.

Request service and warranty terms ↗
07 / BUYER QUESTIONS

MGH purchasing questions, answered.

Check the selection, commercial scope and installation requirements before ordering.

Does an open truss eliminate storm anchors?

No. Ask for the operating wind limit and the parked-crane restraint design.

What is the minimum order?

Request a quotation for one complete crane. The commercial minimum and included equipment and services must be stated in the offer.

What certification should be supplied?

Ask for the inspection, test and destination-specific compliance documents applicable to the quoted model and configuration.

How do I confirm delivery?

Request dated factory dispatch after deposit and drawing approval; list freight, installation and commissioning separately.

YOUR NEXT LIFT STARTS HERE

Send your MGH project brief.

Tell us the maximum complete load, the handling task, rail layout, lifting height, cycle, site conditions, power and destination. Request a model-specific drawing, wheel-load schedule and dated commercial offer.

Discuss your project
Start with these project details
  • 01 Load, rigging and attachment
  • 02 Rail centres and travel length
  • 03 Hook coverage and lift height
  • 04 Cycles per hour and shifts
  • 05 Foundation, wind and power
  • 06 Destination and delivery scope
↑
