QES Three Trolley Paper Mill Overhead Crane

Serve paper-machine lifting and maintenance jobs with three hook trolleys on one double girder bridge. QES supports one trolley working independently or an approved pair working together, with PLC sequence control and a paper-machine DCS interface available.

HELP CHOOSING YOUR CRANE

Tell us what you need to lift and your approximate span. We’ll help you choose the lifting arrangement.

Trolley arrangement
Three hook trolleys
Working modes
Single / approved pair
Primary application
Paper mills
Control options
PLC / DCS interface
Roll and shaft handlingPaper-machine maintenanceProject-specific trolley ratings

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
Serve several paper-machine lifting jobs

Select three trolley ratings and hook positions around the rolls, shafts and maintenance loads that the bay needs to handle.

02
Use the right hook combination

Individual and approved paired modes let the lifting arrangement follow the component and its pickup points.

03
Connect the crane to the process

PLC sequence functions and a DCS interface can be specified when the crane needs to exchange operating information with the paper-machine system.

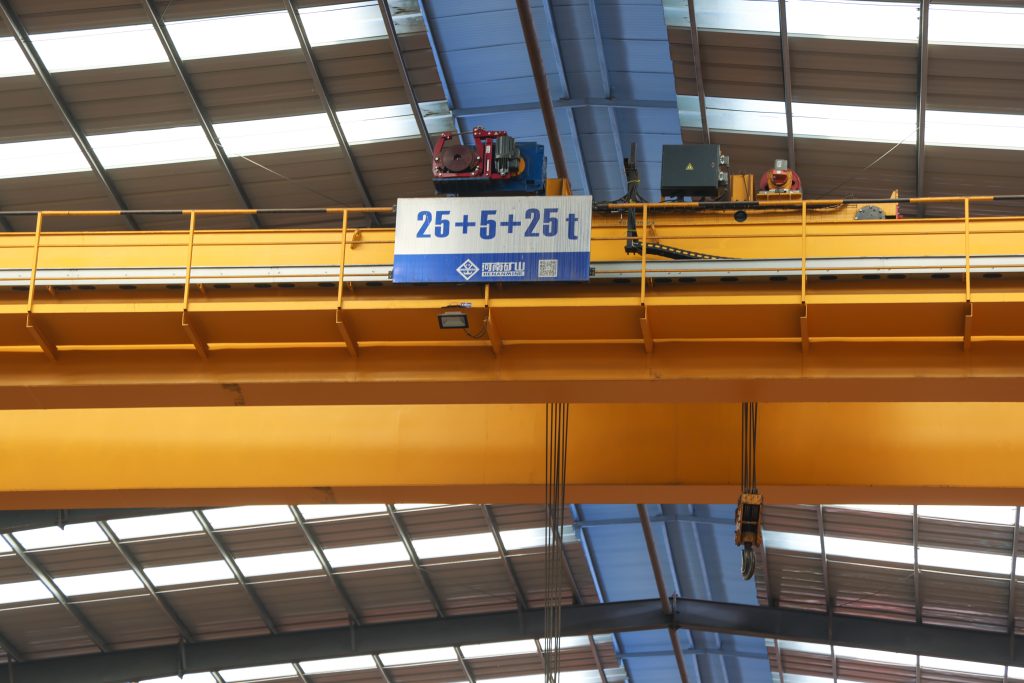

Henan mine crane co., ltd. three-trolley overhead crane with multiple lifting positions in a factory hall

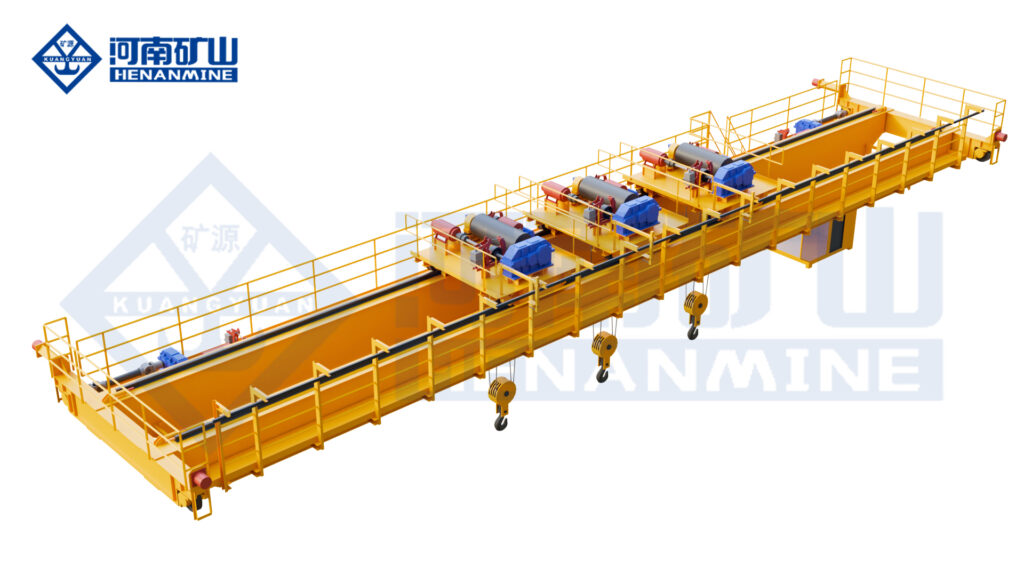

Three lifting positions on one overhead bridge
01 / APPLICATIONS

Bring the crane arrangement into the paper-mill workflow.

01

Paper-machine roll and shaft handling

Use a selected hook pair for components that need separated pickup points. Match trolley ratings and hook spacing to the roll-handling attachment.

02

Machine maintenance and overhaul

Use an individual trolley for a suitable component lift, or an approved pair for a larger maintenance load in the same working bay.

03

Coordinated paper-machine operations

Specify repeat lifting sequences and process-system signals where the crane operation is part of a planned production or maintenance workflow.

QES is arranged for one trolley or an approved pair. The selected hook combinations, individual ratings and combined-load cases are identified in the technical offer.

02 / TECHNICAL SPECIFICATIONS

QES specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelQES
Rated capacityThree individual trolley ratings and approved combined-load cases
SpanCustom rail-centre span to the production bay
Lifting heightCustom hook travel from pickup to placement level
Working dutySelected from load spectrum, lifts per hour and operating shifts
Hoisting speedSelected for roll, shaft and machine handling
Trolley / bridge travelSpeeds matched to single- and paired-trolley operations
Lifting arrangementHooks; Three trolleys
ControlPLC sequence control; paper-machine DCS interface available
Power supplyThree-phase supply matched to destination voltage and frequency
Operating environmentIndustrial service package matched to site conditions
Trolley arrangementThree hook trolleys; independent or approved paired operation
03 / EQUIPMENT VIEWS

See the three-trolley bridge arrangement.

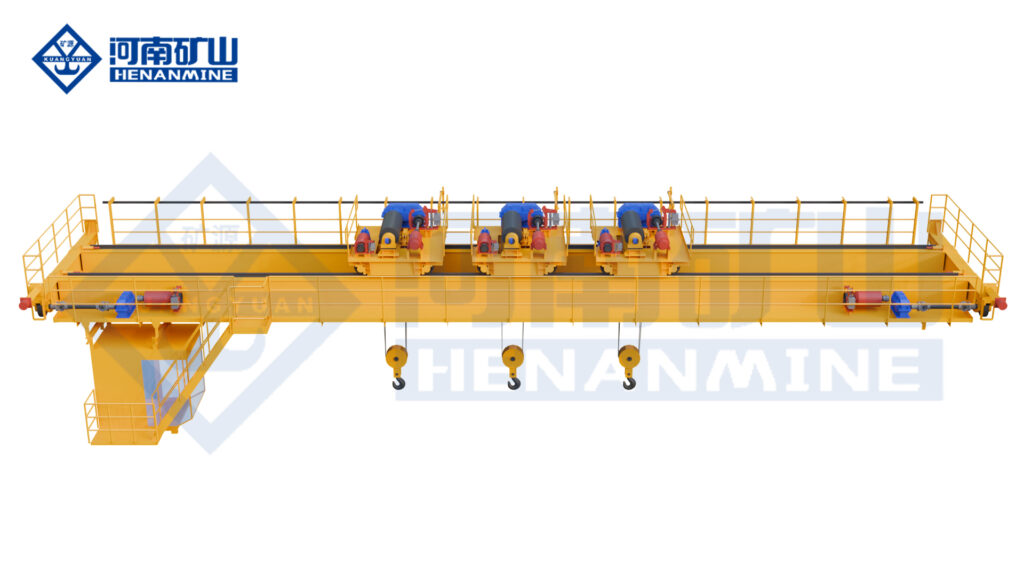

The product views show how the three hook trolleys are arranged on the double girder bridge.

Henan mine crane co., ltd. three-trolley overhead crane with multiple lifting positions in a factory hall
Three lifting positions on one overhead bridge
Henan mine crane co., ltd. three-trolley overhead crane with multiple lifting positions in a factory hall
Three lifting positions on one overhead bridge
04 / CONFIGURATION

Choose the trolley duties around the paper machine.

Start with the components to be lifted and their pickup points. The trolley arrangement and controls follow those jobs.

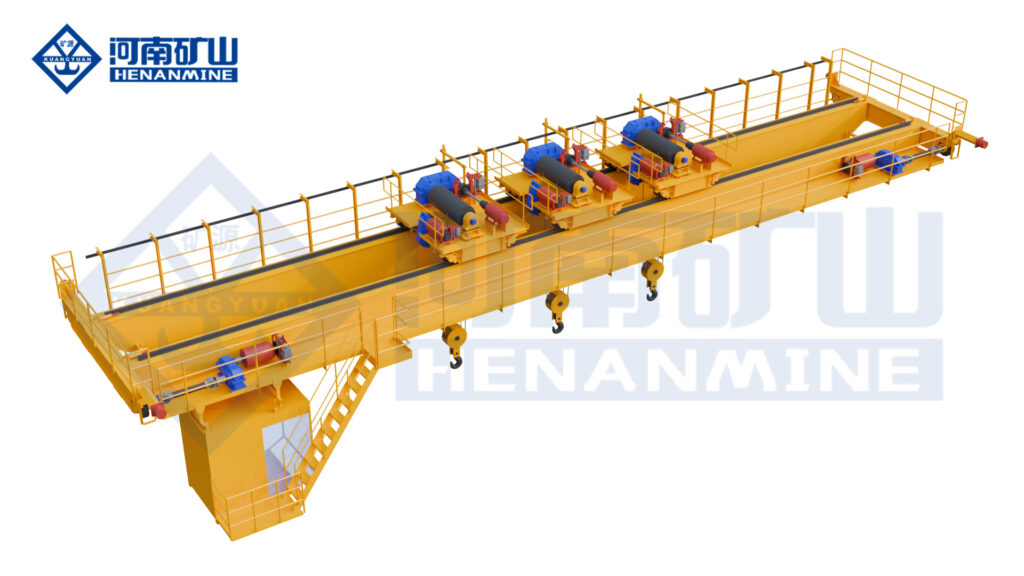

QES three-trolley hook crane, manufacturer view 3
QES end and trolley arrangement
01 / OPTION

Rolls, shafts and maintenance loads

List the heaviest component for each lifting job, together with its attachment weight and lifting-point spacing.

02 / OPTION

Three ratings and approved hook pairs

Set each trolley’s rating and the hook pairs needed in operation. The order defines the permitted paired load and trolley positions for each task.

03 / OPTION

Lifting and positioning speeds

Choose the speeds for roll removal, transfer and placement, together with the working span and hook travel needed around the machine.

04 / OPTION

PLC and paper-machine interface

Specify independent and paired modes, movement interlocks and any DCS signals. Agree the required process sequence and operator control arrangement.

05 / PURCHASING & DELIVERY

What comes with your QES crane?

Compare the equipment, documentation, delivery and service scope for the configuration you need.

ORDER QUANTITY

Order the crane you need

Request a QES crane for the paper-machine bay or a project quantity. The order identifies all three trolley ratings and the required hook combinations.

QUOTATION

See the equipment included

List the bridge, three complete trolleys, hook equipment and controls. Identify roll attachments, process interfaces, power supply equipment, transport and site services as included or separately priced items.

DOCUMENTS

Documents for your destination

Include the arrangement, trolley ratings, permitted pairs and load cases, operating instructions, electrical drawings and agreed test records. Ordered DCS functions include an agreed interface and signal schedule.

DELIVERY

Plan production and dispatch

Agree dispatch after the roll and maintenance lifting jobs, trolley arrangement and PLC or DCS scope are selected. Interface testing and site commissioning are planned in the schedule.

INSTALLATION

Installation and commissioning support

Define crane assembly, electrical work, commissioning and operator familiarisation. The selected single and paired modes and any process interface are checked against the agreed mill operating sequence.

WARRANTY & SPARES

Know the warranty and support scope

Confirm coverage for all trolley mechanisms, bridge drives and supplied controls. Identify recommended mechanism spares and the support arrangement for any ordered PLC or DCS interface.

07 / BUYER QUESTIONS

Answers for your QES crane purchase

Find the arrangement, equipment options and order information that suit your application.

What is the QES crane designed for?

QES is a three-trolley hook crane widely used in paper mills. Its trolley arrangement is selected for the mill’s component lifting and maintenance tasks, including suitable roll and shaft handling arrangements.

How do the three trolleys operate?

A trolley can operate independently, or an approved pair can work together. The technical offer identifies the selected hook combinations, travel limits and combined-load cases.

Can all three trolley ratings be added together?

Use the approved operating cases for the crane. Each trolley has its own rating, and paired operation has a separate permitted load and load distribution. The three individual ratings do not define a single unrestricted lifting capacity.

How does QES differ from QE?

QE has two hook trolleys for independent or paired long-load handling. QES has three trolleys and is selected around paper-mill jobs that need different hook positions or approved pairs within one bridge arrangement.

Can it handle our paper-machine rolls?

Provide the roll and shaft mass, attachment weight, lifting points and removal route. These determine the individual ratings, selected hook pairs, lifting height and trolley spacing.

Can the crane communicate with our DCS?

A paper-machine DCS interface is available through the selected PLC arrangement. The order defines the industrial communication interface, signals, operating permissions and any action sequence.

Are lifting attachments included?

The quotation identifies the supplied hook equipment and any roll-handling attachment. Include attachment dimensions, tare weight and pickup details so it can be matched to the trolley arrangement.

What information is needed for price and delivery?

Send a list of the lifting jobs, component weights, hook pairs, working span, lift and mill power supply. Include any PLC or DCS interface and the required installation support so the offer can set the equipment scope and schedule.

What documents and after-sales support should be agreed?

Include the crane arrangement, trolley ratings, permitted hook combinations, controls and interface documents, operating instructions and inspection records. The order also sets warranty coverage, recommended spares and commissioning support.

08 / YOUR QES CRANE PROJECT

Get a quotation for your crane.

Tell us what you need to lift, your project location and any dimensions you already know. We’ll help you choose a suitable configuration.

  • Configuration matched to your lifting task
