CQJ / CONTAINER HANDLING ON AN OVERHEAD BRIDGE

CQJ Container Overhead Crane

Load, stack and transfer containers within a fixed runway bay using a double-main-girder bridge and winch lifting system. The CQJ range covers 30–65 t rated selections and 18–35 m spans. Match the spreader, usable lift and travel coverage to the containers, vehicle positions and stacking plan.

HELP CHOOSING YOUR CRANE

Tell us what you need to lift and your approximate span. We’ll help you choose the lifting arrangement.

Rated selection range
30–65 t
Span selection range
18–35 m
Crane arrangement
Double-girder overhead bridge
Lifting mechanism
Winch and selected spreader
Container loading & stackingFixed elevated runwaysSelected spreader and controls

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
Build handling around the container lane

The overhead bridge serves a defined bay while the trolley moves the container across the span. Select coverage from the truck, rail or storage positions within that layout.

02
Match the lifting interface to the container

Choose the spreader and locking arrangement for the actual container size and gross mass. The offer identifies spreader weight, permitted container payload and the crane’s rated-load definition.

03
Select manual or automated handling

Ground, radio or cabin controls can be selected for the operating positions. Automation functions can be included with a defined positioning, locking-feedback and site-interface scope.

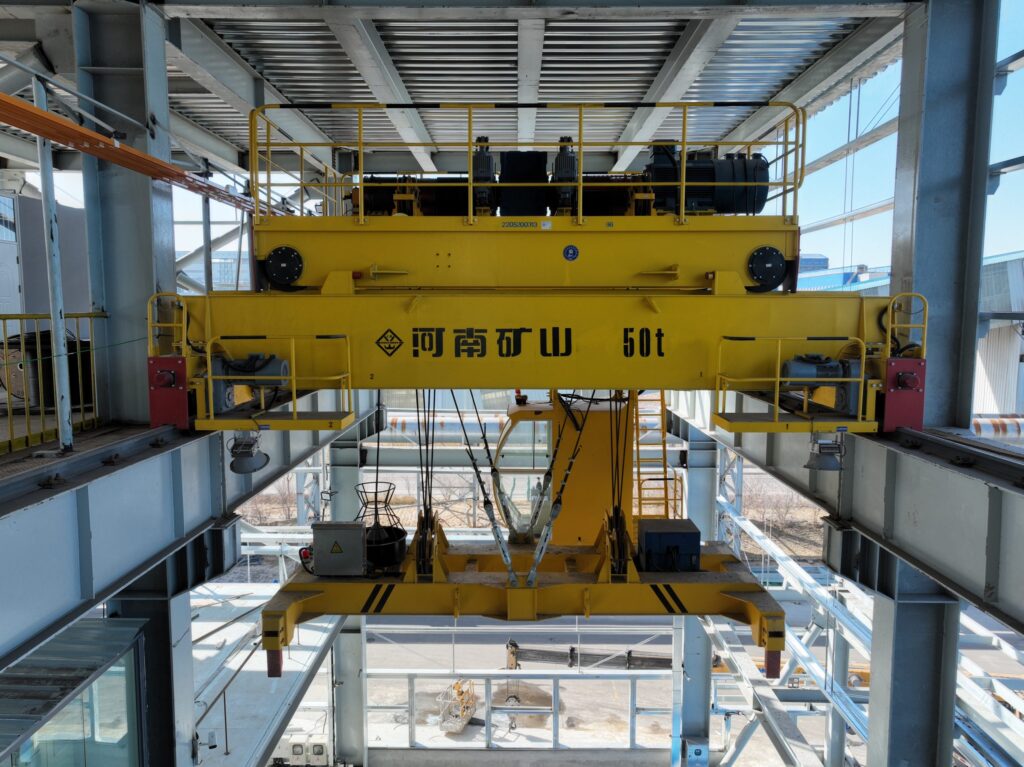

CQJ container-handling bridge installed inside a covered bay
CQJ container-handling bridge installed inside a covered bay
01 / APPLICATIONS

Container handling within one planned runway bay.

01

Container loading and unloading

Transfer containers between defined vehicle and set-down positions. Check lifting height, spreader approach and clearances for the vehicles and containers used at the site.

02

Storage and stacking

Arrange the span and usable lifting height around the proposed stack pattern. Include container height, spreader envelope and the clearance needed to move over stored units.

03

Factory and logistics transfer

Move containerized loads through a fixed handling zone at a factory or logistics facility. Match the crane cycle, travel length and controls to the required transfers per shift.

CQJ is an overhead bridge-crane arrangement. A ground-rail container gantry, rubber-tired gantry or dedicated ship-to-shore crane requires its own layout and specification.

02 / TECHNICAL SPECIFICATIONS

CQJ specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelCQJ
Crane arrangementDouble-main-girder overhead bridge on fixed elevated runways
Rated selection range30–65 t
Span selection range18–35 m
Lifting mechanismWinch-type lifting system
Container interfaceSelected container spreader and locking arrangement
Container sizesSpecified from the site container fleet and supplied spreader compatibility
Rated-load definitionContainer payload and complete suspended load identified separately in the technical offer
Reference lifting-height envelope8–20 m; usable lift selected for the stacking and loading layout
Reference working-duty envelopeA6–A7; duty matched to transfers per hour, load spectrum and operating shifts
Reference hoisting-speed envelope5–20 m/min; selected with the load and operating cycle
Reference bridge-speed envelope15–45 m/min; trolley speed selected separately and both stated in the offer
Runway lengthSelected for the fixed container-transfer route
Operator controlsGround, radio or cabin arrangement
Power feedCable or conductor supply selected for the runway and current demand
AutomationSelected functions and site interfaces agreed with the handling process
Power supplyDestination voltage and frequency selected with the electrical package
Operating environmentIndoor/outdoor exposure, wind and corrosion conditions specified for the actual installation

Compare model configurations

Selection itemCQJ family / arrangementValue to agree for the site
Rated load30–65 t selection rangePermitted container mass, spreader weight and rating definition
Span18–35 m selection rangeOne rail-centre span covering the required loading/storage positions
Usable liftReference 8–20 m envelopeContainer height, stack height, spreader depth and clearance
Duty and speedsReference A6–A7; hoisting 5–20 m/min; bridge travel 15–45 m/minActual loaded/empty speeds, separate trolley/bridge speeds and handling cycle
Spreader / controlsSelected spreader with ground, radio or cabin controlContainer compatibility, locking feedback and any automation functions

Capacity and span ranges describe the CQJ family. They are not complete matched combinations for every load, lift and speed; the quotation defines the actual crane, spreader and operating cycle together.

Spreader and stacking information for selection

Handling requirementInformation to provideConfiguration to specify
One container sizeContainer dimensions, gross mass and corner-fitting arrangementCompatible spreader, locks and suspension
Mixed container sizesFull container-size range and changeover frequencySelected fixed-size or adjustable spreader arrangement
StackingNumber of tiers, container heights, aisle/row positionsUsable hook/spreader travel and clearance above the stack
Automated movementJob positions, operating sequence and site signalsPositioning, locking feedback, interlocks and agreed interface functions

Container dimensions and the selected spreader determine compatibility. Twin-container lifting, special cargo and automated functions are separate named configurations.

03 / EQUIPMENT VIEWS

Review the bridge, winch trolley and container interface.

Compare the overhead bridge and lifting arrangement with the proposed runway bay. The supplied spreader and container compatibility are identified on the equipment schedule.

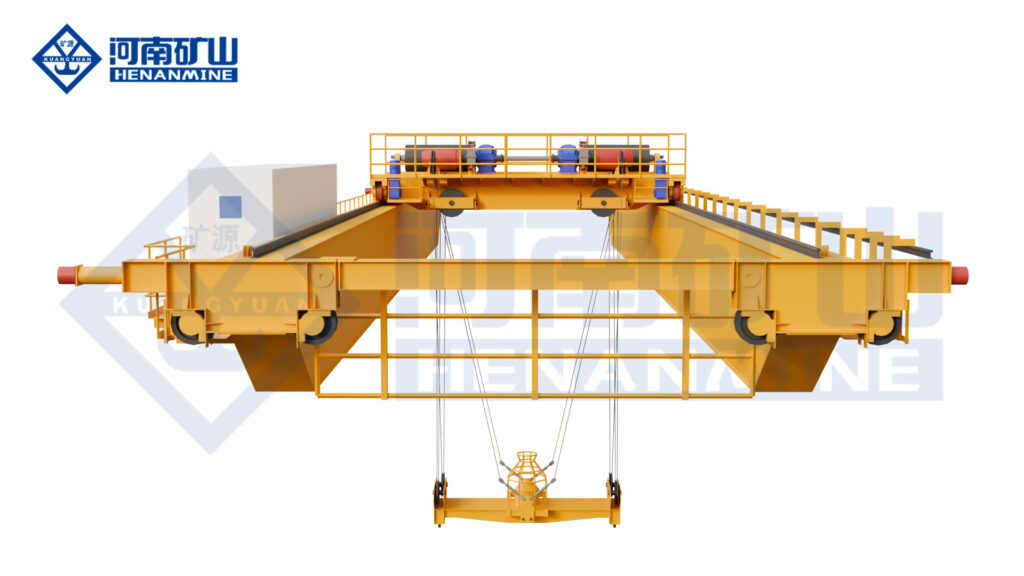

CQJ container bridge, trolley and spreader on elevated runways
CQJ container bridge, trolley and spreader on elevated runways
CQJ container-handling bridge installed inside a covered bay
CQJ container-handling bridge installed inside a covered bay
04 / CONFIGURATION

Specify the containers and handling positions first.

A useful selection binds rated load, spreader, span and lift to the actual container route. The same nominal tonnage does not define stack height or throughput.

CQJ lifting trolley and container-spreader arrangement
CQJ lifting trolley and container-spreader arrangement
01 / OPTION

Container size and gross mass

List the container lengths, heights and maximum loaded mass. State the corner-fitting and locking requirements, and whether one size or a mixed-size spreader is needed.

02 / OPTION

Spreader and rated-load definition

Identify the supplied spreader, suspension equipment and any special attachment. Agree the permitted container payload and whether the stated rating is at the spreader or for the complete suspended load.

03 / OPTION

Stack and vehicle coverage

Mark truck/rail loading points, storage rows and stack heights. Select span, travel length and lift for the full spreader/container envelope.

04 / OPTION

Cycle and control functions

State transfers per hour, operating shifts and travel distances. Select cabin, ground or radio control, and any positioning, locking feedback or automation interface needed.

05 / PURCHASING & DELIVERY

What comes with your CQJ crane?

Compare the equipment, documentation, delivery and service scope for the configuration you need.

ORDER QUANTITY

Order the crane you need

Request one CQJ crane or a container-handling project quantity. State the required rated load, span and spreader for each bay.

QUOTATION

See the equipment included

Itemize bridge, winch trolley, spreader, locking/feedback equipment and controls. Identify runways, rails, cable/conductor supply, freight, erection, automation interfaces and commissioning separately.

DOCUMENTS

Documents for your destination

Request the crane/spreader layout, rated-load definition, container compatibility, stacking coverage, electrical drawings, manuals and agreed crane/spreader inspection and test records.

DELIVERY

Plan production and dispatch

Schedule dispatch after crane geometry, spreader selection, controls and inspection scope are agreed. Coordinate spreader supply, electrification and site readiness with the installation programme.

INSTALLATION

Installation and commissioning support

Agree erection, electrification, spreader connection and commissioning with representative containers or test loads. Include lock indication, travel limits and any automated-position checks in handover.

WARRANTY & SPARES

Know the warranty and support scope

The order defines duration, commencement and coverage for the crane, winch, spreader and controls. Include replacement parts and service responsibilities for twistlocks, cables, brakes and any position sensors.

RELATED CONTAINER-HANDLING EQUIPMENT

Compare container-yard equipment.

Review fixed rail-mounted and rubber-tyred arrangements for container-yard duties.

07 / BUYER QUESTIONS

Answers for your CQJ crane purchase

Find the arrangement, equipment options and order information that suit your application.

Is CQJ the same as a rail-mounted container gantry crane?

No. CQJ is an overhead bridge supported on elevated runway tracks. A rail-mounted gantry carries its bridge on ground-supported legs and uses a different structural and site layout.

What capacities and spans are available?

The CQJ family lists 30–65 t rated selections and 18–35 m spans. The actual capacity and span are quoted with the selected spreader, lift, duty and speeds.

Can a 30 t rating carry a 30 t loaded container?

Confirm the rating definition. The quotation should identify net container mass and the spreader/suspension weight, stating whether the rated value applies at the spreader or to the complete suspended load.

Can the same spreader lift every container length?

Only the sizes covered by the supplied spreader and locking arrangement are permitted. Provide the full container fleet so a fixed-size or adjustable arrangement can be selected.

How is the required lifting height calculated?

Start with pickup level, container height and required stack height, then allow for spreader depth and travel clearance. Nominal hoist travel alone does not define how many tiers the crane can stack.

Which controls should we choose?

Ground or radio control can suit visible working positions, while a cabin can provide another operating viewpoint. Select visibility, permitted operator positions and any camera or feedback functions for the actual bay.

Can CQJ be automated?

Automation can be configured for the defined handling process. Agree job positions, positioning requirements, spreader locking feedback, interlocks and site communication before selecting the controls.

Does the published speed range guarantee a certain moves-per-hour rate?

No. Throughput includes pickup, lock/unlock, hoisting, travel and placement. State the travel distances and loaded/empty cycle so the required transfers per hour can be evaluated.

Is this a standard ship-to-shore crane?

CQJ is selected around a fixed overhead handling bay. Outreach to a vessel, quay structure and marine operating requirements need a separate site-specific review or a dedicated ship-to-shore crane.

What determines the complete CQJ price?

Load rating, span, lift, spreader, speeds, controls and operating exposure define the package. Include runway/electrification, freight, installation and inspection scope so offers can be compared on the same basis.

08 / YOUR CQJ CRANE PROJECT
