Where it fits
Bulk material loading plus maintenance, equipment or packaged-load lifts in the same bay.
HENAN MINE CRANE / GRAB OVERHEAD CRANES
Grab-and-Hook Overhead Crane
Use one bridge for loose material and conventional lifts.
QEN combines grab handling with hook lifting for facilities that alternate between bulk cargo and equipment or packaged loads. Select the lifting arrangement, grab volume and control method around the way your operators change tasks.
QENModel designationProject-matchedRated load selection
PRODUCT CONFIGURATION / QENTHE LIFTING TASK
Designed for your handling path.
QEN combines grab handling with hook lifting for facilities that alternate between bulk cargo and equipment or packaged loads. Select the lifting arrangement, grab volume and control method around the way your operators change tasks.
Crane arrangement
Double-girder bridge with grab and hook functions.
MODEL QEN
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Rated capacity5/5–16/16 t configurations
Crane span10.5–50 m
Lifting height20–26 m
Duty classA6–A8
Hoisting speedHook lifting 40–42 m/min
Bridge / structureDouble-girder bridge with grab and hook functions
Power reference380 V, 50 Hz, 3-phase in listed configurations
ControlVariable-frequency control options
Protection / markingGrab volume 0.75–5.2 m³ in listed configurations
Runway and building interfaceCheck runway geometry, wheel loads and building reactions
Hook approach and clearanceConfirm required lifting envelope against the site drawings
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Bulk material loading plus maintenance, equipment or packaged-load lifts in the same bay.

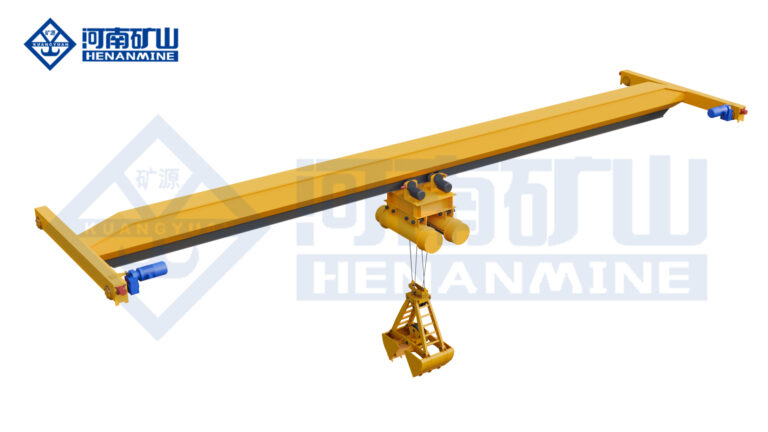

Compare the Grab Overhead Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Runway and building interface
Confirm runway centers, wheel loads, building clearances and hook approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Confirm whether grab and hook duties share a route, the heaviest load for each, and the time between task changes.

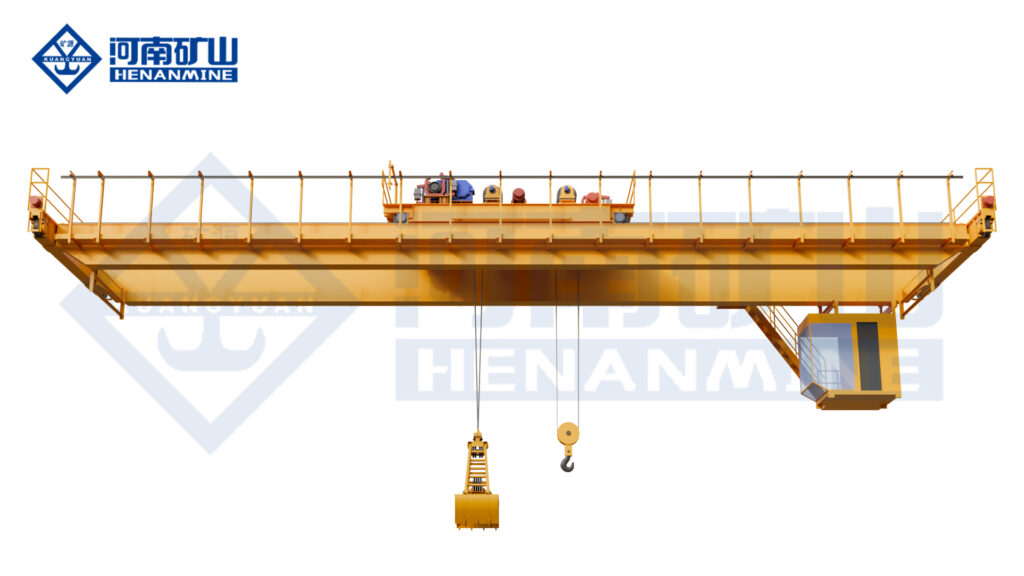

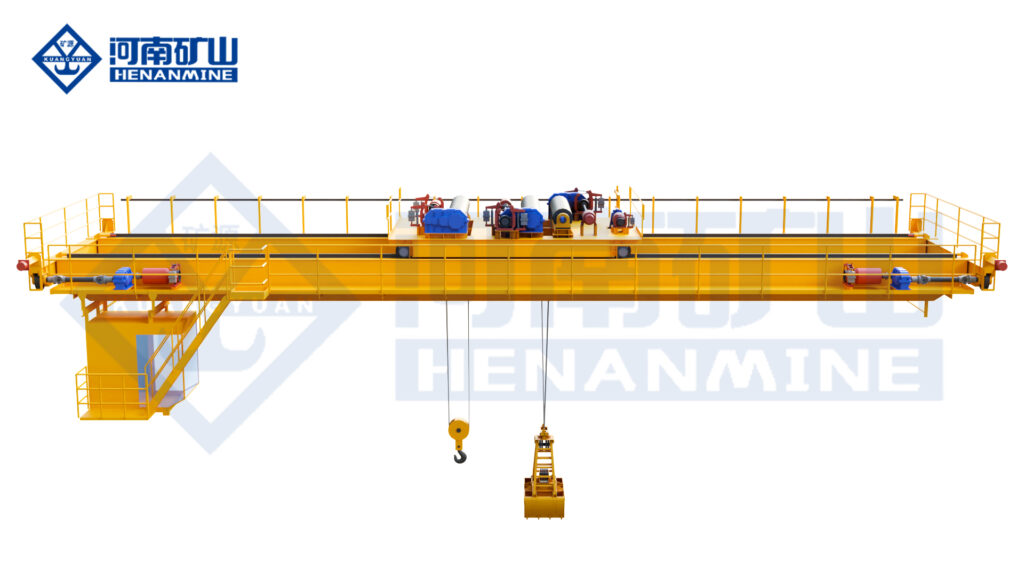

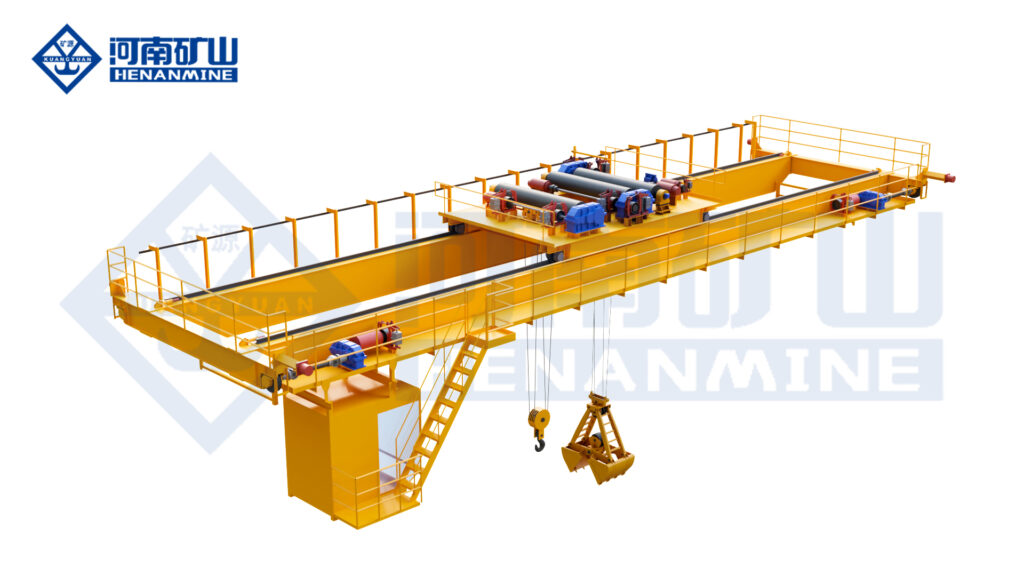

PRODUCT PHOTOS
See the QEN configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a QEN crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
