Where it fits
Ladle transfer and pouring in converter, smelting and foundry bays.
HENAN MINE CRANE / METALLURGICAL OVERHEAD CRANES
Metallurgical Overhead Crane
Reliable ladle movement across steelmaking operations.
The YZD metallurgical overhead crane carries ladles through smelting, transfer and pouring routes. Its forged-hook lifting arrangement and protected hoisting system are built around high-duty production near hot processes.
YZDModel designation5–200 tRated load selection
PRODUCT CONFIGURATION / YZDTHE LIFTING TASK
Designed for your handling path.
The YZD metallurgical overhead crane carries ladles through smelting, transfer and pouring routes. Its forged-hook lifting arrangement and protected hoisting system are built around high-duty production near hot processes.
Crane arrangement
Top-running bridge / single principal lifting point with Forged hook with gantry-type ladle attachment.
MODEL YZD
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Rated capacity5–200 t
Crane span10–35 m
Lifting height8–30 m
Duty classA6–A8
Hoisting speed0.1–4 m/min
Travel speed0.5–10 m/min
Bridge / structureTop-running bridge / single principal lifting point
Lifting systemForged hook with gantry-type ladle attachment
ControlVariable-frequency drives and load monitoring
Protection / markingHeat protection for structure, hoist and control equipment.
Power supplyMatch voltage and frequency to the destination site
Runway and building interfaceCheck runway geometry, wheel loads and building reactions
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Ladle transfer and pouring in converter, smelting and foundry bays.
Compare the Metallurgical Overhead Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Runway and building interface
Confirm runway centers, wheel loads, building clearances and hook approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Share loaded ladle mass, trunnion spacing, pouring route and daily cycles.

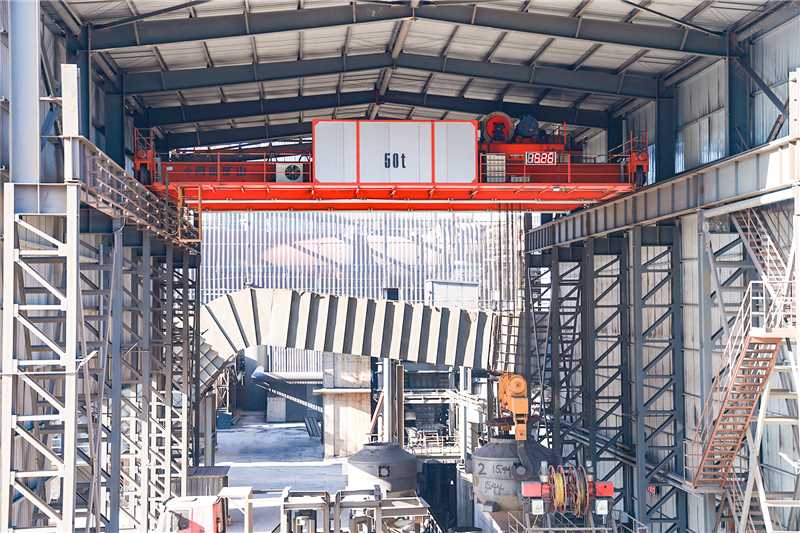

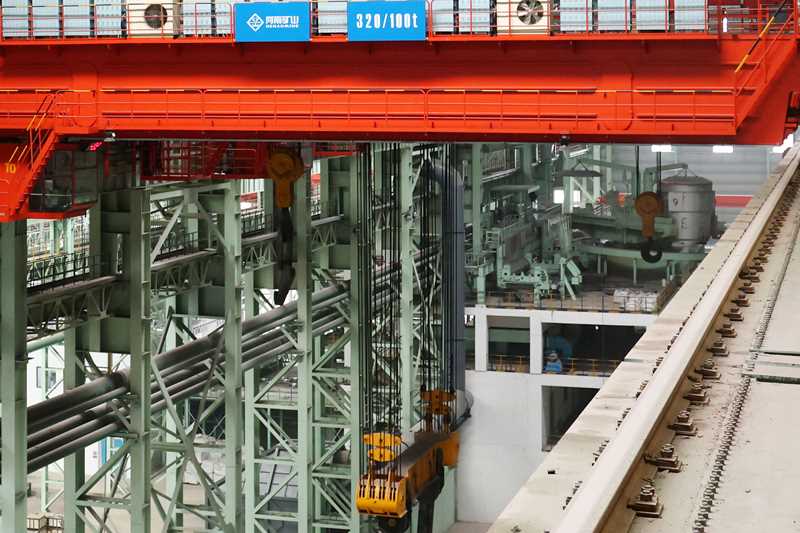

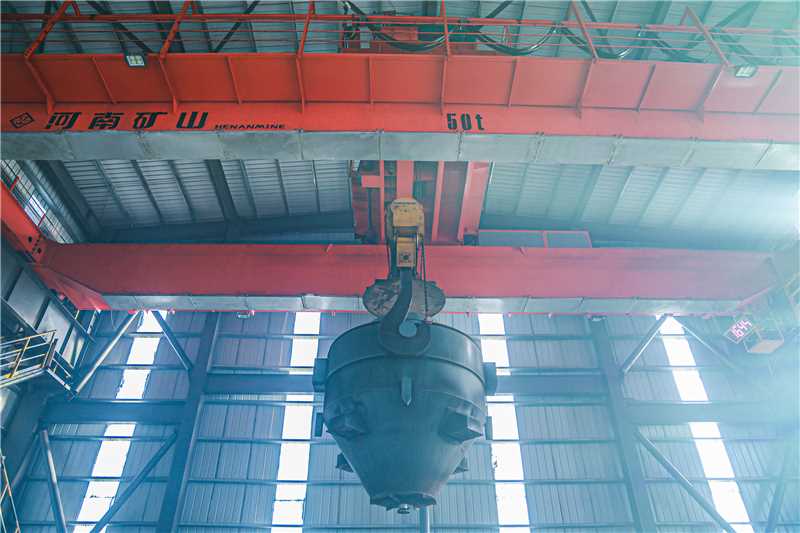

PRODUCT PHOTOS
See the YZD configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a YZD crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
