YZS Four-Girder Casting Crane

Give heavy ladle handling separate main and auxiliary lifting positions on a four-girder casting bridge. YZS uses independently travelling main and auxiliary trolleys, with their loads, spacing and permitted movements selected for the process. Compare nine A7 reference configurations, then coordinate the lifting attachments, hook envelope, runway reactions and safety controls as one engineered system.

Reference ratings
125/32 to 320/80 t
Bridge structure
Four girders
Trolley arrangement
Separate main + auxiliary
Reference duty
A7 paired configurations
Process-matched liftingDefined load & duty

Start with the information you already have. A load drawing and workshop sketch help us recommend a configuration.

01
Separate lifting positions for the task

The main and auxiliary trolleys travel separately on the four-girder bridge. Specify the load at each lifting point, required spacing and travel limits so their working envelopes serve the actual handling sequence.

02
Capacity-paired data for comparison

Nine reference rows retain main/auxiliary loads, span, lift, hoist and travel speeds, wheel load and rail together. Compare a complete row and identify project differences before accepting a crane proposal.

03
Crane and building interfaces developed together

Trolley positions change how loads reach the runway. A dimensioned arrangement and final wheel-reaction schedule let the building team check rails, supporting structure and clearances against the selected crane.

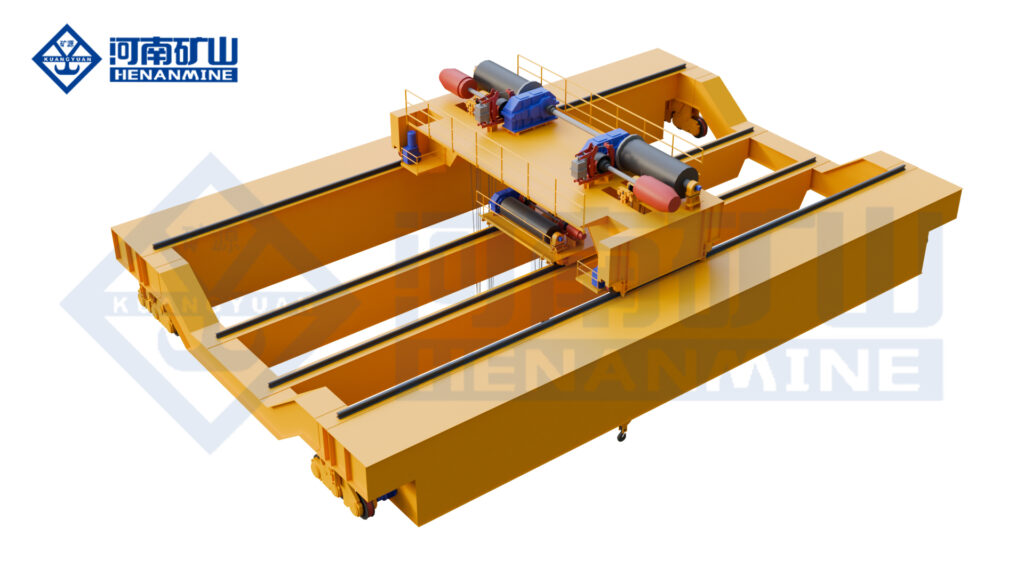

Red YZS casting-crane bridge with separate main and auxiliary trolleys inside a steelworks
YZS casting crane with main and auxiliary lifting arrangements in a steelworks.
01 / APPLICATIONS

Define the heavy-ladle route and both trolley duties.

01

Heavy ladle transfer

Move a compatible ladle between defined process positions using the selected main lifting arrangement. Supply the complete suspended mass, lifting interfaces and required clearances along the route.

02

Casting and pouring positions

Where the process requires auxiliary assistance, define the second lifting connection and how its trolley must approach the main load. The technical agreement establishes load limits and permitted coordinated movements.

03

New or upgraded steelmaking bays

Develop the crane envelope and runway interface alongside the plant layout. Review both trolley travel envelopes, wheel reactions, roof clearance and maintenance access before fixing the building or crane dimensions.

Confirm the full suspended load, ladle interface, permitted simultaneous movements, heat exposure and safety functions for the complete ordered crane.

02 / TECHNICAL SPECIFICATIONS

YZS specifications and matched configurations

Compare each load, span, lift and speed as one configuration. The technical agreement gives the selected crane and its permitted operating modes.

Rated capacity · YZS main / auxiliary configurations125/32 / 140/32 / 160/32 / 180/50 / 200/50 / 225/65 / 240/80 / 280/80 / 320/80 t
Crane span · reference configurations19 / 22 / 24.5 / 27 / 28 / 28.5 m; paired with specific capacities
Main lifting height · reference configurations22–32 m; confirm the capacity-specific table
Duty class · reference configurationsA7
Main hoisting speed · 125/32 / 140/32 / 160/32 t7.6 / 7.8 / 9.8 m/min
Main hoisting speed · 180/50 / 200/50 / 225/65 / 240/80 t7.5 / 6 / 11 / 7 m/min
Main hoisting speed · 280/80 / 320/80 t12 / 7.5 m/min
Catalogue power supplyThree-phase AC 380 V / 50 Hz
Structure / lifting systemFour-girder casting bridge with separate main and auxiliary lifting trolleys

Nine 125/32–320/80 t configurations are listed at A7 duty. Capacity, span, height and speed remain paired by configuration. Larger projects require a separate rated schedule.

The YZS matched configurations table below retains the capacity, span, lifting and travel values from each handbook configuration column.

YZS matched configurations

Main / aux load (t)Span (m)Main / aux lift (m)Main / aux hoist (m/min)Main / aux trolley (m/min)Bridge (m/min)Max wheel load (kN)Crane railWorking class
125/321924 / 267.6 / 9.738 / 3976505QU120A7
140/321922 / 247.8 / 9.736 / 37.573535QU120A7
160/322725 / 269.8 / 1243.5 / 43.584485QU120A7
180/5028.527 / 297.5 / 1040 / 3880525QU120A7
200/502826 / 266 / 1041 / 3878530QU120A7
225/652732 / 3411 / 1141 / 39.584550QU120A7
240/802225 / 277 / 9.635 / 3880545QU120A7
280/802229 / 2912 / 1040 / 4080735QU120A7
320/8024.528 / 327.5 / 1029 / 3958750QU120A7

Selection ranges and procurement checks

ParameterReference selection rangeProcurement check
Rated capacity · YZS main / auxiliary configurations125/32 / 140/32 / 160/32 / 180/50 / 200/50 / 225/65 / 240/80 / 280/80 / 320/80 tConfirm the selected configuration in the approved technical offer.
Crane span · reference configurations19 / 22 / 24.5 / 27 / 28 / 28.5 m; paired with specific capacitiesUse the value paired with the chosen capacity.
Main lifting height · reference configurations22–32 m; confirm the capacity-specific tableUse the value paired with the chosen capacity.
Duty class · reference configurationsA7Confirm the selected configuration in the approved technical offer.
Main hoisting speed · 125/32 / 140/32 / 160/32 t7.6 / 7.8 / 9.8 m/minUse the value paired with the chosen capacity.
Main hoisting speed · 180/50 / 200/50 / 225/65 / 240/80 t7.5 / 6 / 11 / 7 m/minUse the value paired with the chosen capacity.
Main hoisting speed · 280/80 / 320/80 t12 / 7.5 m/minUse the value paired with the chosen capacity.
Catalogue power supplyThree-phase AC 380 V / 50 HzConfirm the selected configuration in the approved technical offer.
Structure / lifting systemFour-girder casting bridge with separate main and auxiliary lifting trolleysConfirm the selected configuration in the approved technical offer.
03 / EQUIPMENT VIEWS

Review the four-girder bridge and separate trolley layout.

Use the equipment views to discuss bridge geometry and the two lifting positions. The ordered drawing must show the main and auxiliary trolley travel, minimum and required spacing, hook approaches, lifting-device envelope and clearances to the building. The final load schedule identifies the permitted operating cases and runway reactions.

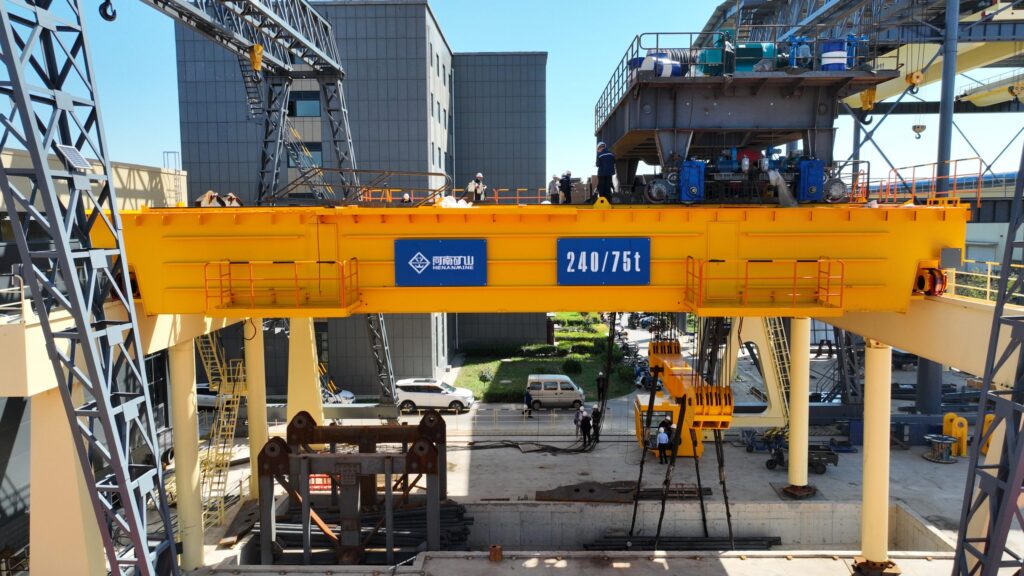

Yellow YZS four-girder casting-crane bridge, main trolley and hooks outside industrial buildings
YZS factory photograph showing the main trolley and main / auxiliary lifting arrangement.
Red YZS casting-crane bridge with separate main and auxiliary trolleys inside a steelworks
YZS casting crane with main and auxiliary lifting arrangements in a steelworks.
04 / CONFIGURATION

Configure YZS around your production task.

Keep every value in the matched YZS table attached to its original capacity pair. The nine A7 rows are reference configurations; any revised span, lift, speed, load or trolley arrangement needs a confirmed project schedule and runway-load assessment.

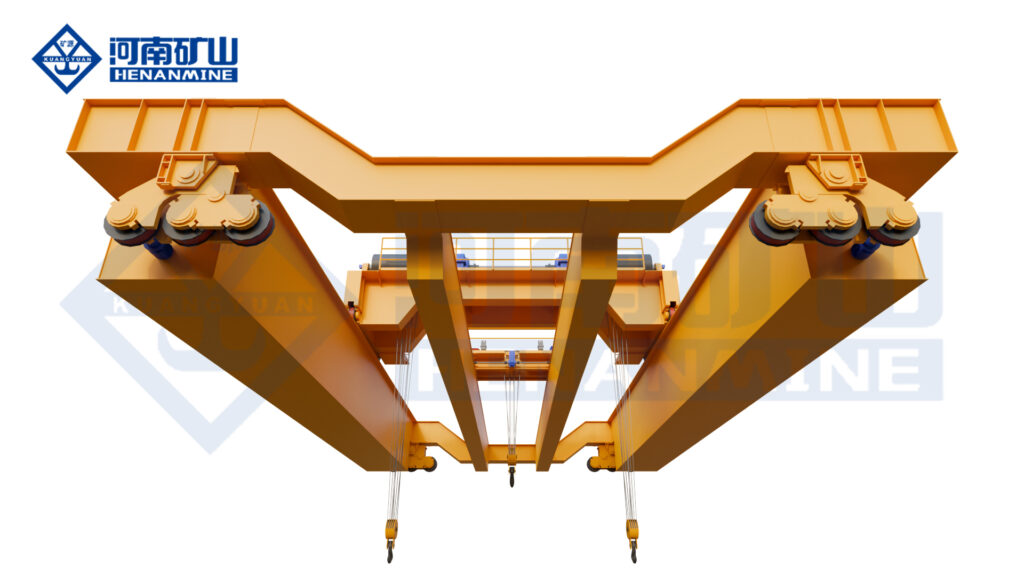

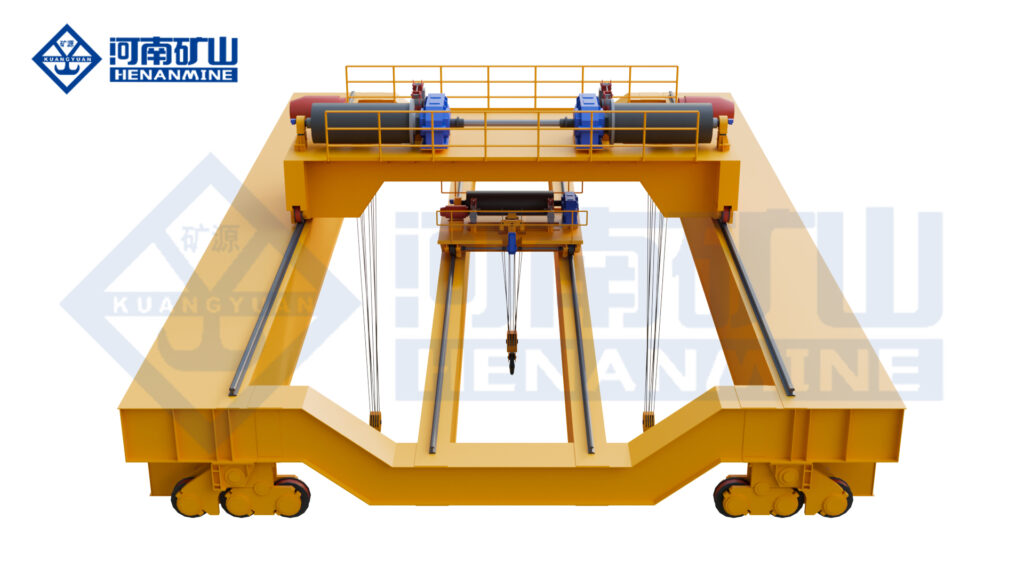

YZS four-girder casting crane with separate main and auxiliary trolleys, manufacturer rendering
Four-girder bridge and separate main / auxiliary trolley arrangement.
01 / SELECTION

Main and auxiliary load duties

List the load handled by each trolley, including the ladle, carrier, rigging and other suspended equipment. Define whether the functions operate separately or in an agreed coordinated sequence; their ratings do not create an additive or tandem capacity.

02 / SELECTION

Ladle and lifting-device interfaces

Provide ladle pickup dimensions, attachment drawings, connection spacing and centre-of-gravity information through the specified movement. Identify which lifting devices are supplied and how they connect to each hoisting function.

03 / SELECTION

Trolley spacing and working envelope

Show the required distance between lifting points, each trolley's travel limits, hook approaches and main/auxiliary lifting heights. Check station obstructions and maintenance clearances against the complete four-girder arrangement.

04 / SELECTION

Operating sequence and protection

Specify permitted simultaneous movements, travel restrictions and the required response to faults or power loss. The technical agreement defines braking, limits, overload functions, monitoring and interlocks for the selected process.

05 / SELECTION

Duty, heat and motion speeds

The listed references use A7 duty and 380 V / 50 Hz / three-phase power. State the actual load spectrum, cycles, ambient and radiant heat, supply and positioning needs so the offer identifies thermal protection and selected motion speeds.

06 / SELECTION

Wheel reactions and project interfaces

Request the final maximum wheel-reaction schedule for the specified trolley positions and operating cases. Coordinate runway rails, supporting steel, power feed, access and erection space; confirm the installation and commissioning responsibilities in the supply scope.

05 / PURCHASING & HANDOVER

Define the equipment,
documents and delivery scope.

Compare YZS offers against one approved load schedule, four-girder arrangement and operating sequence. Identify the two trolleys, lifting devices, protection and controls alongside the engineering, inspection, delivery and commissioning services included in the purchase.

Define the complete equipment package

Identify the bridge, lifting mechanisms, lifting attachment, heat protection, controls and power feed. State the selected operating modes and equipment boundaries in the offer.

Agree the drawings and acceptance evidence

Request the arrangement, lifting-interface drawing, load-and-motion schedule, electrical information, safety-function description and agreed factory/site checks for the ordered crane.

Make the price boundaries clear

List rails, runway steelwork, attachments, automation, weighing, spares, packing, freight, erection and commissioning as included, optional or excluded.

Coordinate delivery with the plant

Agree drawing approval, manufacturing, testing and dispatch milestones for the selected configuration. Include access, shutdown windows and the destination in the delivery plan.

Plan installation and process trials

Define erection supervision, power and runway preparation, protection checks, attachment fit, trial operation and operator training, with responsibilities agreed before site work.

Specify warranty, service and spare parts

Record the warranty terms and commencement, service arrangements and recommended brake, rope, drive, control and attachment spares for the equipment supplied.

01Technical alignment

Agree load, lifting device, route, duty, thermal conditions and operating modes.

02Approved arrangement

Coordinate hook coverage, attachment fit, runway reactions and site responsibilities.

03Factory checks & dispatch

Complete the agreed checks and records, then coordinate packing and shipment.

04Site handover

Confirm erection, commissioning, operator training and service arrangements.

DOCUMENTS TO AGREE

Technical schedule · General arrangement · Attachment interface · Runway loads · Electrical information · Safety-function description · Agreed inspection records · Operation and maintenance manuals

07 / PROCUREMENT QUESTIONS

Before you order
your YZS crane.

Review the lifting task, configuration and quotation scope. We can help develop a crane proposal from the project information available.

When should we consider a four-girder YZS crane?

Consider YZS where the process needs a four-girder casting bridge with separate main and auxiliary trolleys. Compare each lifting task, required trolley separation and travel, hook envelope, load distribution and building interface. The handling sequence determines whether this arrangement offers the right fit.

How does YZS differ from the YZ double-girder crane?

The YZS arrangement has four girders and separate main and auxiliary lifting trolleys. YZ is the double-girder casting arrangement with a gantry-type ladle carrier and auxiliary hook on its selected trolley layout. Compare complete systems using the ladle interfaces, required movements and runway reactions, rather than capacity alone.

Does 320/80 t mean the crane can lift 400 t?

No. It identifies separate 320 t main and 80 t auxiliary ratings. It does not authorize a 400 t combined lift. Any shared-load or coordinated operation requires an explicitly defined load case, load-sharing basis and approved operating arrangement in the technical agreement.

Can both trolleys move at the same time?

The permitted simultaneous movements must be defined for the selected crane and process. State the load on each trolley, their positions and intended sequence. The technical offer then identifies operating limits, controls and interlocks; separate trolley travel does not establish unrestricted coordinated use.

Which reference configurations are available to compare?

The table lists nine main/auxiliary pairs: 125/32, 140/32, 160/32, 180/50, 200/50, 225/65, 240/80, 280/80 and 320/80 t. Each row has its own span, lifts, speeds and wheel load. Keep these values paired rather than combining a load from one row with the dimensions of another.

Can we change a reference span or specify a larger crane?

A different load, span or lifting arrangement needs an individually confirmed technical schedule. Supply the complete suspended loads, station layout, trolley requirements and building information. The project proposal establishes the rated configuration and runway loads; the table does not define a universal capacity ceiling or unrestricted option range.

Why do we need trolley positions for the building review?

Load distribution changes as the main and auxiliary trolleys move. The maximum runway reaction may occur in an operating position different from the normal pickup point. Request the ordered crane's wheel-reaction schedule and load cases so the building team can check the rails and supporting structure against the actual arrangement.

What ladle and lifting-device information is needed?

Provide empty and filled ladle weights, each carrier or lifting-device weight, pickup dimensions, connection spacing and centre-of-gravity information. Include the handling sequence and required lifting-point spacing. These inputs establish the loads, interfaces and usable hook envelope for both trolleys.

Does the A7 table fully define our molten-metal duty?

No. A7 is the listed reference duty, while the complete operating cycle, load spectrum, thermal exposure, lifting devices and safety functions still need to be specified. The technical agreement defines the crane's intended molten-metal service, protective equipment and acceptance basis for that project.

What should a complete YZS quotation contain?

Request the four-girder layout, both trolley and lifting-device scopes, rated operating cases, wheel reactions, thermal and safety package, controls, tests and destination documents. The offer should also identify production and delivery milestones, installation and commissioning responsibilities, training, warranty terms and spares. Submit a one-unit or project-batch enquiry and have the written offer confirm the commercial scope.

GET A CONFIGURED QUOTATION

Request your YZS
technical proposal.

Send the complete ladle load, the task for each trolley and a sketch of the process stations. Add the ladle or lifting-device drawing and runway span if available so we can develop a matched four-girder arrangement.

  • Crane and lifting device matched to the load
  • Clear configuration and supply boundaries
  • Drawing, testing and site-support scope
