YZ / METALLURGICAL & PROCESS LIFTING

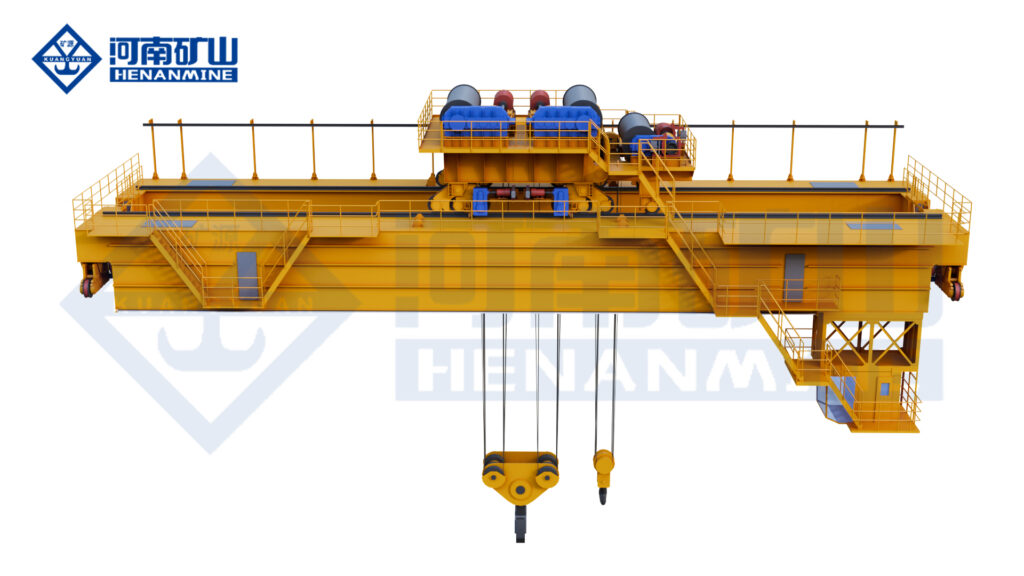

YZ Double Girder Casting Crane

Transfer filled ladles with a double-girder casting crane and separately rated auxiliary hook, configured for your pouring sequence.

Reference ratings
100/32 to 200/50 t
Bridge arrangement
Double girder casting crane
Main lifting interface
Gantry-type ladle carrier
Auxiliary function
Separate hook rating
Process-matched liftingDefined load & duty

Start with the information you already have. A load drawing and workshop sketch help us recommend a configuration.

01
A carrier matched to the ladle

Specify pickup spacing, connection dimensions, carrier mass and ladle balance together. These establish how the main lifting system connects to the vessel and how much complete suspended load the crane must carry.

02
Transfer and pouring defined together

Select the main and auxiliary lifting functions around their actual tasks. The reference package combines regulated hoisting with variable-frequency travel; the offer states the speeds and permitted movements needed at each station.

03
A common basis for crane and runway design

The matched configurations show load, span, lift and wheel load together. Use the ordered arrangement and load schedule to coordinate the carrier envelope, rail interface and supporting structure.

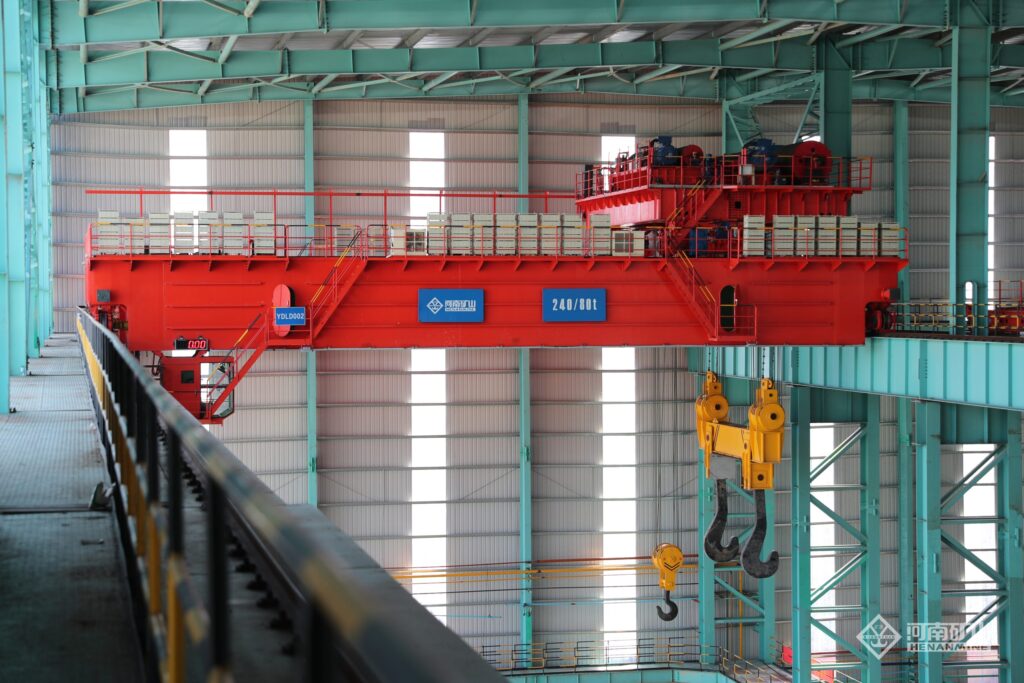

YZ casting-crane bridge and trolley inside a steelworks
YZ casting-crane bridge and trolley inside a steelworks
01 / APPLICATIONS

Connect ladle transfer, pouring and charging positions.

01

Steelmaking ladle transfer

Carry filled or empty ladles between defined production positions. Check the carrier-to-ladle fit, route clearance and station lifting levels alongside the gross suspended load.

02

Pouring and teeming stations

Position the ladle over the receiving point and specify the auxiliary hook's part in the pouring operation. The carrier geometry, tipping connection and permitted movement are selected as one handling arrangement.

03

Hot-metal charging and foundry service

Match the crane to charging or casting positions that require a compatible ladle carrier and auxiliary lifting function. State the approach clearances, process heat and repeat cycle the crane will encounter.

The main carrier and auxiliary hook have separate load limits. Their ratings are not additive, and any coordinated pouring movement is defined for the selected ladle and lifting geometry.

02 / TECHNICAL SPECIFICATIONS

YZ specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelYZ double girder casting overhead crane
Reference main / auxiliary ratings100/32, 125/32, 140/40, 160/50 and 200/50 t; other project ratings can be specified
Reference rail-centre spans19, 22 and 25 m; available combinations shown below
Reference main lifting heights18–25 m, according to combination
Reference auxiliary lifting heights20–27 m, according to combination
Working classA7 reference arrangement; duty matched to actual molten-metal cycle
Bridge / trolley formDouble girder bridge with main and auxiliary lifting functions on the selected trolley arrangement
Main load-handling deviceGantry-type ladle carrier matched to the ladle lifting interfaces
Auxiliary load-handling deviceHook for the specified auxiliary or ladle-tipping duty
Hoist controlStator-voltage speed regulation in the reference package; selected speeds stated in the offer
Travel controlVariable-frequency speed control; selected trolley and bridge speeds stated in the offer
Upper hoist protectionDual upper overtravel protection; final device arrangement specified in the safety schedule
ControlsPLC / HMI and master controller with zero-position return and locking
Thermal protectionMain/end-girder and selected component heat protection for the specified exposure
Reference maximum wheel load404–665 kN; combination and wheel arrangement dependent
Reference crane runway railQU120 for the listed combinations
Reference power supply380 V / 50 Hz / 3-phase AC; destination supply defined in the offer
Minimum order1 complete crane or a project batch

Compare model configurations

Main / aux load (t)Span (m)Max main lift (m)Max aux lift (m)Max wheel load (kN)Crane rail
100/32191820520QU120
100/32222022530QU120
100/32252527545QU120
125/32192426580QU120
125/32222022595QU120
140/40192325640QU120
140/40222325650QU120
140/40252325665QU120
160/50192426404QU120
160/50222426412QU120
160/50252426420QU120
200/50192426505QU120
200/50222426515QU120
200/50252426530QU120

A7 reference combinations with 380 V / 50 Hz / 3-phase AC. Main and auxiliary ratings are separate and not additive. Wheel loads depend on the wheel arrangement and load position; use the ordered layout for runway coordination. Hoist, trolley and bridge speed values and any modified dimensions are specified in the technical offer.

03 / EQUIPMENT VIEWS

Review the bridge, carrier and auxiliary lifting positions.

Compare the equipment views with your ladle drawing and process layout. The final general arrangement should identify carrier pickup spacing, hook positions, approach distances, service access and the dimensions required by the building team.

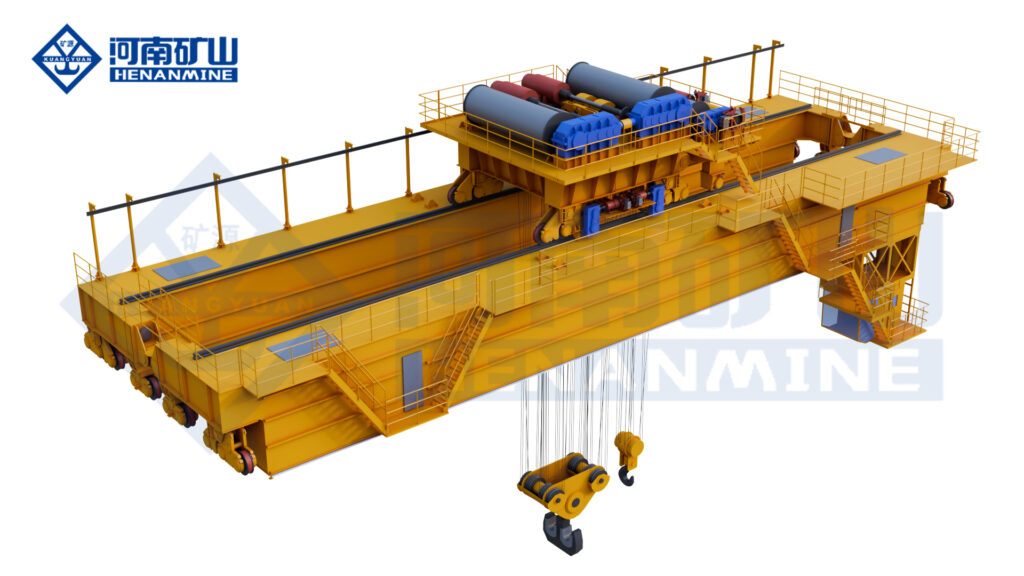

YZ casting-crane bridge with open winch trolley
YZ casting-crane bridge with open winch trolley
YZ bridge and main-hook suspension overview
YZ bridge and main-hook suspension overview
04 / CONFIGURATION

Configure YZ around your production task.

Compare the published paired load-and-span combinations as complete reference arrangements. Match the selected main and auxiliary heights, carrier geometry and wheel-load schedule to the station layout before releasing the crane for manufacture.

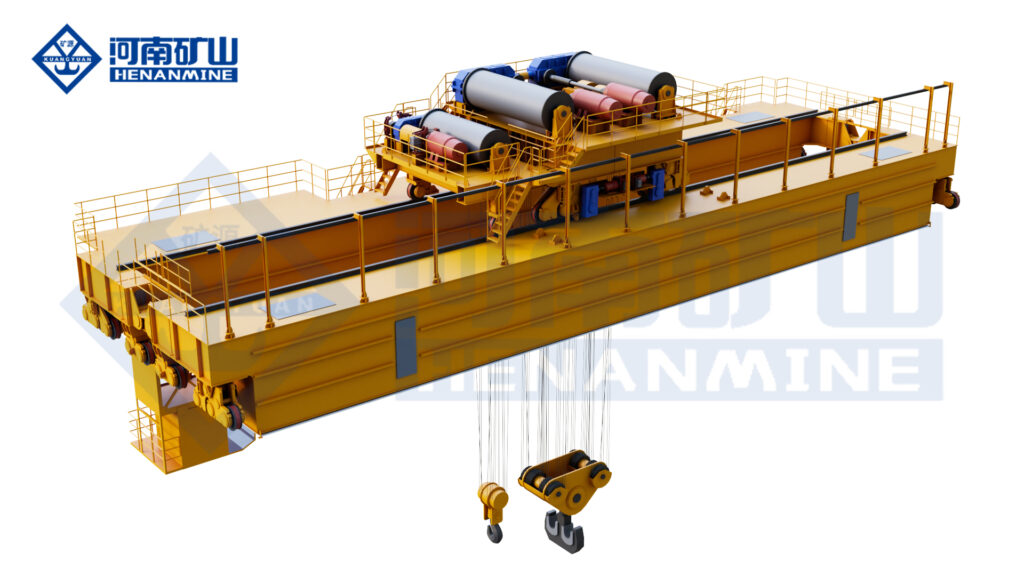

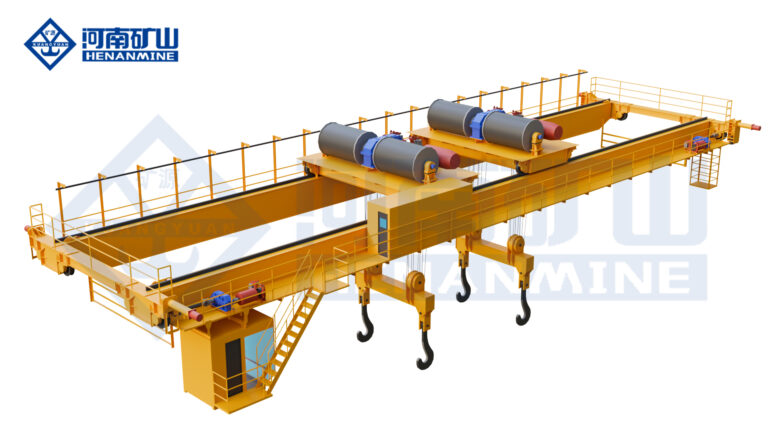

YZ casting-crane bridge and main and auxiliary hoisting arrangement
YZ casting-crane bridge and main and auxiliary hoisting arrangement
01 / SELECTION

Main rating and ladle carrier

Include metal, ladle, carrier and all suspended accessories. Provide the ladle lifting interfaces, pickup spacing and centre of gravity so the carrier and main hoisting arrangement can be dimensioned together.

02 / SELECTION

Auxiliary task and pouring geometry

Identify whether the auxiliary hook assists pouring, handles an empty ladle or performs another defined task. Its load, connection, travel and relationship to the main carrier must cover that movement without treating the two ratings as extra combined capacity.

03 / SELECTION

Station heights and hook approaches

Supply pickup, transfer, pouring and set-down levels with the surrounding obstructions. Confirm both lifting heights and horizontal approaches on the ordered arrangement, rather than selecting lift height from a family-wide range.

04 / SELECTION

Hoist and travel control

The reference arrangement uses stator-voltage hoist speed regulation and variable-frequency travel. Give required loaded speeds, approach behavior and cycle time so the offer defines actual speeds, operator controls and any alternative drive package.

05 / SELECTION

Heat protection and safety functions

Describe radiant heat, ambient conditions and exposure time. Specify the brake, dual upper overtravel protection, monitoring and control functions in a safety schedule matched to the intended molten-metal operation.

06 / SELECTION

Runway interface and service access

The listed configurations use QU120 runway rail, with wheel loads that depend on the selected arrangement. Request the final wheel-load and rail drawing, maintenance access and destination electrical supply for building and installation coordination.

05 / PURCHASING & HANDOVER

Define the equipment,
documents and delivery scope.

Request one itemized YZ scope covering the bridge, lifting arrangement, main ladle carrier, auxiliary hook, heat protection and controls. Include the required drawings, tests and site services so technical comparison and purchase approval use the same basis.

Define the complete equipment package

Identify the bridge, lifting mechanisms, lifting attachment, heat protection, controls and power feed. State the selected operating modes and equipment boundaries in the offer.

Agree the drawings and acceptance evidence

Request the arrangement, lifting-interface drawing, load-and-motion schedule, electrical information, safety-function description and agreed factory/site checks for the ordered crane.

Make the price boundaries clear

List rails, runway steelwork, attachments, automation, weighing, spares, packing, freight, erection and commissioning as included, optional or excluded.

Coordinate delivery with the plant

Agree drawing approval, manufacturing, testing and dispatch milestones for the selected configuration. Include access, shutdown windows and the destination in the delivery plan.

Plan installation and process trials

Define erection supervision, power and runway preparation, protection checks, attachment fit, trial operation and operator training, with responsibilities agreed before site work.

Specify warranty, service and spare parts

Record the warranty terms and commencement, service arrangements and recommended brake, rope, drive, control and attachment spares for the equipment supplied.

01Technical alignment

Agree load, lifting device, route, duty, thermal conditions and operating modes.

02Approved arrangement

Coordinate hook coverage, attachment fit, runway reactions and site responsibilities.

03Factory checks & dispatch

Complete the agreed checks and records, then coordinate packing and shipment.

04Site handover

Confirm erection, commissioning, operator training and service arrangements.

DOCUMENTS TO AGREE

Technical schedule · General arrangement · Attachment interface · Runway loads · Electrical information · Safety-function description · Agreed inspection records · Operation and maintenance manuals

07 / PROCUREMENT QUESTIONS

Before you order
your YZ crane.

Review the lifting task, configuration and quotation scope. We can help develop a crane proposal from the project information available.

What makes YZ a casting-crane arrangement?

YZ combines a double-girder bridge, gantry-type main ladle carrier and auxiliary hook for the specified ladle-transfer and casting task. The selected crane also needs the correct thermal, hoisting-safety and control package. State the complete molten-metal operation in the technical agreement.

How should we calculate the main lifting load?

Include the metal, empty ladle, carrier and every suspended attachment or accessory. A metal-production tonnage alone is not the crane's total suspended load. Supply the ladle interfaces and intended movements so the carrier and main rating can be checked together.

Does 200/50 t mean a 250 t lifting capacity?

No. It identifies a 200 t main rating and a separate 50 t auxiliary rating. It does not authorize a 250 t combined lift. Loads, operating positions and any coordinated use of the main and auxiliary functions require their own agreed arrangement.

What information is needed to size the ladle carrier?

Provide the ladle drawing, pickup or trunnion spacing, connection dimensions, empty and filled weights and centre-of-gravity information. Include the required handling and pouring movement. The carrier drawing should show how these interfaces connect to the main lifting system.

Can the auxiliary hook be used for pouring?

A compatible pouring arrangement can be specified. Give the ladle tipping connection, required rotation or movement and receiving-station layout. The auxiliary load, hook reach and relation to the main carrier are defined for that sequence; a separate hook rating alone does not establish the pouring geometry.

Which load and span combinations are shown?

The table lists 100/32, 125/32, 140/40, 160/50 and 200/50 t reference arrangements, with the span and main/auxiliary lift values paired in each row. The listed spans are 19, 22 or 25 m, depending on the arrangement. Other project ratings or dimensions need a confirmed technical schedule.

Why can a higher-capacity row have a lower wheel load?

The wheel system and load distribution can differ between arrangements. Wheel load therefore cannot be scaled directly from nominal capacity. Use the final crane layout, wheel arrangement and load positions to coordinate the runway and supporting structure.

Are the hoist speeds the same for every YZ arrangement?

No universal speed is stated for the whole family. The reference package uses stator-voltage hoist regulation and variable-frequency travel; the technical offer specifies selected hoist, trolley and bridge speeds. Describe your loaded travel, final approach and cycle requirements when requesting a quotation.

Should we choose YZ or YZS?

YZ is the double-girder casting arrangement. YZS uses four girders with separate main and auxiliary trolleys. Compare the ladle interfaces, two lifting functions, required trolley positions, building clearances and runway reactions as complete systems. Shared nominal tonnage is only one part of that decision.

What needs to be agreed before placing the order?

Confirm the complete suspended load, ladle carrier and auxiliary task, paired layout, heat and safety package, controls, wheel loads and acceptance tests. The written offer should also define equipment exclusions, destination documents, production milestones, installation support, warranty terms and spares. One complete crane or a project batch can be quoted.

GET A CONFIGURED QUOTATION

Request your YZ
technical proposal.

Send your filled-ladle weight, ladle drawing and approximate runway span. Tell us whether the auxiliary hook will assist pouring or serve another task, and include a bay sketch if the station heights are still being developed.
