ZJJB / CLEAN PROCESS AND HAZARDOUS-AREA LIFTING

ZJJB Cleanroom Explosion-Proof Overhead Crane

Move process equipment in a production room where contamination control and explosion protection both matter. ZJJB combines a double-girder lifting arrangement with enclosed mechanisms, anti-static surfaces and measures to collect wear debris. The crane, clean-process construction and protected equipment are selected together for your load and production conditions.

HELP CHOOSING YOUR CRANE

Tell us what you need to lift and your approximate span. We’ll help you choose the lifting arrangement.

Capacity selection envelope
1–32 t
Contamination control
Sealed / collected wear areas
Surface treatment
Anti-static coating
Motion control
Variable-frequency control
Cleanroom process liftingAnti-static surfacesProtected electrical package

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
Control contamination around the lifting route

Enclosed drive areas, sealed connections and debris-collection measures address the crane's moving and wearing components. Agree the features needed above your equipment and the access required to clean and service them.

02
Choose surfaces for the actual process

Select anti-static coatings, passivated stainless components, seals and lubricants around the cleaning method and process exposure. A named material and surface schedule makes competing quotations easier to compare.

03
Bring the acceptance scope into the offer

Define the room conditions and particle limits alongside the lifting tests and hazardous-area equipment requirements. The proposal can then identify the construction, documents and inspections included.

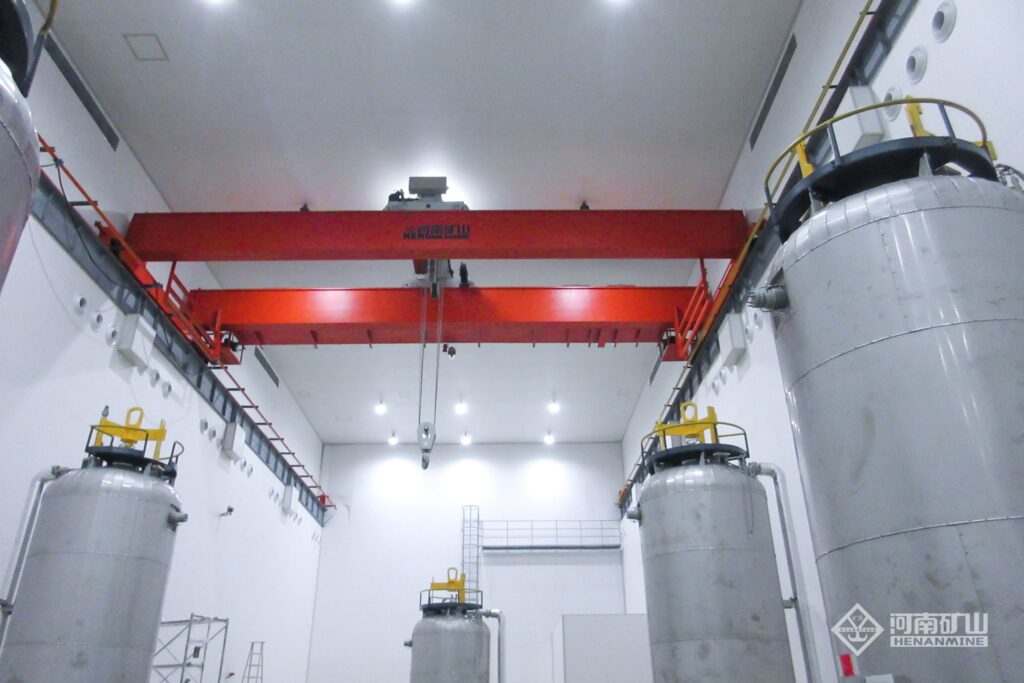

ZJJB overhead crane above processing vessels
ZJJB overhead crane above processing vessels
01 / APPLICATIONS

Lift process equipment without overlooking the room around it.

01

Semiconductor and materials production

Handle process tooling, equipment parts and carriers in controlled production rooms. Define particle limits, permissible materials and the hazardous medium alongside the lifting duty.

02

Precision chemical workshops

Move vessel components and handling fixtures where both classified-area equipment and contamination control are required. Match surfaces and seals to the cleaning method and chemical exposure.

03

Controlled equipment installation and maintenance

Lift equipment during process changeovers or maintenance within the specified room conditions. Plan access to collection devices, wear areas and drives without releasing uncontrolled debris into the production area.

The room’s cleanliness class and the crane’s explosion-protection specification are separate acceptance requirements. Neither is established by stainless components or an enclosure IP rating alone.

02 / TECHNICAL SPECIFICATIONS

ZJJB specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelZJJB
Capacity selection envelope1–32 t; custom load and attachment arrangement reviewed for the process
Reference span envelope7.5–28.5 m; final rail-centre span selected for the room
Reference lifting-height envelope6–20 m
Reference working-duty envelopeA3–A5; duty and mechanism selection matched to the operating cycle
Hoisting / travel speedsVFD-controlled motion; selected speeds and positioning requirements stated with the load and process
Cleanliness requirementRoom/process class and particle limits specified for the installation and acceptance conditions
Explosion protectionGas or dust configuration matched to the approved area specification
Mechanical measuresAnti-static treatment and spark-suppression measures for the relevant components
Surface coatingHigh-pressure anti-static coating; surface finish selected for cleaning and process exposure
Sealed areasCrane body, drive areas and connection gaps configured to reduce dust accumulation
Wear-debris measuresSelected corrosion-resistant materials with collection devices in relevant wear areas
Stainless componentsPassivated stainless hook, wheel or relevant contact-component configuration as specified
Lubricants and cleaningSelected for process restrictions, seal compatibility and maintenance procedure
ControlsProtected operator/control equipment selected for the area and process
Power supply380 V / 50 Hz reference; destination supply and protected electrical package specified with the order

Compare model configurations

Configuration itemSelection envelope / arrangementProcess value to confirm
Lifting capacity1–32 tEquipment, lifting fixture and complete suspended load
Span / usable liftReference 7.5–28.5 m / 6–20 mActual room geometry and required transfer levels
Crane dutyReference A3–A5 selection envelopeLoad spectrum, lifts per hour and shift pattern
Clean constructionEnclosed drives, sealed gaps and debris collectionParticle limits, permitted materials and cleaning method
Protected operationMatched gas or dust packageArea classification, medium, temperature requirement and document scope
Motion controlVFD-controlled lifting and travelSelected speeds and process positioning conditions

Reference ranges describe a ZJJB selection envelope, not interchangeable complete configurations. The final capacity, span, lift, duty, cleanliness and protected equipment are specified together.

Clean-process package and acceptance scope

Process requirementCrane provision to selectAcceptance information
Particle controlSealed drive/connection areas and wear-debris collectionOperating state, measuring positions and agreed particle limits
Cleaning and chemical exposureCompatible coating, seals, materials and lubricantsApproved cleaning method and exposure conditions
Static and ignition controlMechanical measures and protected electrical equipmentArea specification, marking schedule and matching documents
Maintenance accessService access to seals, brakes, drives and collection devicesCleaning, opening, reassembly and return-to-service procedure

Specify clean-process acceptance separately from crane load testing and hazardous-area inspection. A general cleanroom claim does not define a universal room class or zero particle emission.

03 / EQUIPMENT VIEWS

Review the sealed lifting system and clean-process arrangement.

Compare the protected lifting equipment, sealed drive areas and the proposed access for cleaning and maintenance. The material and surface schedule is selected for the actual process.

ZJJB overhead crane above processing vessels
ZJJB overhead crane above processing vessels
ZJJB enclosed lifting trolley between the bridge girders
ZJJB enclosed lifting trolley between the bridge girders
ZJJB crane and vessel arrangement inside a processing hall
ZJJB crane and vessel arrangement inside a processing hall
04 / CONFIGURATION

Match the crane to the process cleanliness and hazardous medium.

Choose the load and working coverage first, then agree the clean-process features, protected electrical and mechanical package, and controlled movements required at the equipment.

ZJJB bridge end and trolley view
ZJJB bridge end and trolley view
01 / OPTION

Cleanliness and contamination limits

State the room/process class, particle limits, cleaning method and any lubricant or material restrictions. Identify the operating conditions under which cleanliness will be assessed.

02 / OPTION

Surface and component materials

Agree anti-static coating, stainless/passivated components, sealed sections and collection devices. Specify corrosion exposure and the surfaces that must tolerate routine cleaning.

03 / OPTION

Protected electrical and mechanical equipment

Identify the gas, vapor or dust area specification, temperature requirements and destination documents. Select protection without treating cleanliness measures as a substitute for hazardous-area suitability.

04 / OPTION

Load and controlled motion

Provide the equipment weight, lifting fixture, transfer positions and handling cycle. Select lift and travel speeds for the process, then agree the final positioning and handover checks.

05 / PURCHASING & DELIVERY

What comes with your ZJJB crane?

Compare the crane, protected equipment and named clean-process features in your offer. Agree the material schedules, protection documents, acceptance tests, clean packaging and installation or commissioning services included for your process.

ORDER QUANTITY

Order the crane you need

Request one ZJJB crane or a process-line quantity. Include the cleanliness and hazardous-area specification for each installation.

QUOTATION

See the equipment included

List the crane, protected controls, sealed sections, special materials, coatings and debris-collection devices. Identify clean packaging, document/testing scope, freight, room-side installation and commissioning separately.

DOCUMENTS

Documents for your destination

Request arrangement and electrical drawings, material/coating and lubricant schedules, cleaning/maintenance instructions, protection-marking documents and the agreed cleanliness, inspection and load-test records.

DELIVERY

Plan production and dispatch

Schedule dispatch after the material/coating schedule, protected equipment and clean-process acceptance requirements are agreed. Include specialized components, factory inspection and packaging in the programme.

INSTALLATION

Installation and commissioning support

Define protected electrical installation and clean assembly/cleaning procedures. Agree lifting tests, motion checks, contamination-control assessment and the process owner’s acceptance conditions before handover.

WARRANTY & SPARES

Know the warranty and support scope

Agree warranty duration, commencement and coverage for the lifting equipment, protected controls, seals and supplied clean-process measures. Obtain the maintenance intervals and approved replacement specifications for collection devices, lubricants and wear parts.

07 / BUYER QUESTIONS

Answers for your ZJJB crane purchase

Find the arrangement, equipment options and order information that suit your application.

When should I choose ZJJB instead of a conventional explosion-proof crane?

Choose ZJJB when the lifting task must address contamination control as well as a classified atmosphere. Its clean-process construction includes enclosed or sealed areas, anti-static surfaces, selected materials and wear-debris collection, with the protected equipment selected for the stated hazard.

What capacity and room dimensions should I use for an initial enquiry?

The published ZJJB reference envelope is 1–32 t capacity, 7.5–28.5 m span and 6–20 m lifting height. Send the equipment and lifting-fixture weight, approximate room width and required hook travel so the dimensions, duty and clean-process package can be reviewed together.

How is the cleanroom requirement specified?

Share the room or process class, particle limits and conditions under which the crane will operate. The proposal should state the relevant construction and the agreed acceptance method, including operating state and measuring conditions, for that installation.

Which parts can be supplied in stainless steel?

Passivated stainless hooks, wheels and relevant contact components can be included as required by the selected arrangement. Agree a material schedule that identifies the supplied components, grades and finishes, together with the surfaces that need routine cleaning.

Can ZJJB be selected for a gas or combustible-dust area?

The protected package is selected against the area's stated gas or dust requirements. Include the available area classification, medium and temperature requirement so the offer can identify the hoist, drives, controls, mechanical measures and applicable documents.

Can the crane place equipment at a controlled approach speed?

ZJJB uses variable-frequency motion control. Describe the equipment, final approach and positioning task so lifting and travel speeds can be selected together with any additional control functions required by the process.

How do we choose coatings, seals and lubricants for the room?

Provide the cleaning method, chemical exposure and any material or lubricant restrictions. The proposal can then identify compatible surface finishes, seals, lubricants and selected corrosion-resistant components for the specified conditions.

How are cleaning and maintenance planned?

Agree access to drives, wear areas and debris-collection devices before the arrangement is finalized. The handover scope should include the cleaning, inspection, opening and reassembly procedures needed to return the crane to service in the controlled room.

What should the ZJJB quotation and handover package include?

Request the crane arrangement, protected equipment, named clean-process features, material/coating and lubricant schedules, operating instructions and agreed inspection records. Include clean packaging, freight, installation, commissioning, warranty and the applicable protection documents in the commercial scope.

08 / YOUR ZJJB CRANE PROJECT

Request a ZJJB crane proposal for your process.

Tell us what you need to move, your approximate span and hook travel, and the project country. Add the room/process requirements and area classification if available. We will help define the lifting arrangement and a quotation with a clear equipment and acceptance scope.

  • Configuration matched to your lifting task
  • Clear equipment and service scope
  • Delivery and support terms in your offer
