LHB / SEATED EXPLOSION-PROTECTED HOIST

LHB Explosion-Proof Electric-Hoist Overhead Crane

Put a compact protected lifting arrangement on a double-girder bridge. LHB uses an explosion-protected electric hoist seated on a trolley frame for equipment handling in classified production and service bays, with the hook height, hoist duty and area protection selected around your work.

HELP CHOOSING YOUR CRANE

Tell us what you need to lift and your approximate span. We’ll help you choose the lifting arrangement.

Capacity selection envelope
1–10 t
Span selection envelope
7.5–28.5 m
Lift selection envelope
6–20 m
Hoisting arrangement
Seated protected electric hoist
Low-headroom hoist trolleyGas or dust packageDouble-girder bridge

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
Compact seated-hoist arrangement

The protected electric hoist sits on the trolley frame. Review the available hook height and approach dimensions on the selected arrangement drawing to see how it serves your equipment.

02
Match the hoist to the working cycle

Choose the rated load, duty and lifting speed as one package. This keeps the hoist selection connected to lifts per hour, operating hours and time spent near rated load.

03
A defined hazardous-area package

Specify the hoist, travel drives, controls and associated protection measures together, with the gas or dust requirements and destination documents named in the offer.

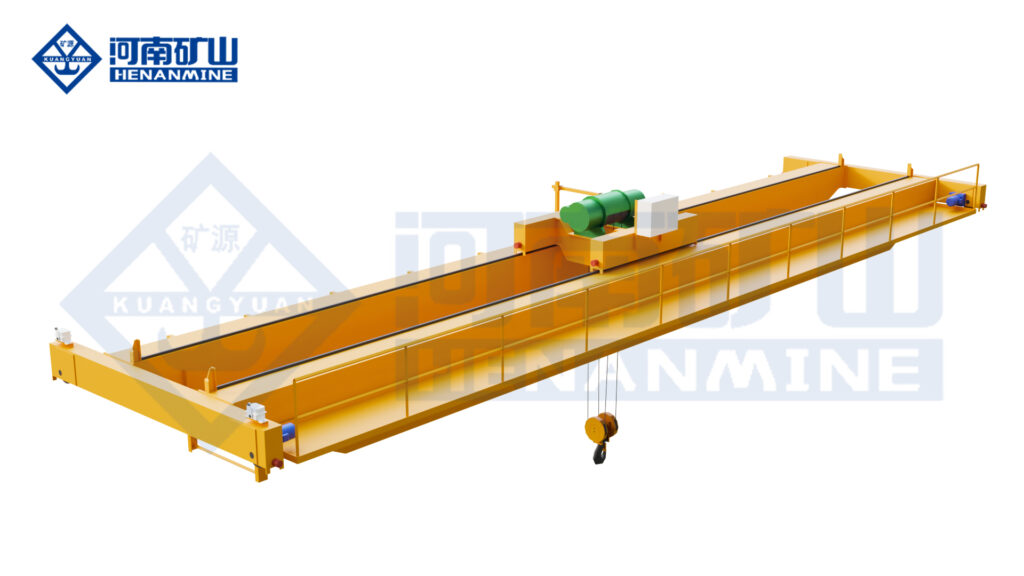

LHB electric-hoist trolley and bridge overview
LHB electric-hoist trolley and bridge overview
01 / APPLICATIONS

Compact lifting for classified production and service bays

01

Process-equipment installation

Lift pumps, vessel covers and components within a chemical production bay. Choose the usable hook travel around the largest item and its lifting fixture.

02

Petroleum and gas maintenance

Move service equipment between maintenance positions with a protected hoist and controls matched to the defined operating area.

03

Classified combustible-dust bays

Select a dust-specific equipment package for the identified material, temperature limits and accumulation conditions. Include the site's cleaning regime in the application information.

Gas and dust protection are separate selection requirements. A gas-protected hoist or an enclosure IP rating alone does not establish suitability for a combustible-dust area.

02 / TECHNICAL SPECIFICATIONS

LHB specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelLHB
Bridge / lifting platformDouble-girder bridge with seated explosion-protected electric hoist on a trolley frame
Capacity selection envelope1–10 t; other requirements reviewed with the lifting package
Span selection envelope7.5–28.5 m; extended spans by project design
Lifting-height selection envelope6–20 m
Working-duty selection envelopeA3–A5; hoist and crane duties selected for the actual operating cycle
Hoisting-speed selection envelope2–10 m/min; selected speed stated with capacity and hoist
Bridge travel selection envelope15–30 m/min; operating speed selected with protected drives
Trolley travelSelected with the protected hoist-trolley arrangement
Headroom arrangementLow-headroom seated hoist; final hook positions on arrangement drawing
Explosion protectionGas or dust package matched to the approved area classification
Gas selection dataHazardous medium, zone/group, temperature class and ambient conditions
Dust selection dataDust type/group, area classification and permitted surface temperature
ControlsProtected pendant or radio configuration selected for the area
Power supply380 V / 50 Hz reference; destination voltage and frequency configured with the order
Runway loadingCrane mass and wheel reactions supplied for the selected span and load

Compare model configurations

Selection itemLHB envelope / arrangementWhat is fixed in the quotation
Capacity1–10 t electric-hoist selectionsRated load, attachment allowance and selected hoist
Span and lift7.5–28.5 m span; 6–20 m liftOne agreed rail-centre span and usable hook travel
Duty and hoistingA3–A5; 2–10 m/min selection envelopeCrane/hoist duty and actual lifting speed together
TravelProtected trolley drives; 15–30 m/min bridge selection envelopeTrolley and bridge speeds, drive protection and controls
Hazardous areaGas or combustible-dust configurationMedium, area classification, group, temperature marking and document scope

These are LHB selection envelopes, not a matrix in which every capacity, span, duty and speed can be combined. The selected hoist and complete crane configuration determine the final values.

Choose the protection package for the operating area

Area requirementInformation to supplyPackage to identify
Explosive gas or vaporMedium, zone, gas group, temperature class and ambient temperatureProtected hoist, travel motors, controls, cable entries and mechanical measures
Combustible dustDust type, area classification, ignition/temperature data and accumulation conditionsDust-rated electrical/mechanical equipment and the agreed surface-temperature limits
Destination documentationApplicable project standard and required conformity routeEquipment list, markings, certificate schedules and inspection scope

State the required protection on the quotation and technical agreement. Gas marking, dust marking and an IP enclosure rating are not interchangeable.

03 / EQUIPMENT VIEWS

See the seated hoist and compact trolley arrangement.

Review the double-girder bridge, trolley-mounted hoist and protected drive arrangement. Installation views illustrate the selected equipment rather than a universal protection grade.

LHB electric-hoist trolley and bridge overview
LHB electric-hoist trolley and bridge overview

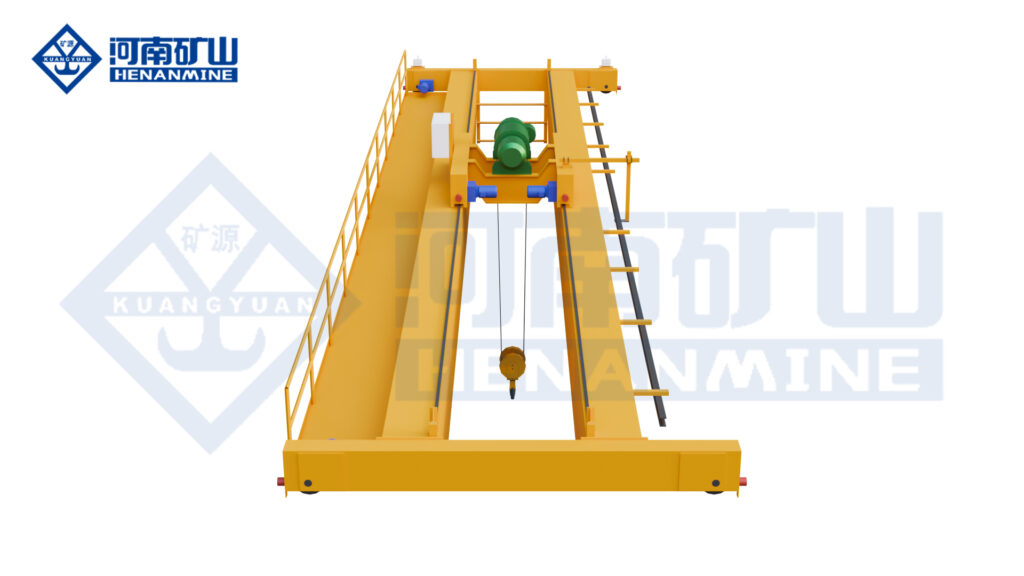

LHB bridge end and hoist arrangement
LHB bridge end and hoist arrangement
04 / CONFIGURATION

Choose a compact crane with the right protected hoist.

Start with the lifting task and area classification. Then match the hoist duty, bridge geometry and operator controls to the work.

LHB bridge end and hoist arrangement
LHB bridge end and hoist arrangement
01 / OPTION

Load and electric-hoist duty

State the largest load including lifting accessories, lifts per hour and time spent near rated capacity. Compare the selected hoist’s duty with the proposed production cycle.

02 / OPTION

Span and usable hook travel

Provide rail-centre span, pickup and placement heights and the largest component. The seated hoist arrangement is selected to suit the available overhead space.

03 / OPTION

Gas or dust configuration

Identify the hazardous medium, area classification, group, temperature requirement and ambient conditions. Confirm the full equipment marking and certificate scope for that package.

04 / OPTION

Protected controls and supply

Select pendant, radio or another control arrangement suitable for the operating area. Match voltage, frequency, cable systems and isolation points to the destination site.

05 / PURCHASING & DELIVERY

What comes with your LHB crane?

Request a clear scope for the double-girder bridge, seated hoist, trolley and protected controls, with the selected hoist duty, documents, delivery and site services identified in the offer.

ORDER QUANTITY

Order the crane you need

Request a single LHB crane or a workshop batch. State the required hoist rating and hazardous-area package for each unit.

QUOTATION

See the equipment included

Identify the bridge, seated hoist, trolley, travel drives and controls. Price the protected conductor/cable system, rails, freight, erection, commissioning and required documents as named items.

DOCUMENTS

Documents for your destination

Request the crane and hoist data, equipment marking schedule, relevant protected-component documents, wiring and arrangement drawings, manuals and agreed test records.

DELIVERY

Plan production and dispatch

Dispatch is scheduled after hoist selection, protected component availability, approved drawings and document requirements are settled. Separate production time from transport and site handover.

INSTALLATION

Installation and commissioning support

Agree assembly, protected electrical connections, earthing, inspection and load testing. Include technician attendance or remote guidance, local erection equipment and destination inspection responsibilities in the offer.

WARRANTY & SPARES

Know the warranty and support scope

The order states warranty duration, commencement and coverage for the bridge, hoist, travel drives and protected controls. Include hoist wear parts and the approved replacement-component list in the service information.

07 / BUYER QUESTIONS

Answers for your LHB crane purchase

Find the arrangement, equipment options and order information that suit your application.

How does LHB differ from a QB explosion-proof crane?

LHB uses an explosion-protected electric hoist seated on a trolley frame. The listed conventional QB selections use a protected winch-trolley lifting platform. Compare the load, working cycle, usable hook height and equipment package to choose the arrangement.

What does the 1–10 t reference range mean?

It is the LHB electric-hoist selection envelope. It does not mean every maximum span, lifting height, duty and speed is available together. The offer states one matched configuration; other requirements can be submitted for a separate lifting-package review.

Will the seated hoist give us more usable lifting height?

The compact arrangement is selected to use the available overhead space. Compare actual trolley height, hook approach and usable hook travel on the arrangement drawing for your bay rather than relying on a general low-headroom description.

How should I choose the working duty and lifting speed?

Provide lifts per hour, operating hours and typical loads. The reference envelopes are A3–A5 and 2–10 m/min, with the selected duty and speed stated together with the actual hoist and rated load.

Can an LHB package be selected for gas or combustible dust?

Yes, the package is selected for the identified application. Gas group and temperature class are considered for gas service; dust type, classification and permitted surface temperature are considered for dust service. Include both sets of requirements where both hazards exist.

Can the crane fit our existing rails and building?

Send the bay layout, rail profile and available runway information. The selected crane's arrangement and wheel reactions provide the data needed to assess the hook coverage, clearance and runway loading.

Can we choose radio operation?

A radio arrangement can be selected for the operating area. State where the operator will work so the transmitter, receiver, associated controls and their installation locations can be included in the equipment specification.

What should the quotation include for a fair comparison?

Compare the same bridge, seated hoist, trolley, travel drives, protected controls and power-feed scope. Ask for the selected ratings and speeds, equipment-marking schedule, drawings and required documents, with rails, freight and site services clearly identified.

Will ATEX or IECEx documentation be available?

State the destination and required conformity route at enquiry. The offer identifies the documents available for the selected equipment and configurations. The LHB model name or a protected motor alone does not establish the document scope for the complete crane.

08 / YOUR LHB CRANE PROJECT

Request your LHB crane quotation.

Tell us the equipment weight, approximate bay span and required lifting task. A photo, sketch or existing crane drawing is enough to start the discussion about an LHB arrangement.

  • Configuration matched to your lifting task
  • Clear equipment and service scope
  • Delivery and support terms in your offer

info@cranehenanmine.com

PRODUCT SELECTEDLHB Explosion-Proof Electric-Hoist Overhead Crane

If the lifting schedule or area documents are still being prepared, describe the process and send the information already available. The offer can list the remaining selection points.

↑
LHB explosion-proof hoist craneRequest your project quotation
Get a quotation ↗
