LB / HAZARDOUS-AREA LIFTING

LB Explosion-Proof Single Girder Overhead Crane

Handle pumps, motors and production equipment across a classified workshop with a compact single-girder crane. LB combines a top-running bridge with an explosion-protected electric wire-rope hoist, with 1–20 t capacity options and a protection package selected for your operating area.

HELP CHOOSING YOUR CRANE

Tell us what you need to lift and your approximate span. We’ll help you choose the crane and hoist configuration.

Capacity options
1–20 t
Span
6–30 m
Lifting height
6–24 m options
Arrangement
Top-running single girder
Explosion-protected hoistGas protection options

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
One hook for the working bay

Lift the load, move the hoist across the girder and travel along the runway to reach maintenance and production positions within the selected coverage.

02
Choose the positioning speed

Compare single-speed lifting with main-and-creep options when equipment needs a slower final approach. The selected hoist fixes the available capacity and speed pairing.

03
An offer you can compare

Request the bridge, hoist, protected travel drives and controls as a named package, with power feed, runway materials and installation support identified in the quotation.

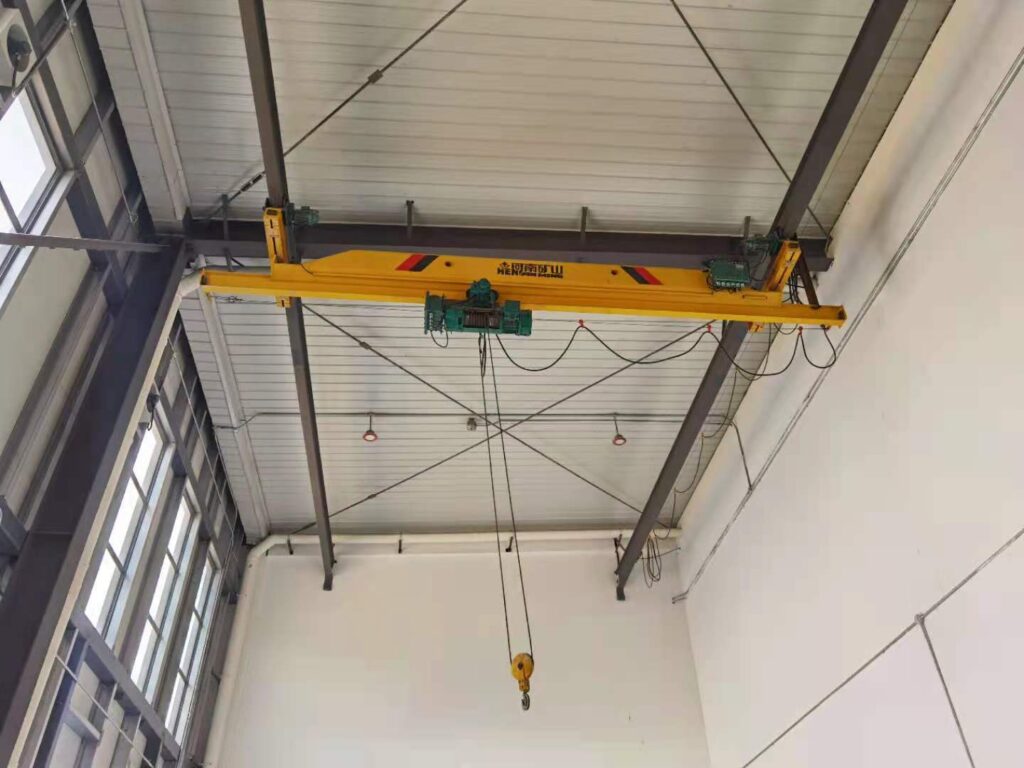

Single-girder bridge and electric wire-rope hoist installed above a workshop bay
Bridge and hoist installed above a workshop bay
01 / APPLICATIONS

Workshop lifting around process equipment

01

Chemical process maintenance

Move pumps, motors and vessel components between service positions in a classified process bay. Match hook travel to the equipment that must be removed and replaced.

02

Paint and solvent production

Handle production and maintenance loads with the hoist, controls and travel equipment selected for the specified gas or vapour area.

03

Oil and gas support workshops

Provide intermittent lifting for tools, components and service equipment where the bay classification calls for a protected crane package.

For a suspended runway arrangement, compare the LXB gas-protected crane. Dust applications use a dust-specific protection package.

02 / TECHNICAL SPECIFICATIONS

LB specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

Capacity options1, 2, 3, 5, 10, 16 or 20 t
Span range6–30 m
Lifting height options6, 9, 12, 18 or 24 m
Crane dutyA3; A4 configuration available
Hoist typeExplosion-proof electric wire rope hoist
Hoist model optionsHB / BCD / BMD
Single-speed lifting8, 7 or 3.5 m/min
Dual-speed lifting8/0.8, 7/0.7 or 3.5/0.35 m/min
Hoist cross travel20 m/min
Bridge long travel20 m/min
Power supply380 V, 50 Hz, 3-phase; export supply options
Gas explosion protection optionsEx d IIB T4 / Ex d IIC T4
Ambient temperature−20 to +40 °C
Crane wheel diameter270 or 370 mm
Rail head width37–70 mm
Control optionsWired pendant / remote control
Load handlingHook or application-specific lifting attachment
ApplicationIntermittent lifting in a classified hazardous area
03 / EQUIPMENT VIEWS

LB equipment and installed hoist views.

See the single-girder layout alongside installed bridge and hoist arrangements. The equipment specification identifies the protection package supplied with your crane.

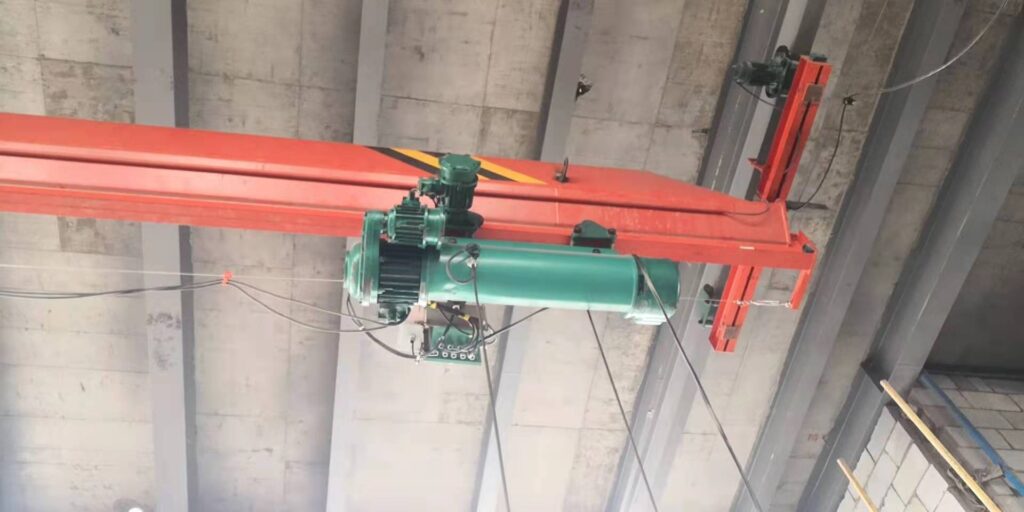

Single-girder bridge and electric wire-rope hoist installed above a workshop bay
Bridge and hoist installed above a workshop bay

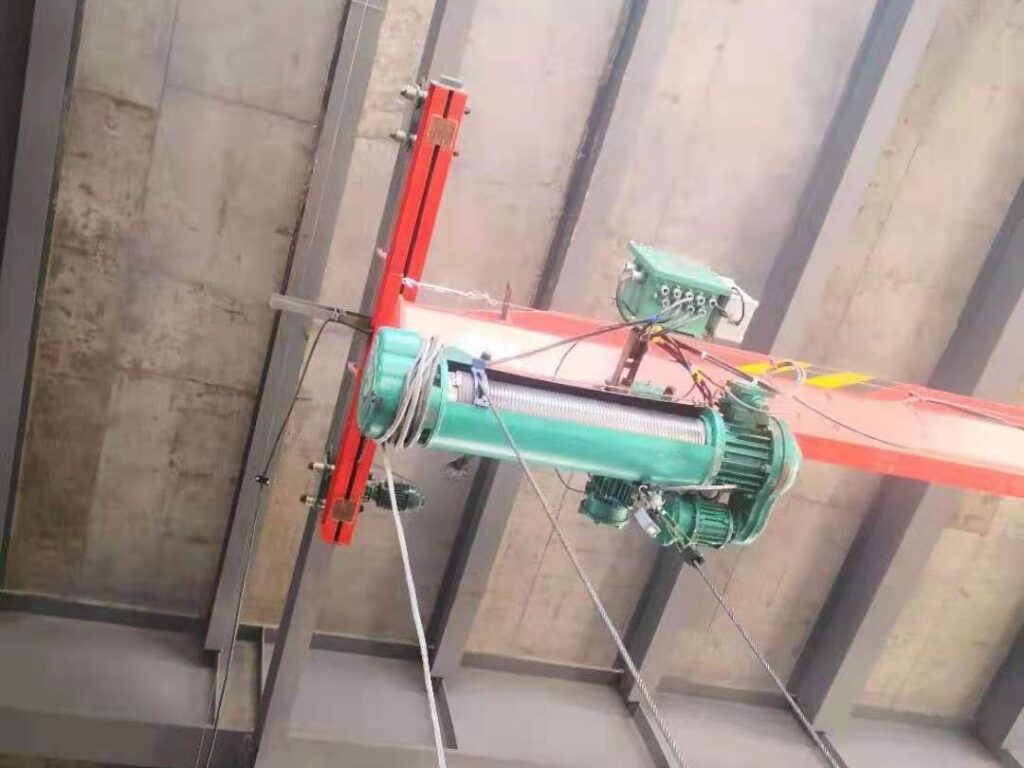

Installed wire-rope hoist and hook below a single-girder overhead crane
Installed hoist, hook and single-girder bridge
04 / CONFIGURATION

Choose the protection package and lifting options together.

Start with the load and hazardous-area classification. We can configure the bridge, lifting mechanism and controls around those requirements.

LB single-girder crane perspective view showing the bridge, end carriages and hoist
LB top-running single-girder arrangement — bridge and hoist perspective
01 / OPTION

Load and working dimensions

Select a rated capacity from the 1–20 t series, a span suited to your bay and the hook travel needed to reach each lifting position.

02 / OPTION

Gas-protection package

Ex d IIB T4 and Ex d IIC T4 options are available for suitable configurations. The supplied equipment marking follows the selected area classification.

03 / OPTION

Hoisting and positioning

HB, BCD or BMD hoist options provide single-speed or main-and-creep lifting. The hoist capacity determines the available speed pairing.

04 / OPTION

Control and power

Choose a suitable pendant or remote-control package. Voltage and frequency can be configured to the destination power supply.

05 / PURCHASING & DELIVERY

What comes with your LB crane?

Compare the single-girder bridge, selected hoist, protected controls and power-feed scope, then confirm the documents, delivery plan and support included with your LB crane.

ORDER QUANTITY

One crane or a workshop package

Single-crane enquiries are welcome. Request one unit or a coordinated package for several working bays.

QUOTATION

See the equipment included

Your offer lists the crane, hoist, controls and power feed, with runway materials, freight and installation services identified separately.

DOCUMENTS

Documents for your destination

Your quotation identifies the drawings, manuals and inspection documents available for the selected crane. Include any destination-specific conformity requirements.

DELIVERY

Delivery time in your quotation

Manufacturing lead time and dispatch dates are confirmed for your selected crane. Shipping time depends on the destination and transport plan.

INSTALLATION

Installation support

Share the installation location. We’ll discuss the guidance, commissioning and site assistance available for your project.

WARRANTY & SPARES

Warranty and spare parts

Your offer sets out the warranty period and coverage, together with spare-parts support for the selected hoist and travel drives.

07 / BUYER QUESTIONS

Answers for your LB crane purchase

Find the arrangement, equipment options and order information that suit your application.

When should I choose LB instead of a standard LD crane?

LB serves a classified hazardous area with a protected lifting and electrical package selected for that environment. LD is a general workshop crane. Compare the operating area as well as capacity, span and working cycle.

Which LB capacity and span options can I compare?

The series lists 1, 2, 3, 5, 10, 16 and 20 t capacity options and a 6–30 m span range. The quotation pairs one rated load with the span, lift, speed and duty selected for your workshop.

Is A4 duty included on every LB crane?

The handbook arrangement is A3, with an A4 configuration offered as an option. Tell us the load frequency and operating hours so the quotation states the required crane and hoist duties.

What is the benefit of a dual-speed hoist?

The slower speed supports the final approach when positioning equipment. The listed main-and-creep pairs are 8/0.8, 7/0.7 or 3.5/0.35 m/min; the applicable pair depends on the selected hoist and capacity.

Does an IIB or IIC gas option also cover combustible dust?

Gas and dust require separate equipment selections. State the medium and area classification so the offer identifies the required protection package, temperature conditions and associated documents. If both hazards are present, include both in the enquiry.

Can LB use our existing runway?

Share the rail profile, span, runway layout and available structural information. The selected crane's wheel loads and arrangement data allow your building team to assess the existing runway. A bay sketch is useful for the initial enquiry.

Can I specify radio control or a different power supply?

Pendant and remote-control options are available. State the operator locations, area specification, voltage and frequency so the controls and electrical package can be selected together.

What documents can be included for our destination?

Identify the required approval or conformity route when requesting a quotation. The offer will state the arrangement drawings, manuals, equipment markings, relevant conformity documents and agreed inspection records for the selected package. ATEX or IECEx status depends on the actual equipment and document scope.

Can I request a quotation before all dimensions are confirmed?

Yes. Start with the load, approximate bay width, application and destination. Add a photo or sketch if available. The offer can then identify the selected arrangement, included equipment and dimensions that need confirmation.

08 / YOUR LB CRANE PROJECT

Request your LB crane quotation.

Send the load you need to lift, your approximate span and project location. We can begin with a workshop sketch or photo and identify the remaining information with you.

  • Configuration matched to your lifting task
  • Clear equipment and service scope
  • Delivery and support terms in your offer
