QY / ELECTRICAL ISOLATION FOR PROCESS LIFTING

QY Insulated Overhead Crane

Move process equipment and materials in electrolytic and non-ferrous metal workshops with an overhead crane designed to interrupt unwanted electrical conduction through the lifting system. QY combines a double girder bridge, insulated load-path interfaces and controlled hook movement. Choose a 5 or 10 t single-hook arrangement, a 16/3.2 or 20/5 t main-and-auxiliary arrangement, or a configuration matched to your process.

HELP CHOOSING YOUR CRANE

Tell us what you need to lift and your approximate span. We’ll help you choose the lifting arrangement.

Rated-load options
5 / 10 / 16/3.2 / 20/5 t
Rail-centre span
10.5–31.5 m
Standard duty
A6 configurations
Core function
Insulated lifting load path
Electrolytic workshopsInsulating pads, sleeves & plates

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
Separate the process current from the crane

Insulating pads, sleeves and plates at defined interfaces interrupt the conductive load path between the handled equipment and crane structure.

02
Match the hook to the handling task

Single-hook and main/auxiliary-hook configurations provide different load and lifting-height options for process equipment, maintenance and material transfer.

03
Control placement near process equipment

Select a motion-control package for smooth lifting and travel. Low-speed approach or variable-frequency control can be specified for accurate placement.

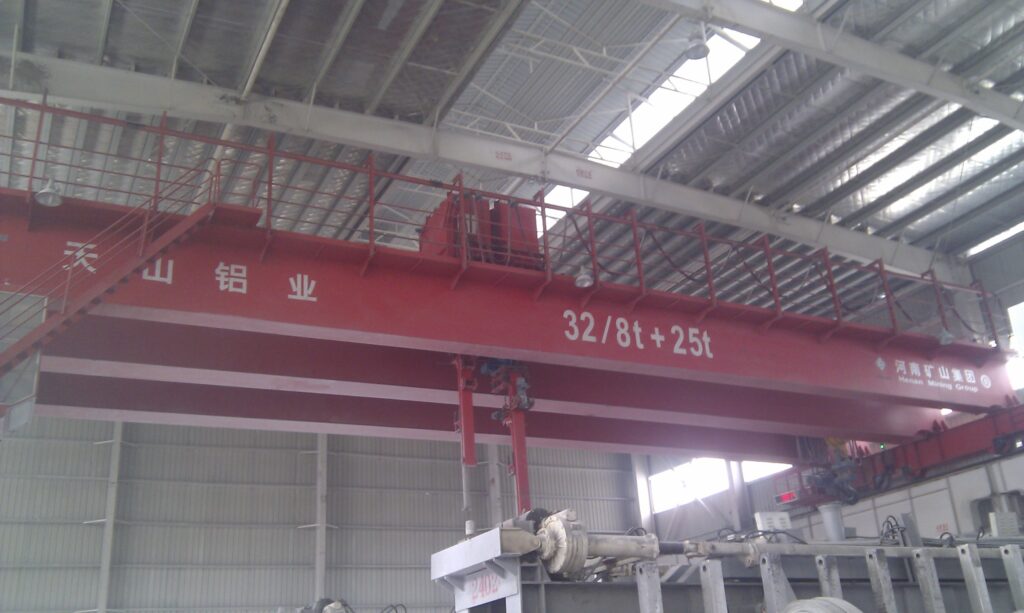

QY red overhead bridge installed in a workshop
QY red overhead bridge installed in a workshop
01 / APPLICATIONS

Insulated hook lifting around electrolytic production.

01

Non-ferrous electrolysis workshops

Lift suitable process materials and equipment in aluminum, magnesium and other non-ferrous electrolytic workshops where process current must be isolated from the crane.

02

Cell and process-equipment maintenance

Move maintenance components, fixtures and equipment between service positions. Match insulation to the electrical interfaces the load can contact.

03

Controlled material transfer

Transfer loads between operating and storage positions within the bay. Select corrosion and heat protection for the actual fumes, dust and radiant-heat exposure.

QY is an insulated process crane. Electrical isolation and the operating envelope are specified for the installation; the crane is not a general authorization for live high-voltage work.

02 / TECHNICAL SPECIFICATIONS

QY specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelQY
Bridge arrangementDouble girder, top-running overhead bridge
Standard rated loads5 t; 10 t; 16/3.2 t; 20/5 t
Standard spans10.5, 13.5, 16.5, 19.5, 22.5, 25.5, 28.5 and 31.5 m
Maximum lifting height5 and 10 t: 16 m; 16/3.2 t: main 16 m / aux 18 m; 20/5 t: main 12 m / aux 14 m
Working classA6 for the listed configurations
Hoisting speeds5 t: 15.6; 10 t: 10.4; 16/3.2 t: 10.7/14.6; 20/5 t: 9.8/15.5 m/min
Trolley speeds5 t: 37.2; 10 t: 43.8; 16/3.2 and 20/5 t: 44.6 m/min
Bridge speeds76–93.7 m/min; see the exact load/span row below
Electrical isolationInsulating pads, sleeves and plates at defined load-path interfaces
Insulation acceptanceTest values, method and inspection points specified for the process
Motion-control optionsSpeed control and positioning selected for the handling cycle
EnvironmentElectrolytic/non-ferrous process service; heat and corrosion protection specified for exposure
Power supplyListed configurations: 380 V, 50 Hz, three-phase; destination alternatives by specification
Rail and wheel loadConfiguration-specific values shown below
Custom configurationCapacity, hook arrangement and motion package matched to the required process

Compare model configurations

Rated load, main / aux (t)Span (m)Max lift, main / aux (m)Hoist, main / aux (m/min)Trolley (m/min)Bridge (m/min)Max wheel load (kN)Recommended rail
510.51615.637.292.785P38
513.51615.637.292.791P38
516.51615.637.292.792P38
519.51615.637.292.7104P38
522.51615.637.292.7111P38
525.51615.637.293.7125P38
528.51615.637.293.7133P38
531.51615.637.293.7138P38
1010.51610.443.892.7111P43
1013.51610.443.892.7118P43
1016.51610.443.892.7126P43
1019.51610.443.893.7131P43
1022.51610.443.893.7138P43
1025.51610.443.886.5154P43
1028.51610.443.886.5163P43
1031.51610.443.886.5171P43
16 / 3.210.516 / 1810.7 / 14.644.676155P43 / QU70
16 / 3.213.516 / 1810.7 / 14.644.676164P43 / QU70
16 / 3.216.516 / 1810.7 / 14.644.676173P43 / QU70
16 / 3.219.516 / 1810.7 / 14.644.689194P43 / QU70
16 / 3.222.516 / 1810.7 / 14.644.689203P43 / QU70
16 / 3.225.516 / 1810.7 / 14.644.689214P43 / QU70
16 / 3.228.516 / 1810.7 / 14.644.689223P43 / QU70
16 / 3.231.516 / 1810.7 / 14.644.689232P43 / QU70
20 / 510.512 / 149.8 / 15.544.676177P43 / QU70
20 / 513.512 / 149.8 / 15.544.676188P43 / QU70
20 / 516.512 / 149.8 / 15.544.676199P43 / QU70
20 / 519.512 / 149.8 / 15.544.689221P43 / QU70
20 / 522.512 / 149.8 / 15.544.689233P43 / QU70
20 / 525.512 / 149.8 / 15.544.689243P43 / QU70
20 / 528.512 / 149.8 / 15.544.689255P43 / QU70
20 / 531.512 / 149.8 / 15.544.689265P43 / QU70

All rows are A6 configurations with standard 380 V / 50 Hz / three-phase supply. A slash separates main/auxiliary hook values, not a tandem rating. Speeds, rail and wheel loads belong to the complete row; custom cranes receive their own approved specification.

03 / EQUIPMENT VIEWS

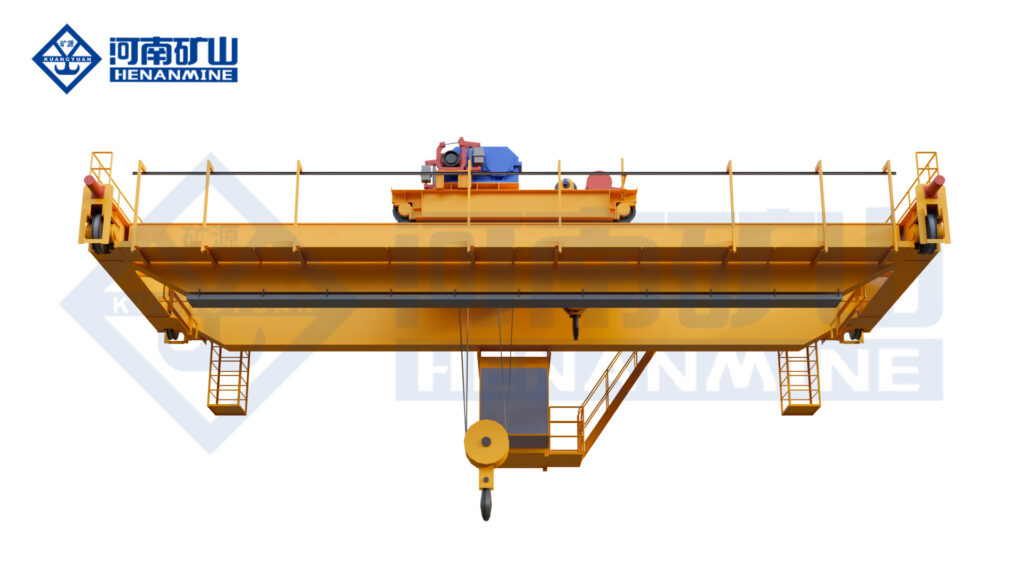

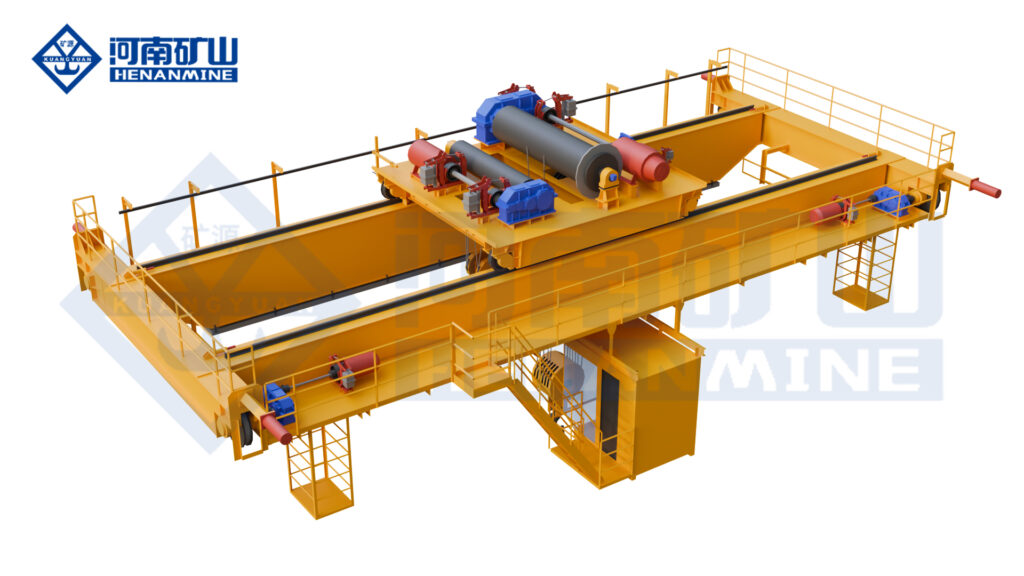

See the hook trolley and insulated lifting arrangement.

Compare the double girder bridge and hook layout. The ordered arrangement identifies hook positions and the interfaces included in the electrical isolation system.

QY red overhead bridge installed in a workshop
QY red overhead bridge installed in a workshop
04 / CONFIGURATION

Match the load and isolation to your workshop.

Send the maximum suspended load, span and required hook travel with the process electrical conditions. The crane and insulation package are selected as one system.

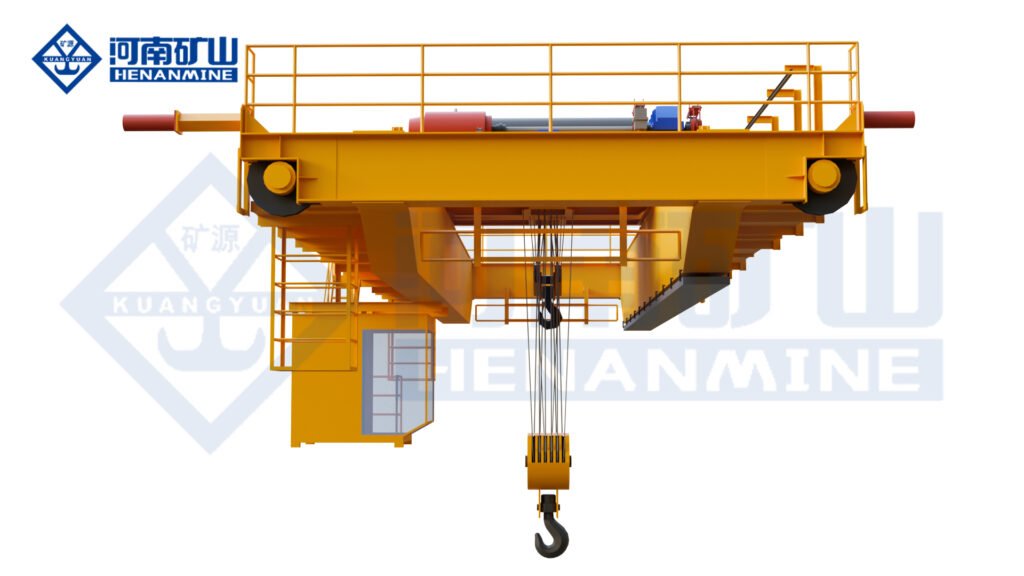

QY bridge end and hook arrangement
QY bridge end and hook arrangement
01 / OPTION

Single hook or main/auxiliary hooks

Choose 5 or 10 t for one lifting function, or 16/3.2 and 20/5 t where a separate auxiliary hook is useful. Hook ratings are stated separately.

02 / OPTION

Electrical isolation and testing

Identify process voltage, possible current paths and insulation acceptance requirements. The offer specifies isolation interfaces, materials and test criteria.

03 / OPTION

Heat, dust and corrosion

Distinguish ambient temperature from handled-material temperature. Match protective coatings, insulating components and heat protection to the actual exposure.

04 / OPTION

Speeds and operating position

Compare the listed A6 combinations. Select any VFD or positioning functions, cabin or remote control and destination power supply for the handling cycle.

05 / PURCHASING & DELIVERY

What comes with your QY crane?

Compare the equipment, documentation, delivery and service scope for the configuration you need.

ORDER QUANTITY

Order the crane you need

One complete QY crane or a project batch; hook rating and quantity are listed in the offer.

QUOTATION

See the equipment included

Itemize bridge, trolley, hook set, insulation components, controls, power feed, testing, packing and any runway, freight, installation or spares.

DOCUMENTS

Documents for your destination

Request arrangement and insulation-interface drawings, hook ratings, insulation/functional test records, electrical drawings, manuals and destination compliance documents.

DELIVERY

Plan production and dispatch

The quotation confirms production and dispatch dates after configuration, insulation tests and drawings are agreed. Freight and site commissioning are scheduled separately.

INSTALLATION

Installation and commissioning support

Specify erection, power connection, functional tests and site insulation acceptance. Remote guidance or agreed on-site support can be included.

WARRANTY & SPARES

Know the warranty and support scope

Purchase terms state warranty duration, commencement, covered crane/insulation components, exclusions and service support. Replacement insulation parts and inspection support can be included.

07 / BUYER QUESTIONS

Answers for your QY crane purchase

Find the arrangement, equipment options and order information that suit your application.

Where is a QY insulated crane used?

QY is intended for industrial processes where a suspended load can provide an electrical current path, particularly non-ferrous electrolysis and associated metallurgical workshops. Insulation is selected for the process as well as the lifting load.

Which QY capacities can I compare here?

The listed A6 combinations are 5 t, 10 t, 16/3.2 t and 20/5 t over 10.5–31.5 m spans. The larger two provide main and auxiliary hooks. Other loads or configurations can be reviewed.

What does 16/3.2 t mean?

It identifies a 16 t main hook and a 3.2 t auxiliary hook, not a 19.2 t tandem rating. Permitted use of both hooks together is defined for the ordered crane.

Which parts provide electrical insulation?

Insulating pads, sleeves and plates isolate specified interfaces in the lifting and mechanical connection path. The supplied drawing identifies the isolation points; acceptance documents state the test requirements.

Does insulation make live high-voltage maintenance automatically permissible?

No. QY provides specified industrial electrical isolation. Plant electrical conditions and operating procedures determine permitted work; the crane does not replace a live-work access platform or plant electrical safety system.

Can I request lower speeds or VFD control?

Yes. A speed-control package can be selected for approach, positioning and transfer. State the normal travel distance and placement speed so the hoisting and travel drives match the cycle.

Can QY operate near heat or corrosive fumes?

Protection can be specified for the actual exposure. Provide ambient and material temperatures, heat-source distance and process medium so insulation and mechanical/electrical protection are selected correctly.

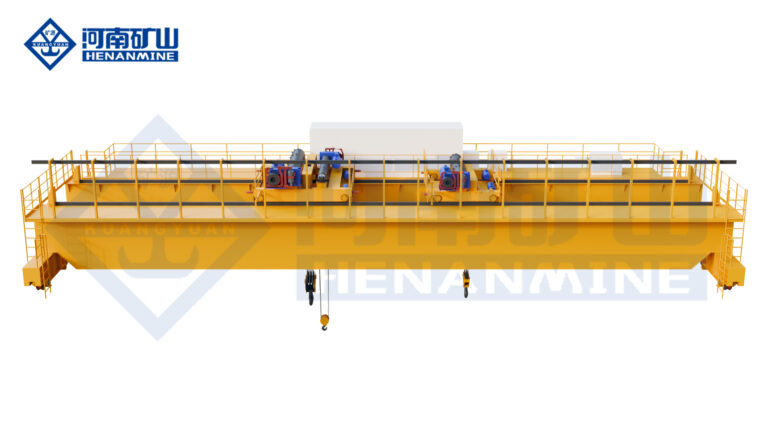

How do QY and QYE differ?

QY is the insulated hook-crane platform shown here in single-trolley configurations. QYE uses two insulated trolleys for separate tasks or a specified coordinated lift.

What should be included in a QY quotation?

Include the bridge, hook/trolley arrangement, insulation system and tests, controls, power feed and compliance documents. Runway equipment, freight, installation, commissioning and spare insulation parts are separately identified.

Can I order one crane, and when will it arrive?

One complete crane can be quoted. The offer confirms production and dispatch dates after load, insulation requirements and drawings are agreed, together with warranty and installation support for the selected package.
