PORT CRANE SOLUTIONS

Automated Container Gantry Crane for −40°C Rail Terminals

High-frequency container handling at a northern rail project must account for material behavior and controls at temperatures down to minus 40 degrees Celsius.

ApplicationInternational rail container project
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

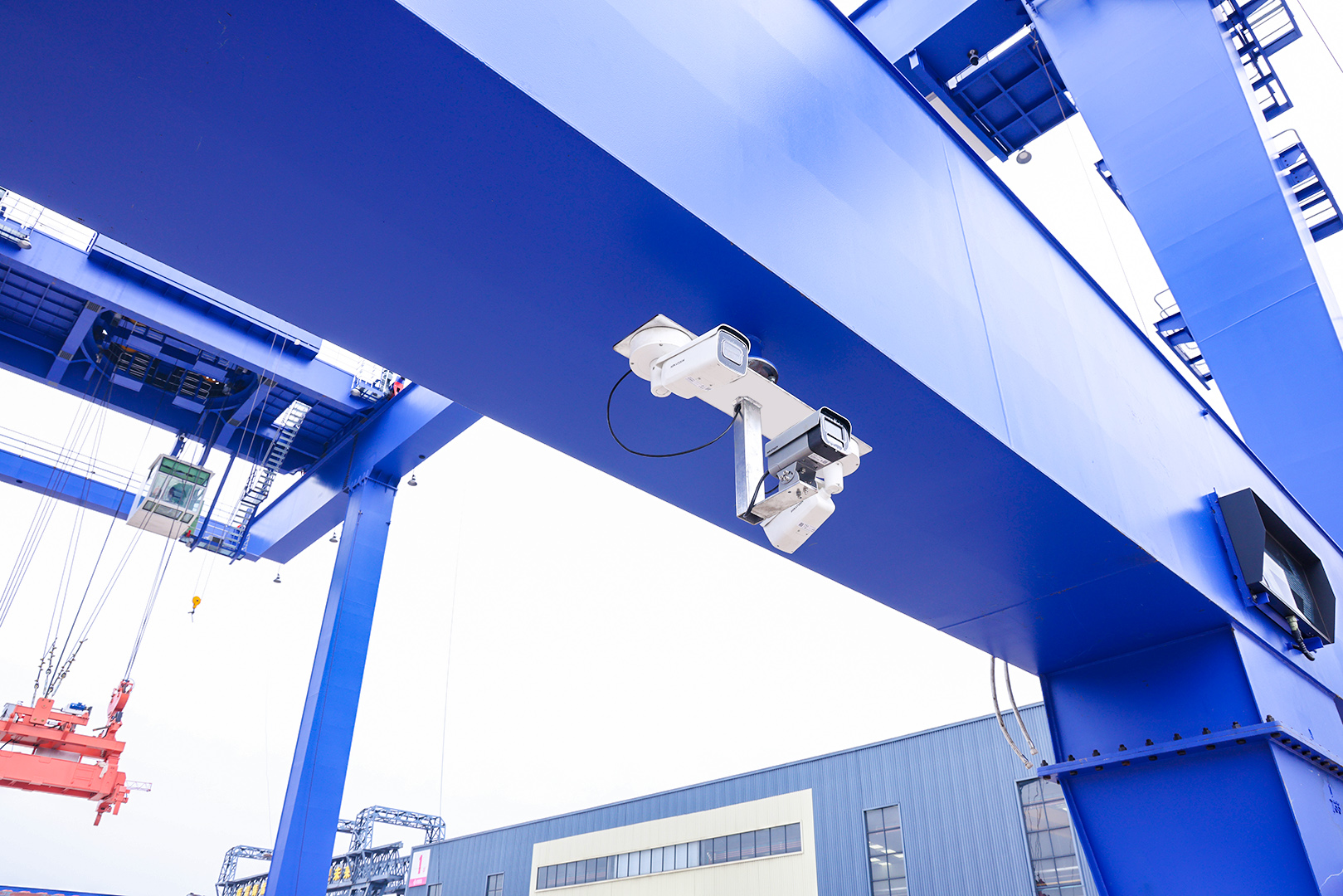

Automated rail-mounted container gantry crane with blue steel structure
Automated rail-mounted container gantry crane with blue steel structure.
THE OPERATING CHALLENGE

Start with the load and the process route.

High-frequency container handling at a northern rail project must account for material behavior and controls at temperatures down to minus 40 degrees Celsius.

The load, lifting attachment, traffic interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Lowest ambient temperature

02 / DEFINE

Container mix and gross load

03 / DEFINE

Rail gauge, lanes and stack height

04 / DEFINE

Peak cycles and data interfaces

ENGINEERED FOR THE APPLICATION

Keep container transfer available in an extreme-cold rail terminal.

Specify the gantry as a cold-climate operating system: structure and components for low temperature, A8 duty, all-variable-frequency drives, accurate positioning and yard-data integration. Validate the whole cycle at the operating temperature.

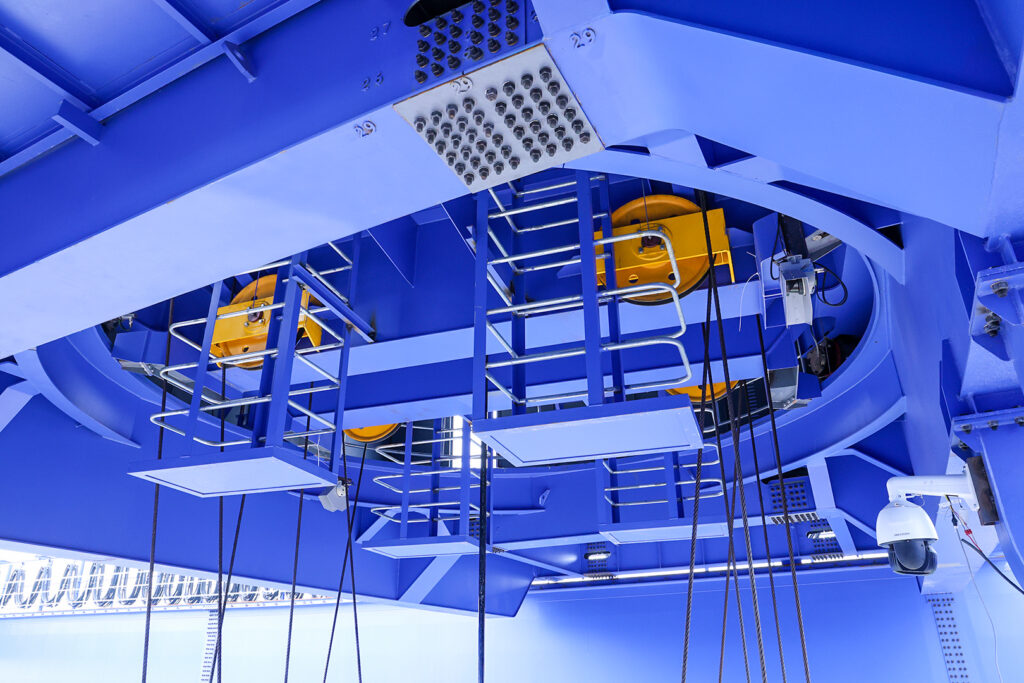

Automated rail-mounted container gantry crane with blue steel structure
Automated rail-mounted container gantry crane with blue steel structure.
01

Receive the task

Assign container identity and destination from the terminal system.

02

Transfer at speed

Coordinate gantry travel, spreader engagement and energy-regenerative drives.

03

Confirm the stack

Use GPS positioning and automated control to record the set-down location.

✓

Cold-weather design

Check materials, electrical cabinets and service practices against the minimum site temperature.

✓

High-frequency duty

Verify the expected cycles per hour and the A8 working requirement.

PROJECT IN OPERATION

International rail container project

An automated container gantry completed load testing for an overseas rail project. Its configuration included A8 duty, minus 40 C operation, ACCS control and GPS positioning.

Process fitMinus 40 C Automated Rail Container Gantry Solution
EquipmentRail-Mounted Container Gantry Crane
ProjectInternational rail container project
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementLowest ambient temperatureRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementContainer mix and gross loadCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementRail gauge, lanes and stack heightDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementPeak cycles and data interfacesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our site?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
