HENAN MINE CRANE / METALLURGICAL OVERHEAD CRANES
Quenching Crane
Fast, repeatable immersion for heat-treatment lines.
The YH quenching crane moves hot workpieces from furnace to tank and lowers them into the quench medium on a controlled cycle. The lifting route and immersion motion can be matched to the treatment process.
YHModel designation5–50 tRated load selection
PRODUCT CONFIGURATION / YHTHE LIFTING TASK
Designed for your handling path.
The YH quenching crane moves hot workpieces from furnace to tank and lowers them into the quench medium on a controlled cycle. The lifting route and immersion motion can be matched to the treatment process.
Crane arrangement
Double-girder bridge / single trolley with Quench hook or fixture matched to workpiece.
MODEL YH
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Rated capacity5–50 t
Crane span10.5–31.5 m
Lifting height6–24 m
Duty classA5–A7
Hoisting speedRapid-descent configuration available
Bridge / structureDouble-girder bridge / single trolley
Lifting systemQuench hook or fixture matched to workpiece
Power reference380 V / 50 Hz / 3-phase; export options
ControlPreset positioning and quench-cycle control options
Protection / markingHeat protection for the workpiece transfer route.
Runway and building interfaceCheck runway geometry, wheel loads and building reactions
Hook approach and clearanceConfirm required lifting envelope against the site drawings
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Quenching of forged and heat-treated steel components.
Compare the Metallurgical Overhead Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Runway and building interface
Confirm runway centers, wheel loads, building clearances and hook approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Share workpiece weight, furnace-to-tank route, immersion depth and cycle time.

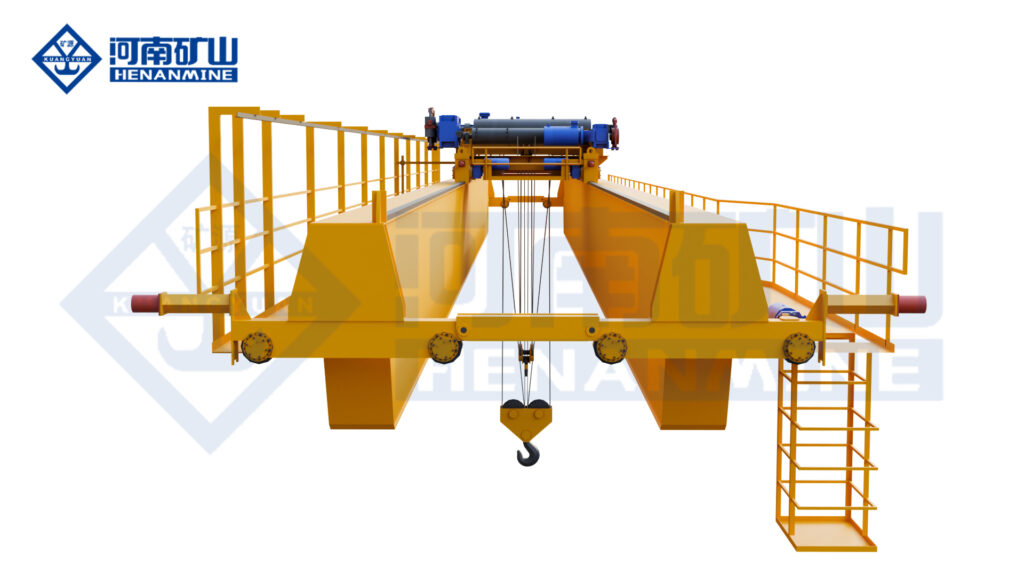

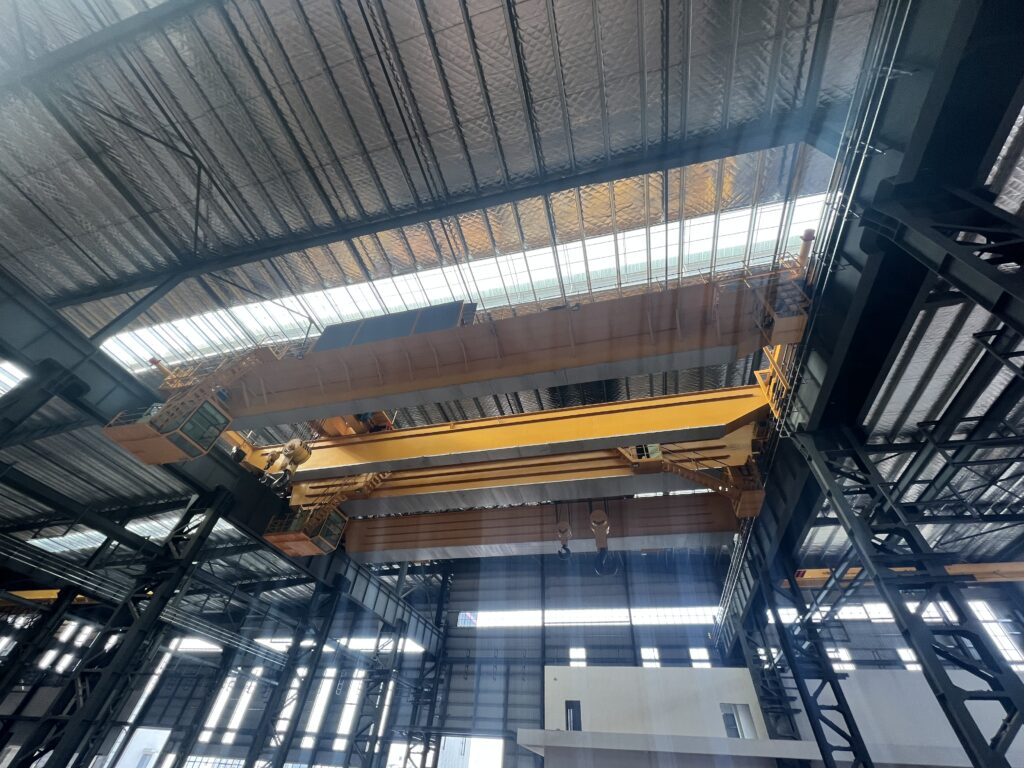

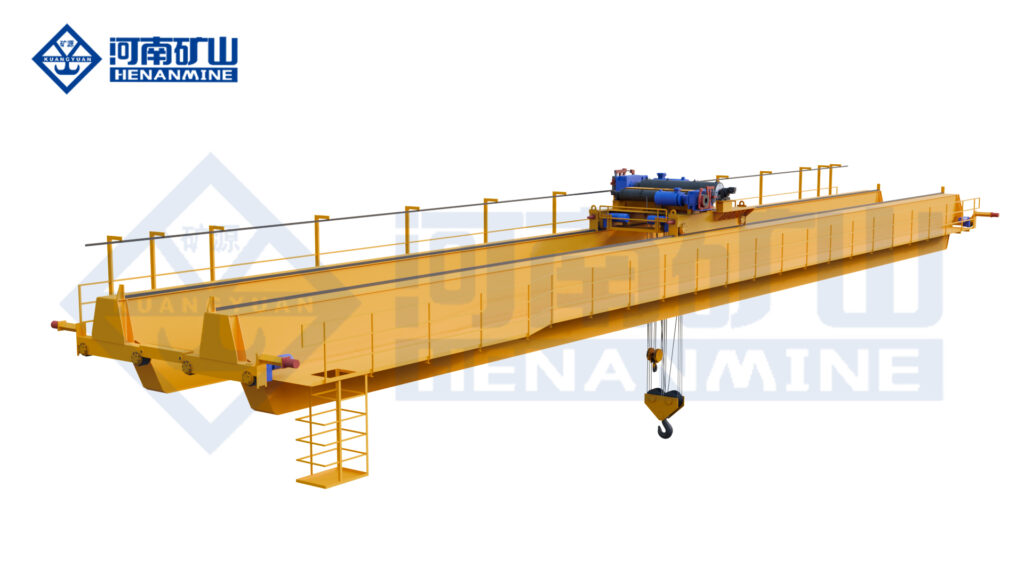

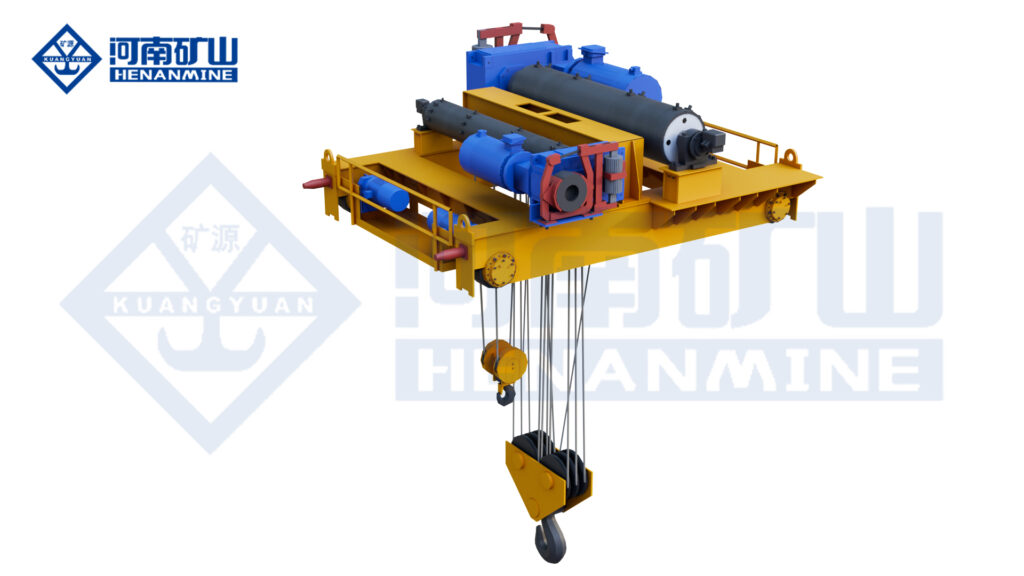

PRODUCT PHOTOS
See the YH configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a YH crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
EXPLORE THE RANGE
View Metallurgical Overhead Cranes ↗
