Start with the existing hook
Obtain the crane drawing and check rating, hook dimensions, lifting height, headroom and travel limits with the loaded bucket.
- Hook and swivel
- Loaded mass
- Open/closed envelope
REMOTE OPENING / CRANE RETROFIT
Remote-Controlled Hydraulic Clamshell Grab
A remote-opening hydraulic clamshell can help an existing crane handle bulk cargo without adding a conventional closing-rope system. The remote signal, hydraulic energy source and recharge method depend on the chosen design. Confirm how the bucket closes, opens and behaves if power or communication is lost before ordering for port, yard or ship-hold work.

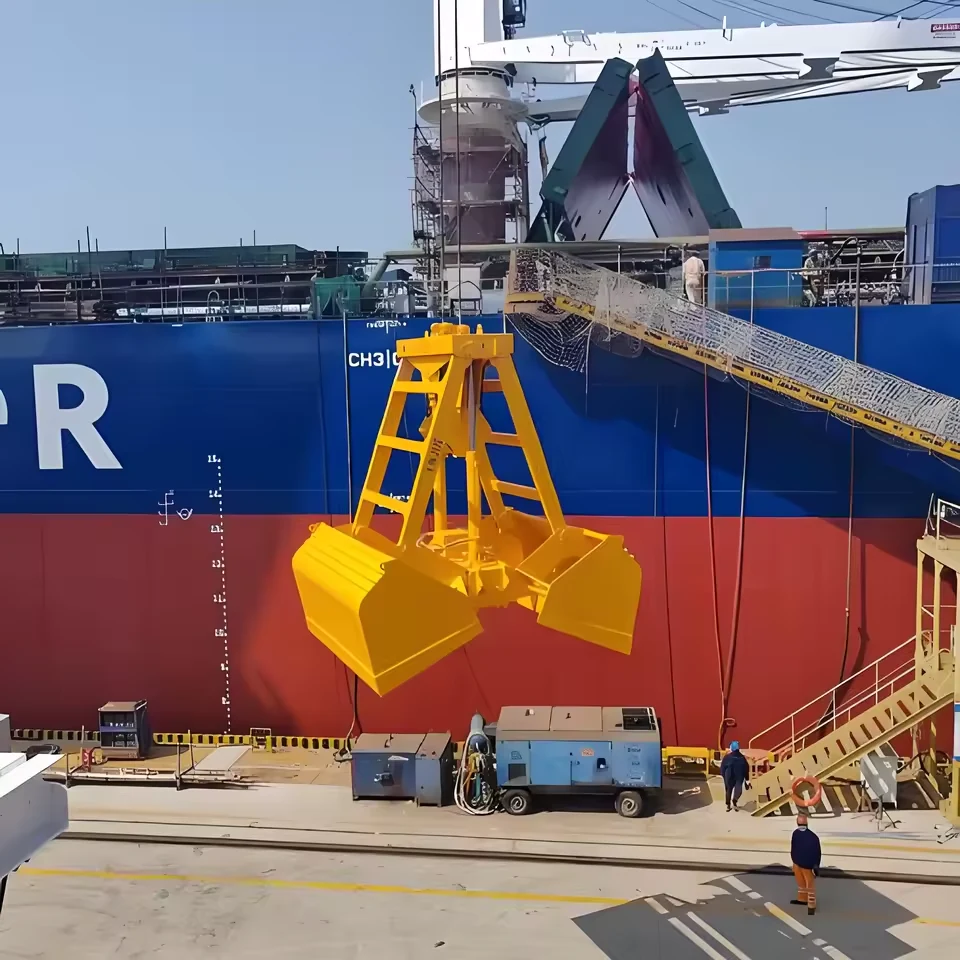

EQUIPMENT PHOTOGRAPH / 01
- OPENING
- Remote-controlled
- CLOSING
- Hydraulic package
- CRANE FIT
- Hook and headroom check
- ORDER BASIS
- Project configuration
Send your crane make and rated load, hook drawing, available headroom, cargo density, opening location, daily cycles and the site's charging or power options.
01
One-unit enquiries welcome
The selected attachment's minimum order and supply scope are confirmed in the written offer.
02
Crane and attachment checked together
Review the loaded attachment, connection, operating cycle and site clearances before approval.
03
Clear delivery and support scope
Agree inspection, documents, packing, schedule, site support and warranty before order placement.
01 / SPECIFICATIONS
Specify the operating sequence before a nominal bucket size.
A remote grab's capacity and self-weight depend on its chosen shell and hydraulic package. The selected-unit offer should state every value below together on one drawing and technical schedule.
Swipe to compare the complete selected-unit parameters →
| Parameter | State in the RFQ | Confirm on selected unit |
|---|---|---|
| Bulk material | Name, density, size and moisture | Maximum filled material mass |
| Grab size | Desired tonnes per cycle | Volume, open width and self-weight |
| Crane interface | Hook drawing, rating and headroom | Loaded mass and connection dimensions |
| Hydraulic energy | Available charging or cable route | Chosen power package and cycle endurance |
| Remote function | Required opening point and operator view | Range, fail-safe response and manual recovery |
| Site exposure | Dust, rain, salt air and temperature | Protection and maintenance schedule |
No single published capacity or battery figure applies to every remote grab. Do not approve the crane by bucket volume alone: add the selected grab self-weight to its maximum cargo mass.
Can my present hook crane use a remote grab?
It may, but confirm the actual total loaded mass, hook connection, headroom, lift path and the remote opening procedure. Ask for a drawing and operating demonstration for the selected grab before assuming the retrofit works.
Review the configuration
02 / APPLICATIONS
Where a full closing-rope retrofit is impractical.
01
Ship holds and quay hoppers
Position the opening action over the discharge area while checking operator sight lines, grab width and clearance at the hatch and hopper.
02
Existing gantry or mobile cranes
Use an existing hook where the crane rating, geometry and operating cycle are compatible with the new attachment and its energy package.
03
Bulk-yard transfer
Size the shells for cargo density and target throughput; check environmental protection and service access for repeated outdoor cycles.
A photograph of a remote grab does not establish its exact model, volume or lifting rating. Confirm those for the unit quoted against your crane and cargo. Compare the matching crane system.
03 / CONFIGURATION
Choose the attachment around the actual lift.
Select the bucket and hydraulic package around the existing crane's hook, available headroom and handling cycle. Define how the unit is charged, opened, inspected and recovered before confirming the retrofit and discharge sequence.
04 / QUOTATION SCOPE
Compare a complete attachment package.
Equipment price, crane modifications and site services should be separated so your team knows what is supplied and what remains to be done locally.
Complete grab package
Identify shells, hydraulic unit, energy storage or supply, remote transmitter/receiver, lifting head and actual self-weight.
Crane integration
State hook connection, optional charging or cable equipment, control interface and operator responsibility.
Demonstration and handover
Agree the opening test, safe recovery procedure, inspection documents, export packing and service spares.
05 / ORDERING & DELIVERY
Approve the selected unit before manufacture.
The offer should connect your load data to one drawing, one equipment schedule and a clear inspection and handover plan. Production and freight dates are confirmed for that selected configuration.
Request these documents with the offer
- Approved loaded-grab and hook-connection drawing
- Selected grab self-weight and cargo capacity
- Hydraulic and electrical system description
- Remote-control and loss-of-signal procedure
- Functional test and inspection records
- Maintenance and spare-parts list
List the destination standards and customer witness points before finalising the acceptance plan.
- 01
Application review
Confirm load, crane interface, environment, operating sequence and buyer requirements.
- 02
Drawing approval
Approve dimensions, self-weight, selected components, controls and site responsibilities.
- 03
Build and inspect
Complete the agreed functional and load-case checks, records and packing.
- 04
Deliver and commission
Coordinate transport, unloading, installation checks, operator instruction and handover.
Ask for one configured unit
Single-unit enquiries are welcome. The written offer confirms the selected design's minimum order and exactly what is supplied.
Specify the destination
State applicable market and customer requirements. The offer lists the documents, inspections and tests available for the selected unit.
A project schedule in writing
Drawing approval, production, inspection and shipping are separate milestones. A dated delivery programme follows the selected configuration.
WARRANTY & AFTER-SALES
Know the support terms before shipment.
Agree the warranty period and start date, covered components, replacement parts, installation guidance and any on-site service in the signed offer.
Ask for support termsMatch the crane interface
Assign who supplies power, rope, hook connection, controls, rigging and commissioning equipment.
Test the stated load case
Agree inspection and functional checks around the material and lift the attachment was selected for.
Maintain the installed unit
Record the final model, serial number and wear parts so replacement components fit the supplied configuration.
06 / RELATED EQUIPMENT
View the full attachment range Compare the attachments that fit your load.
POWERED CLOSING / BULK MATERIAL
Electric Motor Clamshell Grab Bucket
An electric or motor-driven clamshell closes under powered control instead of relying only on a separate closing-rope drum.
View product ↗
FOUR-ROPE / BULK MATERIAL
Four-Rope Clamshell Grab Bucket
Load loose bulk material with separate supporting and closing ropes.
View product ↗SINGLE-ROPE / RELEASE SEQUENCE
Single-Rope Clamshell Grab Bucket
A single lifting rope simplifies the crane connection, but the bucket's opening sequence becomes the key selection question.
View product ↗07 / BUYER QUESTIONS
Questions to settle before buying.
Use these answers to prepare one technical and commercial brief for the selected unit.
Discuss this attachmentDoes remote control mean the bucket has no power requirement?
No. The remote command and hydraulic closing action need a defined energy source or charging arrangement. Confirm the package for the selected model.
Will it fit any 10 t crane?
No. Crane rating is only one check. The loaded grab weight, hook dimensions, headroom, clearances and duty must match the actual crane.
Can it open above a ship hopper?
That must be verified for the selected opening mechanism and control sequence. Provide hopper dimensions and the required discharge height.
What happens if the remote signal fails?
The technical offer should state the selected unit's safe response, status indication and recovery procedure for the intended duty.
How are lead time and support handled?
The written offer confirms the selected power package, test scope, production and shipping milestones, warranty and spares.
YOUR EQUIPMENT BRIEF
Request a Remote hydraulic grab technical offer.
Send your crane make and rated load, hook drawing, available headroom, cargo density, opening location, daily cycles and the site's charging or power options. The selected drawing and commercial offer can then identify the attachment, crane interface, documents, delivery and support.
Send my attachment enquiry ↗Include these project details
- 01 Crane make, rating and hook drawing
- 02 Cargo type, density, size and moisture
- 03 Pickup, hatch and hopper clearances
- 04 Opening point and operator position
- 05 Power, charging and daily cycles
- 06 Destination, test and support requirements
