SINGLE-ROPE / RELEASE SEQUENCE

Single-Rope Clamshell Grab Bucket

A single lifting rope simplifies the crane connection, but the bucket's opening sequence becomes the key selection question. Some mechanisms need the grab to be set down on the material or floor before they release; do not assume it can empty while suspended. Show us the actual pickup and discharge positions so the right release mechanism can be checked.

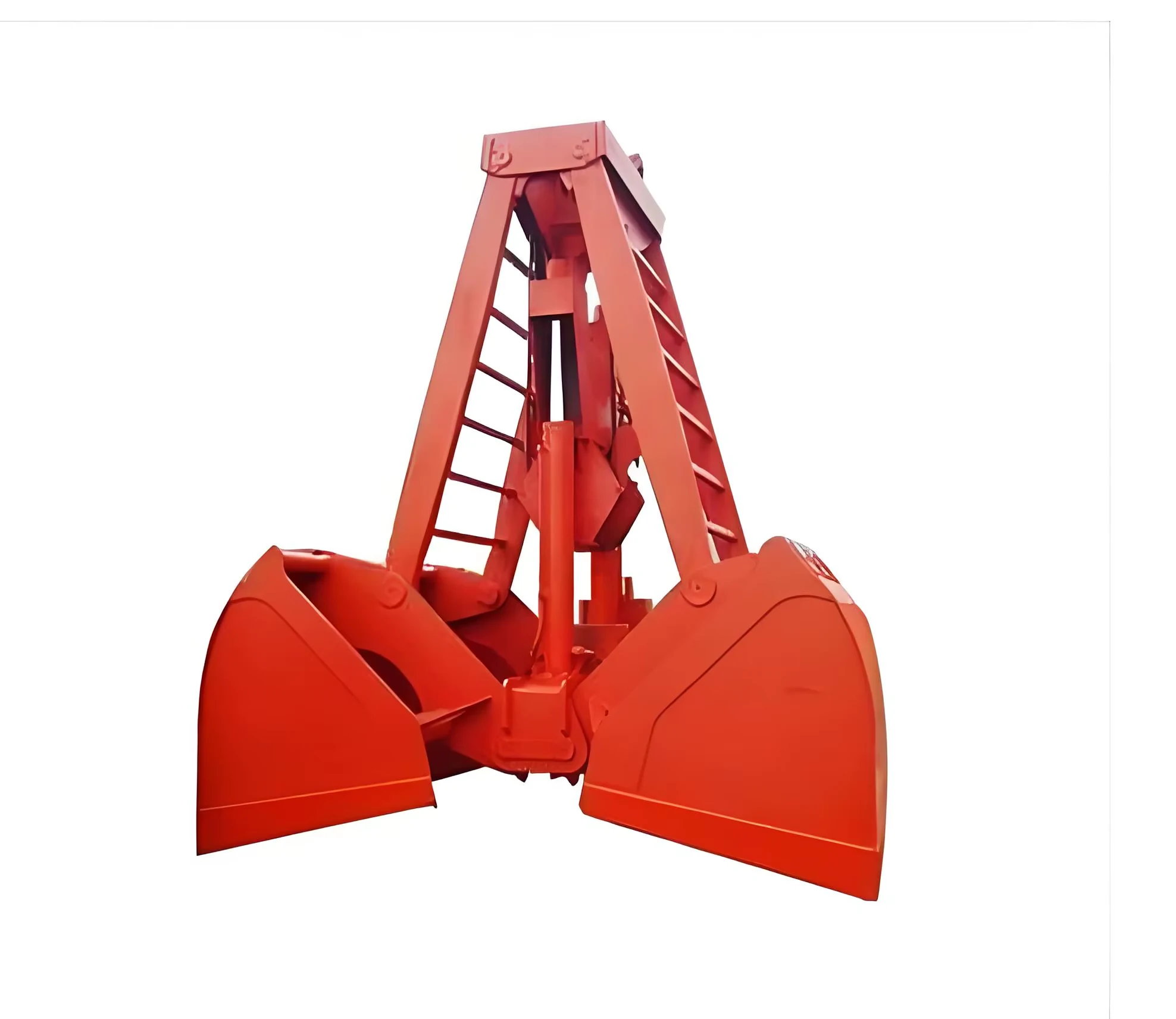

Red two-jaw clamshell grab bucket shown complete on a plain background — Two-jaw clamshell grab, overall form01 / 02

ROPE INTERFACE: One lifting rope
MODEL EXAMPLES: XZ5 / U82
DISCHARGE: Mechanism-dependent
ORDER BASIS: Checked release cycle

Simple rope interfaceDischarge method reviewed

Request a configured quote View specifications

Send the lifting-hook or rope drawing, the point where the grab must open, cargo density, maximum mass, working height and required cycle frequency.

One-unit enquiries welcome

The selected attachment's minimum order and supply scope are confirmed in the written offer.

Crane and attachment checked together

Review the loaded attachment, connection, operating cycle and site clearances before approval.

Clear delivery and support scope

Agree inspection, documents, packing, schedule, site support and warranty before order placement.

01 / SPECIFICATIONS

Check model scale and release sequence together.

The two example configurations serve very different crane sizes. Check the actual opening mechanism, grab self-weight and discharge point on the selected unit.

Swipe to compare the complete selected-unit parameters →

Model	Crane rating	Bucket volume	Material density	Listed material per grab	Rope / reeving
XZ5, toothed	3 t	0.5 m³	≤1.2 t/m³	0.6 t	Ø15 mm / ratio 2
U82	25 t	15 m³	≤1 t/m³	15 t	Ø28 mm / ratio 3

Listed material mass is not grab self-weight. The model examples do not establish that every single-rope grab can release while hanging. Confirm the selected mechanism and total loaded mass in the approved drawing.

Rope and outline data for these configurations

Model	Rope / sheave arrangement	Outline dimensions
XZ5	Ratio 2; Ø160 mm sheave	H 2,169 / D 1,470 mm
U82	Ratio 3; Ø460 mm sheave	H 8,000 / D 5,800 mm

H and D are outline labels. Use the approved unit drawing for installation clearances, opening width and building work.

Must the bucket touch down before it opens?

That depends on the release mechanism. Some single-rope grabs require the bucket to land or slacken before releasing. Tell us whether discharge must occur over an open hopper without landing, so this can be specified correctly.

Review the configuration

Red and black clamshell grab bucket photographed in a factory — Clamshell grab in the factory

02 / APPLICATIONS

Use only where the release path is workable.

Small bulk stations

A compact toothed grab can handle loose material where the lifting arrangement and discharge point permit its release sequence.

Large open stockpiles

A higher-volume design can suit a larger crane, but cargo density, bucket mass and operating clearance govern usable capacity.

Existing crane retrofit

A single rope may reduce the need for a separate closing drum. The hook, lifting height and release action still need engineering review.

If you need powered opening over a hopper while the bucket remains suspended, compare a suitably engineered powered or multi-rope grab before ordering. Compare the matching crane system.
