Unmanned Rotary Hearth Furnace Grab

Frequent material handling at a rotary hearth furnace exposes operators to dust and requires accurate repeat positions.

ApplicationBaowu Shaogang rotary-hearth furnace
Installed equipmentProject-specific lifting arrangement
Site-specificLoad, route, duty and delivery scope

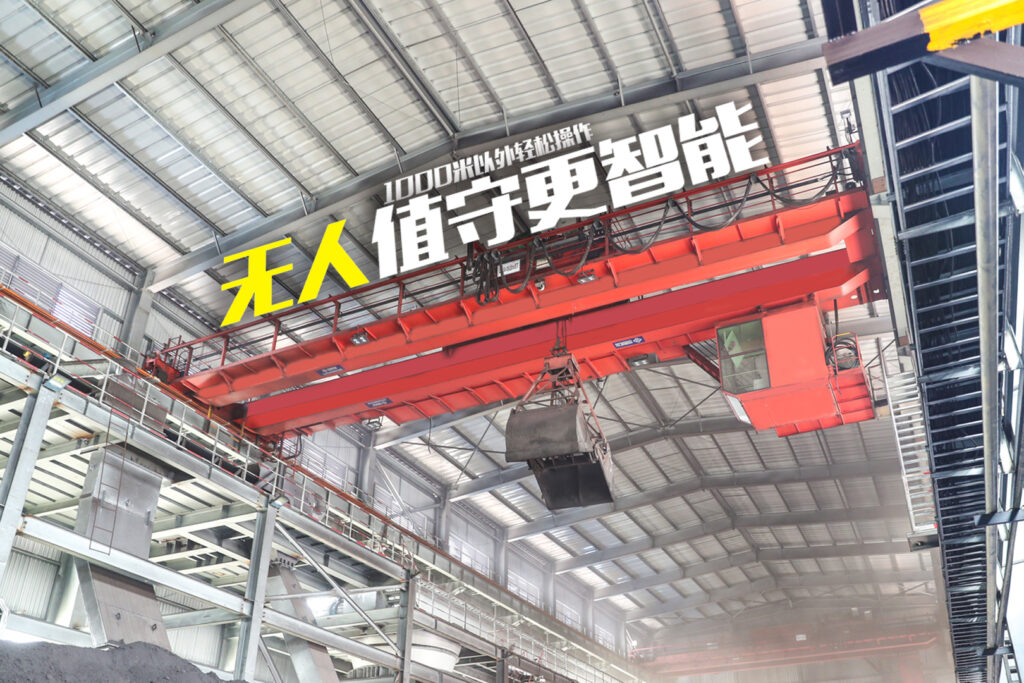

Grab overhead crane installed above a rotary hearth furnace process area
Grab overhead crane installed above a rotary hearth furnace process area.
THE OPERATING CHALLENGE

Start with the load and the process route.

Frequent material handling at a rotary hearth furnace exposes operators to dust and requires accurate repeat positions.

The crane, lifting attachment, building interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Material size and pickup variability

02 / DEFINE

Furnace bay layout

03 / DEFINE

Required cycle time and positioning

04 / DEFINE

Scanning, avoidance and recovery rules

ENGINEERED FOR THE APPLICATION

Automate grab movements in a dusty steelmaking process.

Build the grab crane into the process automation sequence. Use 3D scanning, load recognition, route planning and obstacle avoidance for pickup and discharge, with remote supervision and a safe recovery mode.

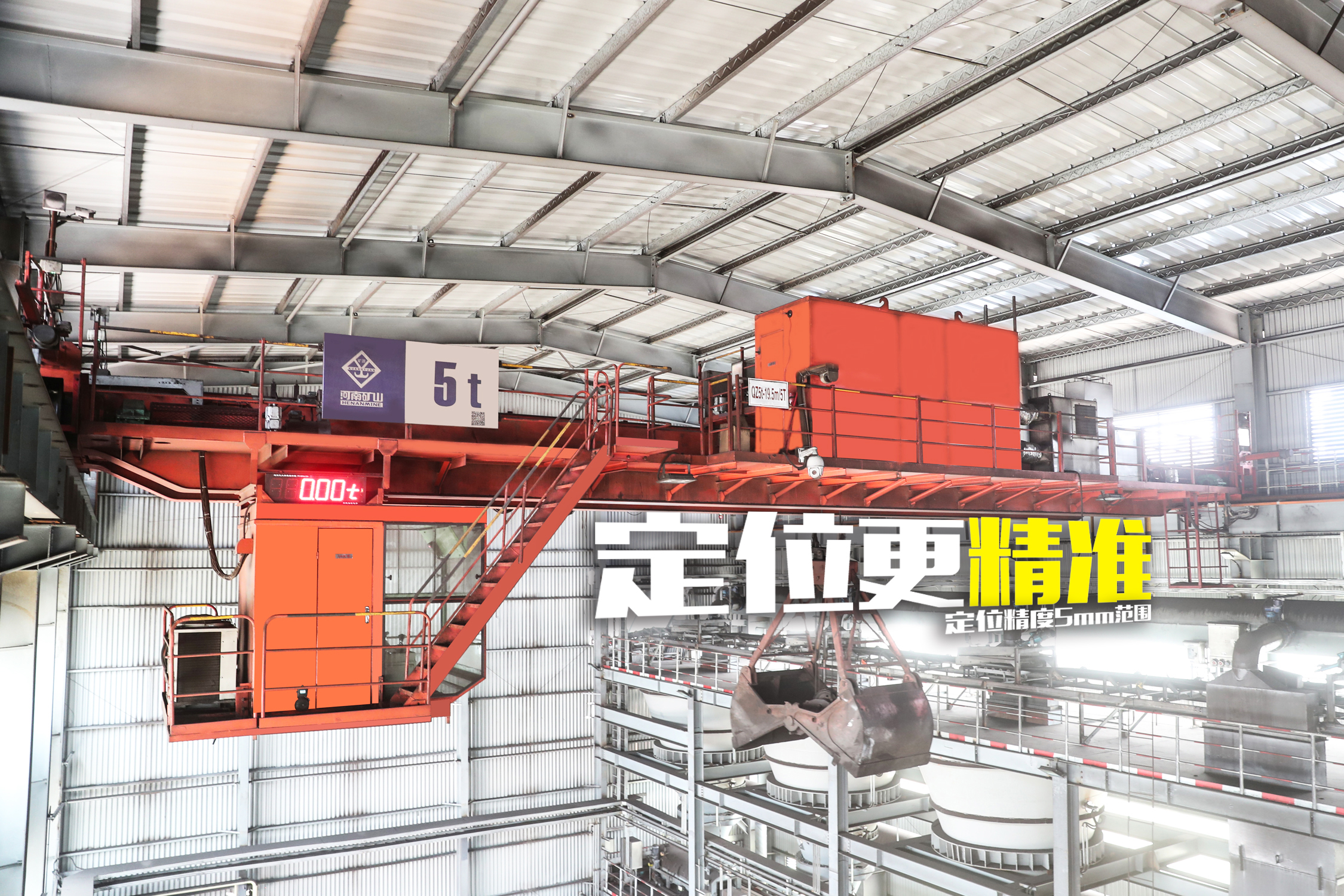

Grab overhead crane installed above a rotary hearth furnace process area
Grab overhead crane installed above a rotary hearth furnace process area.
01

Identify the material

Scan the pickup area and determine the grab target.

02

Move without a cab operator

Travel to the selected destination while checking obstacles and position.

03

Release and repeat

Confirm discharge and record the completed cycle before the next task.

✓

Repeatability target

Test positioning using the actual material and route, not an empty-crane trial alone.

✓

Remote supervision

Keep operator controls and maintenance access outside the dusty work zone.

PROJECT IN OPERATION

Baowu Shaogang rotary-hearth furnace

Two unmanned grab cranes were supplied for a 250,000-ton rotary-hearth-furnace project, with 3D scanning, repeat positioning within 5 mm and remote operator control.

Process fitUnmanned Rotary Hearth Furnace Grab Solution
EquipmentQZ Intelligent Grab Double-Girder Crane / Double-Girder Grab Overhead Crane
ProjectBaowu Shaogang rotary-hearth furnace
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Load and attachmentMaterial size and pickup variabilityRated load including the attachment, lifting-point arrangement and load cases.
02 / Plant geometryFurnace bay layoutCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Operating dutyRequired cycle time and positioningDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Environment and controlsScanning, avoidance and recovery rulesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our plant?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send the unmanned rotary hearth furnace grab brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
