POWER PLANT CRANE SOLUTIONS

Offshore Wind Assembly Multi-Hook Lifting

Large offshore wind components can require several pickup points, high lift and slow final positioning during assembly.

ApplicationOffshore wind assembly base
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

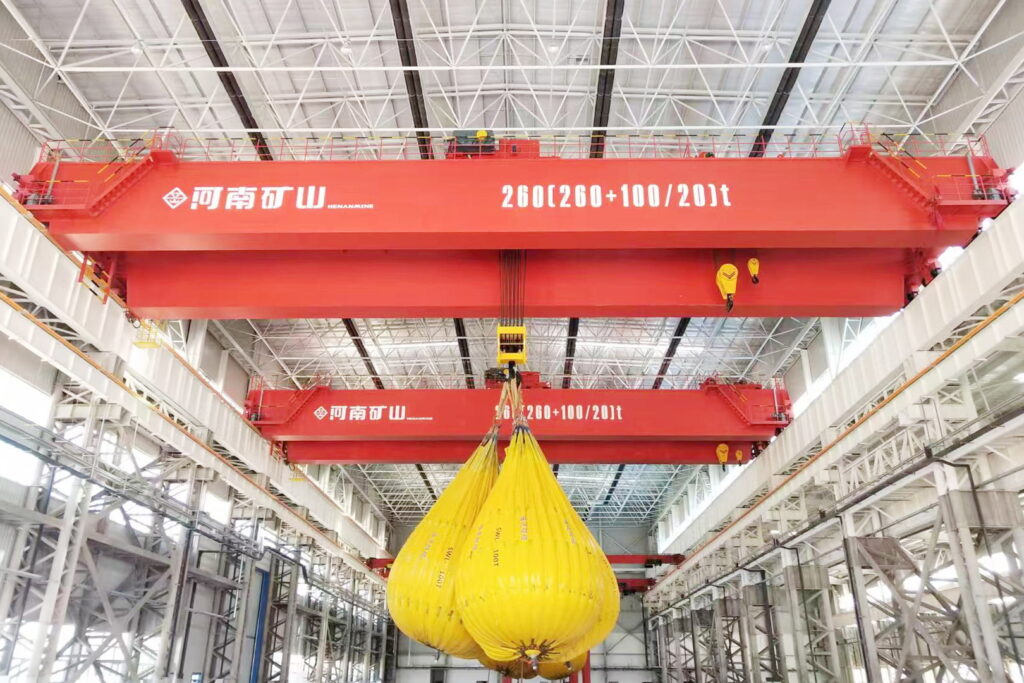

Multi-hook overhead crane for offshore wind equipment assembly
Multi-hook overhead crane for offshore wind equipment assembly.
THE OPERATING CHALLENGE

Start with the component and the lift route.

Large offshore wind components can require several pickup points, high lift and slow final positioning during assembly.

The lifted component, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Component lengths and lifted masses

02 / DEFINE

Assembly bay clearance and lift height

03 / DEFINE

Hook synchronization tolerance

04 / DEFINE

Shift schedule and monitoring scope

ENGINEERED FOR THE APPLICATION

Lift long wind-turbine assemblies without losing alignment.

Specify the workshop crane fleet around component geometry and sequence. Synchronize multiple hooks, apply controlled speed and anti-sway, and monitor the lift path visually and digitally before each assembly hand-off.

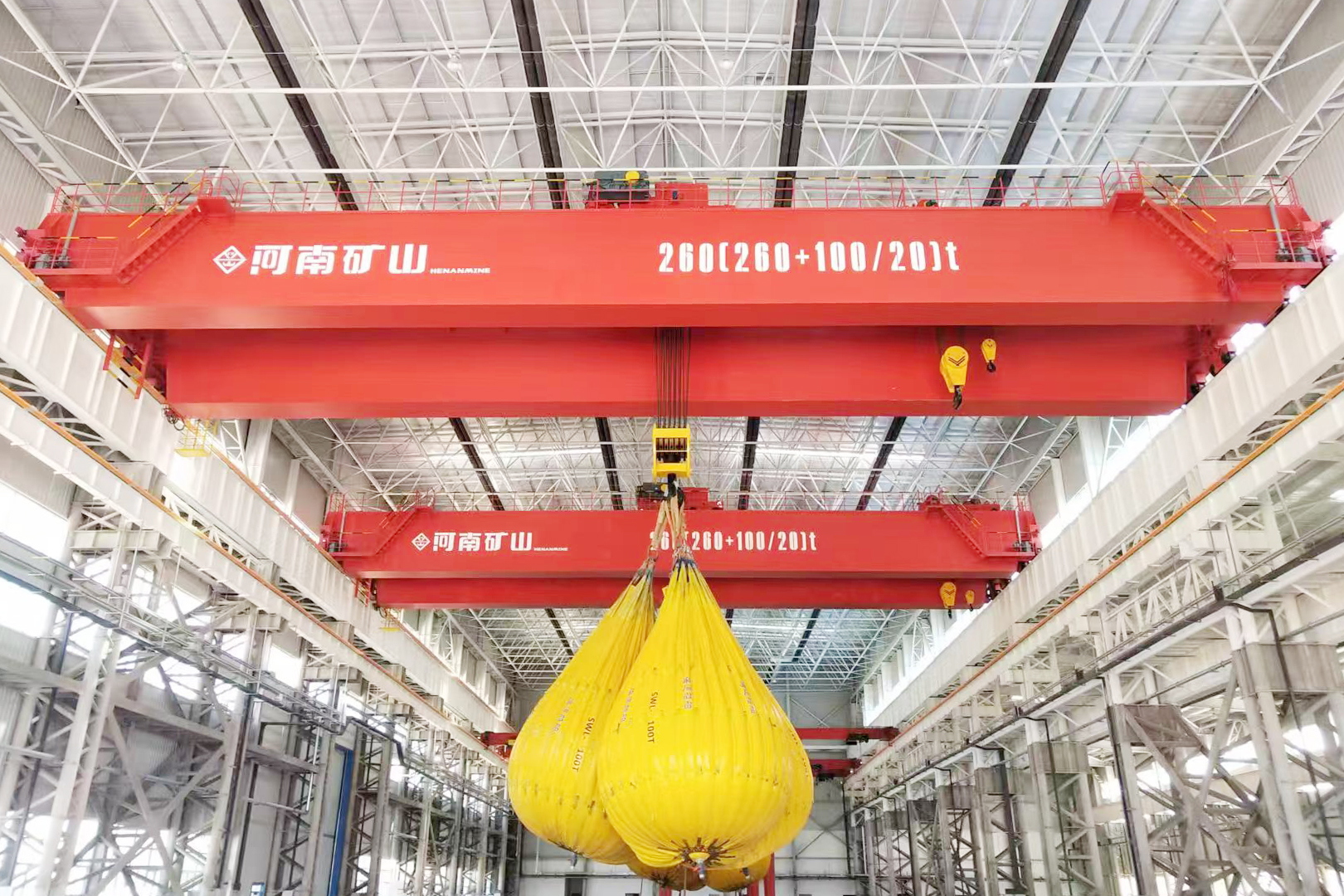

Multi-hook overhead crane for offshore wind equipment assembly
Multi-hook overhead crane for offshore wind equipment assembly.
01

Rig the component

Set lifting points and center of gravity for the current assembly stage.

02

Move at matched speed

Keep hooks synchronized during high lift and cross-travel.

03

Align and release

Use low-speed positioning at the fixture and confirm a stable support before unhooking.

✓

Multi-point load sharing

Check hook load balance throughout travel and rotation of the component.

✓

Assembly availability

Plan monitoring and service access around the production schedule.

PROJECT IN OPERATION

Offshore wind assembly base

Dozens of cranes supported an offshore wind-turbine assembly base, with high lift, synchronized hooks, electrical anti-sway and digital and visual monitoring.

Process fitOffshore Wind Assembly Multi-Hook Lifting Solution
EquipmentQE Double-Trolley Hook Overhead Crane / KSQE New-Design Double-Trolley Crane
ProjectOffshore wind assembly base
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementComponent lengths and lifted massesRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementAssembly bay clearance and lift heightCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementHook synchronization toleranceDuty classification, speeds and control behaviour matched to the agreed operating cycle.
04 / Site requirementShift schedule and monitoring scopeProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be configured for our powerhouse or factory?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send your project brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.

Send your project requirements ↗
