Underground Pump Station Unit Installation

Underground station construction restricts headroom and access while heavy equipment must be moved precisely to its installation position.

ApplicationNational water-conservancy pump station
Project equipmentBuilt for this handling task
Site-specificLoad, route, duty and delivery scope

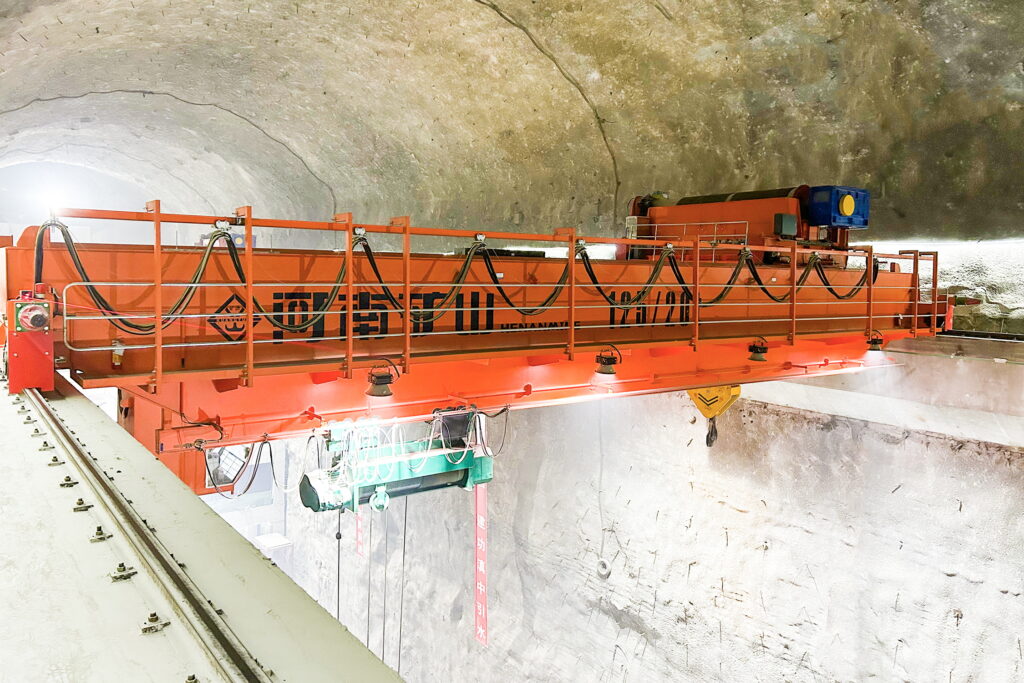

Overhead crane installed in an underground pump station chamber
Overhead crane installed in an underground pump station chamber.
THE OPERATING CHALLENGE

Start with the component and the lift route.

Underground station construction restricts headroom and access while heavy equipment must be moved precisely to its installation position.

The lifted component, rigging, building clearances and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Unit and rigging weight

02 / DEFINE

Delivery opening and hall sections

03 / DEFINE

Multi-point lifting arrangement

04 / DEFINE

Low-speed control and fault reporting

ENGINEERED FOR THE APPLICATION

Place heavy pump units inside a constrained underground hall.

Configure bridge cranes around the delivery opening, runway elevation and equipment centerline. Multi-point lift balance, low-speed torque and fault monitoring help the team install and later service the units.

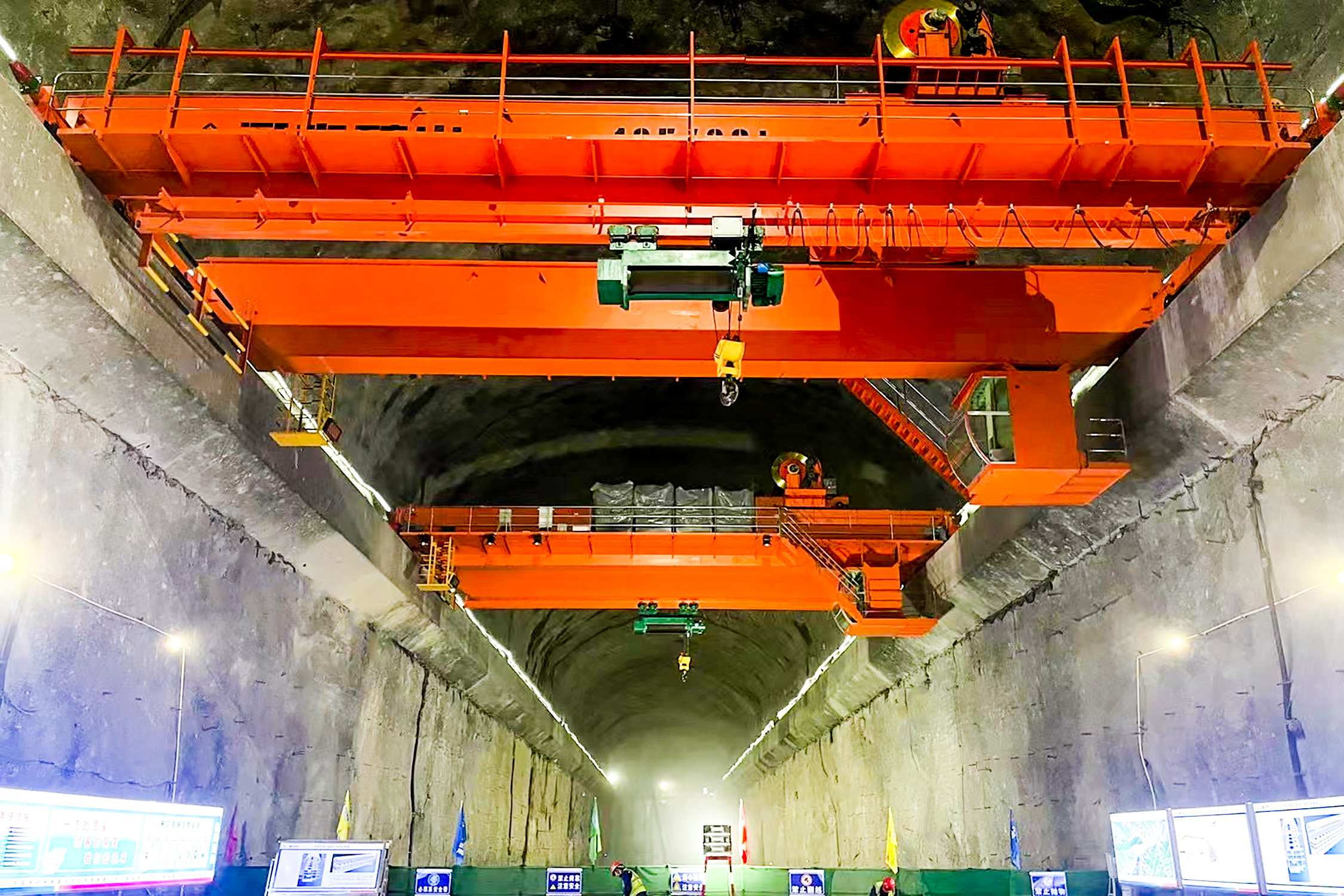

Overhead crane installed in an underground pump station chamber
Overhead crane installed in an underground pump station chamber.
01

Receive the unit

Check the opening, transport frame and lift point arrangement.

02

Traverse the hall

Keep multiple pickup points balanced through the underground route.

03

Lower to position

Use controlled low-speed movement and confirm the final support.

✓

Low-speed force

Confirm drive torque and braking while lowering the heaviest assembly.

✓

Fault visibility

Provide status, protective signals and recorded alarms to maintenance staff.

PROJECT IN OPERATION

National water-conservancy pump station

The underground pump-station project used a 125 t bridge crane and other units with PLC and variable-frequency control, multi-point synchronization and fault diagnostics.

Process fitUnderground Pump Station Unit Installation Solution
EquipmentQE Double-Trolley Hook Overhead Crane / KSQE New-Design Double-Trolley Crane
ProjectNational water-conservancy pump station
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Site requirementUnit and rigging weightRated load including the attachment, lifting-point arrangement and load cases.
02 / Site requirementDelivery opening and hall sectionsCrane span, lifting height, headroom, wheel loads and runway or foundation interfaces.
03 / Site requirementMulti-point lifting arrangementLifting-point positions, load shares, synchronization method, permitted combined motions and recovery procedure defined for the selected unit and rigging.
04 / Site requirementLow-speed control and fault reportingLow-speed torque, braking and stopping behaviour, fault signals, recorded alarms and the agreed safe recovery response.
