HENAN MINE CRANE / OVERHEAD CRANES
QS Three-Purpose Overhead Crane
Exchangeable hook, grab and electromagnetic attachments support three handling modes in one industrial bay.
QSModel designationProject-matchedRated load selection
PRODUCT CONFIGURATION / QSTHE LIFTING TASK
Designed for your handling path.
Exchangeable hook, grab and electromagnetic attachments support three handling modes in one industrial bay.
Crane arrangement
Overhead Cranes with Hook / grab / magnet.
MODEL QS
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Rated capacityTo project load schedule
Crane spanTo runway drawing
Duty classSet by cycle assessment
Trolley / attachmentProject arrangement
ControlAttachment changeover controls
Lifting heightSet from the pickup level and highest required hook position
Lifting attachmentHook / grab / magnet
Power supplyMatch voltage and frequency to the destination site
Runway and building interfaceCheck runway geometry, wheel loads and building reactions
Hook approach and clearanceConfirm required lifting envelope against the site drawings
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Frequent material-type changes
Compare the Overhead Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Runway and building interface
Confirm runway centers, wheel loads, building clearances and hook approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
All three load cases and power connectors

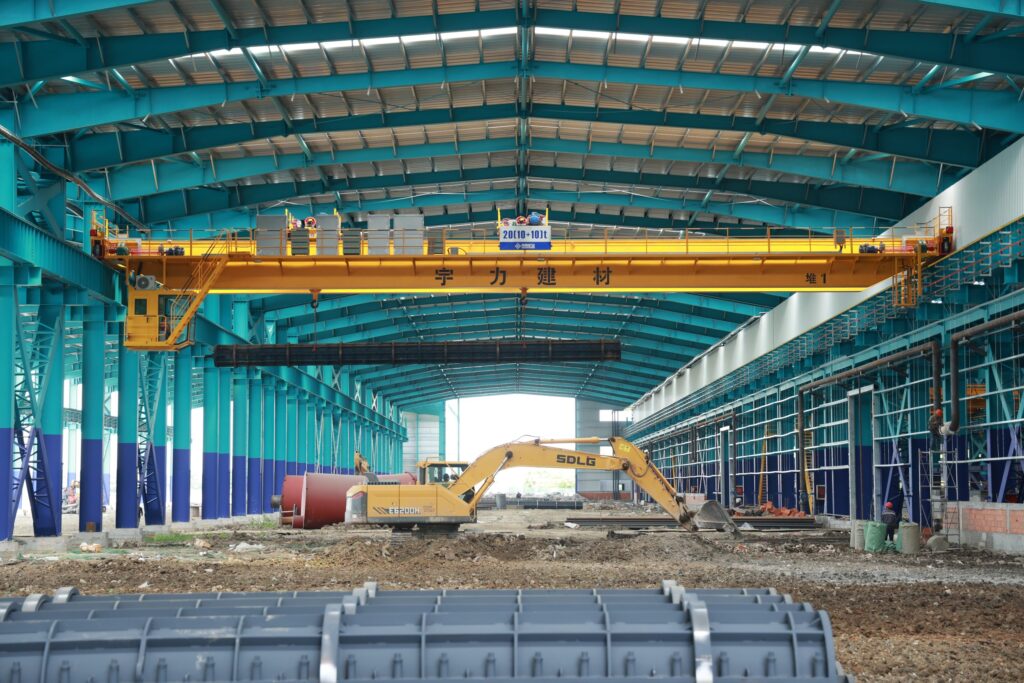

PRODUCT PHOTOS
See the QS configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a QS crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
