RMG Crane Delivered to Wanli New Energy Smart Dry Port
A rail-mounted container gantry combines Schneider drives, Siemens PLC, remote monitoring and truck anti-lift protection for an inland logistics hub.
The project and its handling task.

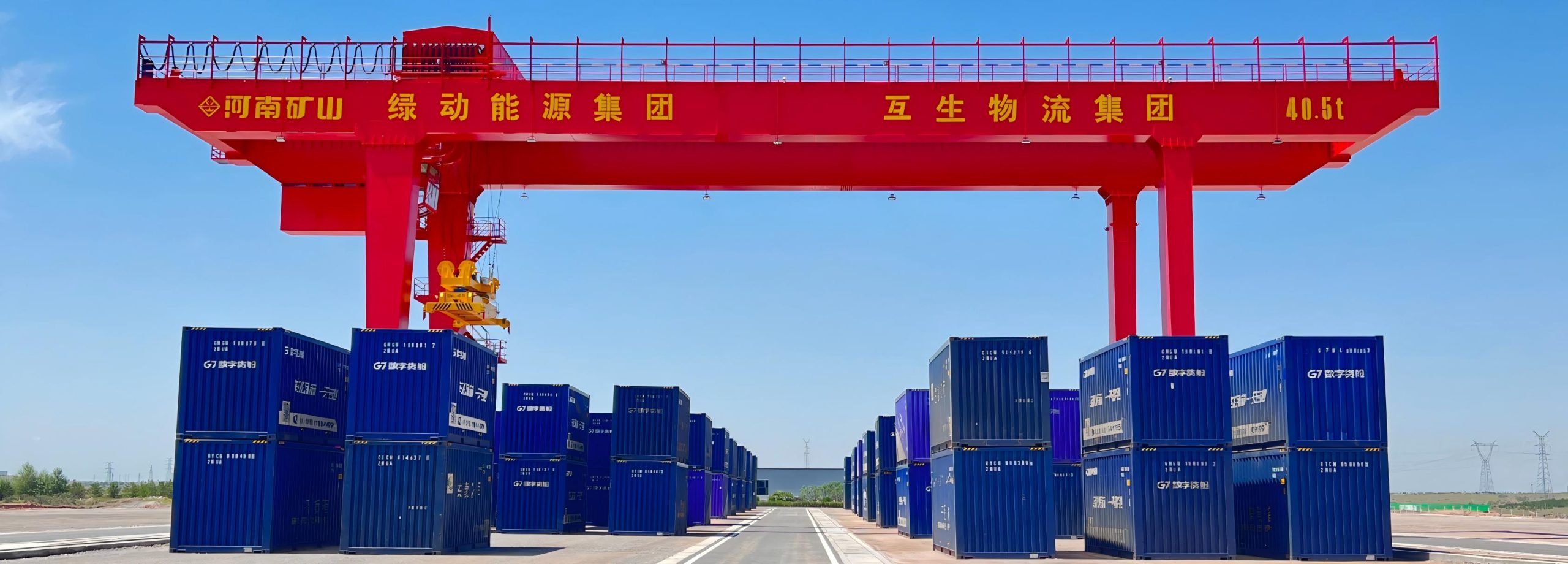

Wanli New Energy Smart Dry Port in Ordos received a customized rail-mounted container gantry crane from Henan Mine Crane. The equipment serves daily loading and unloading in a logistics project with a stated annual throughput target of five million tonnes.
Schneider variable-frequency drives and Siemens PLC control provide the motion platform. RCMS remote monitoring and operation, anti-sway, automatic container search, spreader zero-position monitoring and automatic guidance support the container-handling sequence.
Handle daily dry-port traffic with controlled container positioning.
A dry port must move containers across truck lanes and stacks without lifting a trailer or losing control of the spreader.
Identify the container and confirm the truck has reached a safe transfer position.
Monitor spreader engagement and sway as the container moves to its stack.
Guide the spreader to the assigned slot and verify release.
Guide the spreader to the assigned slot and verify release.
The equipment behind this project.
Schneider variable-frequency drives and Siemens PLC control provide the motion platform. RCMS remote monitoring and operation, anti-sway, automatic container search, spreader zero-position monitoring and automatic guidance support the container-handling sequence.
- Crane typeRail-mounted container gantry
- DrivesSchneider variable-frequency speed control

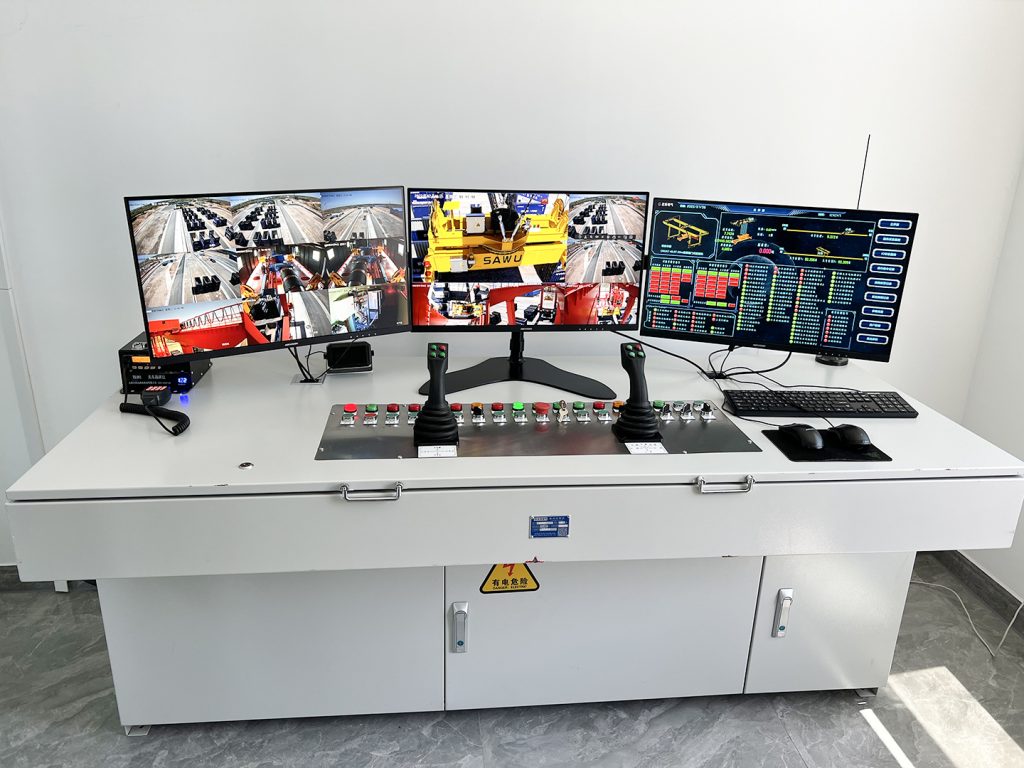

- ControlSiemens PLC with RCMS remote monitoring and operation
- Spreader functionsAutomatic search, zero-position monitoring and guidance
- Vehicle protectionTruck anti-lift protection
What to compare with your own project.
Match the project configuration to your load, layout and operating sequence before selecting a crane package.
| Design area | This project configuration | Define for your site |
|---|---|---|
| Crane type | Rail-mounted container gantry | Container mix and gross mass. Define the required operating envelope and acceptance checks in your technical brief. |
| Drives | Schneider variable-frequency speed control | Truck lanes and rail gauge. Define the required operating envelope and acceptance checks in your technical brief. |
| Control | Siemens PLC with RCMS remote monitoring and operation | Stack height and annual/peak moves. Define the required operating envelope and acceptance checks in your technical brief. |
| Spreader functions | Automatic search, zero-position monitoring and guidance | Remote-control and vehicle safeguards. Define the required operating envelope and acceptance checks in your technical brief. |
| Vehicle protection | Truck anti-lift protection | Container mix and gross mass. Define the required operating envelope and acceptance checks in your technical brief. |
See the equipment and working environment.
Explore the equipment arrangement and handling environment.
Delivered and in use.
The crane was delivered and put into use at the dry port. Integrated guidance and vehicle protection support daily container handling within the inland logistics project.
For a similar project, use a rail-mounted container gantry with variable-frequency travel, PLC control, anti-sway and truck anti-lift protection. Coordinate automatic container search and spreader guidance with the terminal's operating positions.
Continue from the project to the right crane family.
Use the project as a reference and specify the crane against your own yard layout and cargo.
Prepare a comparable crane quotation.
Share the load schedule and site drawings. Use a rail-mounted container gantry with variable-frequency travel, PLC control, anti-sway and truck anti-lift protection. Coordinate automatic container search and spreader guidance with the terminal's operating positions.
We can quote a single crane or a coordinated fleet. The offer sets out the destination standards, required certificates and inspection records, manufacturing programme after drawing approval, shipment, installation support and agreed acceptance scope.
- Container mix and gross mass
- Truck lanes and rail gauge
- Stack height and annual/peak moves
- Remote-control and vehicle safeguards
- Destination standards, quantity and inspection documentation
- Manufacturing programme, shipment, commissioning, training and spares
Questions before specifying a similar crane.
Can the same project crane be supplied for my site?
We customize the capacity, span, lifting height, attachment and controls to the load, building or yard layout and operating cycle. Container mix and gross mass is one of the inputs to review before final equipment selection.
How are certification, quantity and lead time agreed?
Single-crane and fleet enquiries are welcome. Define the destination and required standards in the enquiry. The project offer confirms certification and inspection documents, the quantity, drawing approval and manufacturing schedule, with the shipping and site-service boundaries.
What should acceptance and after-sales support include?
Agree the inspection plan, representative load and functional tests, operator training, maintenance instructions, spare-parts scope and fault-recovery procedures. For this application, include remote-control and vehicle safeguards in the technical review.
