HENAN MINE CRANE / WORKSHOP & CRANE LIFTING

CD Electric Wire Rope Hoist

Lift components, tooling and machinery with a CD electric wire rope hoist for a fixed lifting point, beam travel or a matched crane. Select the lifting package around the complete load, hook travel, operating cycle and available clearance.

For a quotation, send the rated capacity or complete suspended load, lifting height, mounting arrangement, quantity and site power. Add a beam drawing and travel length for a trolley-mounted unit.

Model familyCD electric wire rope
Catalogue referenceCD₁ 0.25–20 t
Lifting motionSingle-speed hoisting
MountingFixed or trolley-mounted

Your quotation confirms the exact capacity, lift, mounting, speeds, duty and supply scope.

01 / BEFORE YOU ORDERCapacity with the right lift

Match the workpiece, rigging and required hook travel to one selected capacity and lifting height.

02 / BEFORE YOU ORDERA trolley that fits the beam

Check flange dimensions, travel length, end approach and power feed with the complete installed load.

03 / BEFORE YOU ORDERA clearly priced package

Identify the hoist, trolley, controls, documents and delivery scope so quotations can be compared.

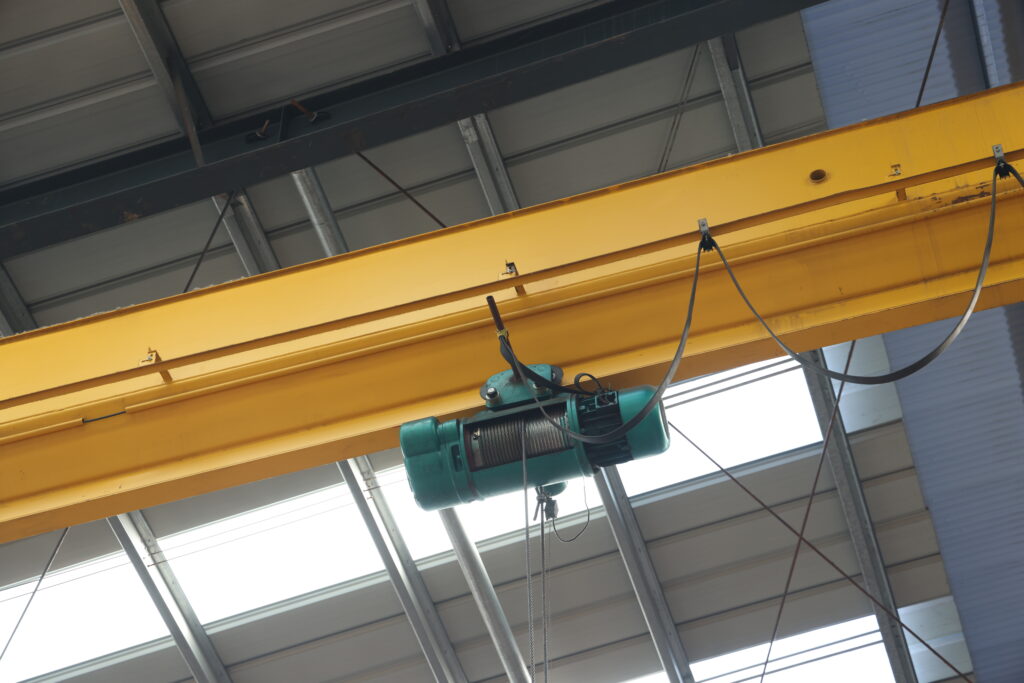

Green wire rope hoist installed beneath an overhead crane girder in a workshop
Workshop installation showing the hoist, supporting girder and travel power feed.
01 / APPLICATIONS

CD hoists for workshop lifting and machinery maintenance

Choose the suspension and travel package around the positions the hook needs to reach.
01

Fabrication and assembly

Position fabricated parts, tools and assemblies between workstations. Include any lifting beam and slings in the hook load, and state the positioning accuracy required.
02

Machinery maintenance

Remove motors, gearboxes or machine components at a service point. Check the highest hook position, sling depth and access for inspection before selecting the mounting.
03

Transfer along a workshop bay

Move loads between pickup and set-down positions with a compatible trolley or host crane. Define the route, end stops and required hook coverage.

General-purpose CD equipment is not a substitute for a separately specified explosion-proof or molten-metal lifting design.

02 / TECHNICAL SPECIFICATIONS

CD₁ capacity, lifting height and speed options

CD is the product family. The table below retains the CD₁ catalogue designation and its capacity-specific configurations; confirm the exact ordered designation in the technical offer.

Swipe to compare the complete capacity row

CD₁ reference capacity, lifting-height, speed and motor combinations
CD₁ load (metric t) Lift-height choices (m) Hoisting (m/min) Trolley options (m/min) Hoist motor (kW) Travel motor (kW)
CD₁ 0.25 t 3 / 6 / 9 8 20 0.4 0.06
CD₁ 0.5 t 3 / 6 / 9 8 20 or 30 0.8 0.2
CD₁ 1 t 6 / 9 / 12 / 18 / 24 / 30 8 20 or 30 1.5 0.2
CD₁ 2 t 6 / 9 / 12 / 18 / 24 / 30 8 20 or 30 3 0.4
CD₁ 3 t 6 / 9 / 12 / 18 / 24 / 30 8 20 or 30 4.5 0.4
CD₁ 5 t 6 / 9 / 12 / 18 / 24 / 30 8 20 or 30 7.5 0.8
CD₁ 10 t 9 / 12 / 18 / 24 / 30 7 20 or 30 13 0.8 × 2
CD₁ 16 t 9 / 12 / 18 3.5 20 13 0.8 × 2
CD₁ 20 t 9 / 12 / 18 4 20 18.5 0.8 × 4

CD₁ reference choices use three-phase AC 380 V / 50 Hz; the catalogue lists FC 25% duty. Lift heights and travel speeds are alternatives within each capacity row. Multi-motor entries show power per motor × motor count. Confirm the selected unit's speeds, duty basis, dimensions and power supply before ordering.

Confirm the installed lifting package

CD hoist installation and quotation checks
Rated load Include the workpiece and all below-the-hook attachments; assess the operating cycle separately
Installed hook height Show the highest and lowest hook positions, load height and sling depth on the arrangement drawing
Beam and trolley Confirm the actual beam section and flange dimensions, wheel reactions, travel route and end approach
Power and controls State site voltage, phase and frequency, control location, power feed and required motion commands
Duty and environment Provide lifts per hour, shifts, load pattern and site conditions for the selected-unit rating
Acceptance documents Agree the model-specific data sheet, dimensional drawing, inspection records, wiring information and operating instructions
03 / CONFIGURATIONS

Fixed, trolley-mounted or part of a complete crane

Choose the arrangement by the hook route and support interface. Compare MD₁ separately when a slower final hoisting approach is required.

Swipe to compare the lifting arrangements

CD mounting arrangements and separately specified MD₁ alternative
Arrangement Lifting task Installation checks Quotation scope
Fixed CD hoist Vertical lifting at one rated support Suspension, highest hook position and maintenance access Hoist, fixed suspension, controls and power connection
Beam-travelling CD hoist Lifting and travel along a suitable beam Flange dimensions, wheels, route, end stops and approach Hoist, powered trolley, controls and travel power feed
Crane-mounted CD hoist Lifting within a matched overhead, gantry or jib crane Host-crane rating, trolley interface, hook coverage and reactions Hoist and crane supply responsibilities identified together
MD₁ two-speed alternative A slower final lifting approach as well as normal hoisting Separate MD₁ capacity, height, speed pair and motor schedule A separately specified model; not an assumed CD speed upgrade

A compatible trolley and rated support are essential for travelling installations. A catalogue dimension is not an installed upper-hook-height guarantee; approve the actual mounting drawing.

04 / EQUIPMENT VIEWS

Review the trolley, rope drum and drive layout

Product photographs show different CD-family equipment arrangements. Use the selected-unit drawing and nameplate to confirm the configuration supplied.
Green electric wire rope hoist showing its trolley, rope drum and lower hook block
Wire rope hoist with trolley and lower hook block.
Blue electric wire rope hoist showing the rope drum, rope guide and drive housings
Drum, rope guide and drive components on a wire rope hoist.
05 / SUPPLY SCOPE

Compare a complete CD hoist package

Set out the equipment, interfaces, documents and site work in one comparable offer.
01 / SUPPLY SCOPE

Hoist and lifting components

List the selected CD unit, rope length, hook block, brake and limit arrangements, with the rated load, lifting speed and duty on the equipment schedule.
02 / SUPPLY SCOPE

Mounting and travel equipment

Identify fixed suspension or the selected trolley, beam interface, travel drive, end stops and power-feed components included in the offer.
03 / SUPPLY SCOPE

Controls and technical documents

Agree the control station, motion commands, emergency stop and electrical interfaces, plus the drawing, wiring information and inspection records supplied.
04 / SUPPLY SCOPE

Delivery and site support

Separate packing, freight, customs, installation, commissioning, training and spare parts where required. Set each party's responsibilities in the purchase documents.
06 / CD HOIST PRICE

CD electric wire rope hoist price guide

Budget US$700–2,400 per set for the conventional 2–5 t CD electric-trolley configurations below. Compare the same lift height, trolley, controls, duty and delivery scope before selecting an offer.

Budget configuration: electric trolley, pendant control, 9 m lift and 380 V / three-phase / 50 Hz supply. Confirm the lifting and trolley speeds for the selected unit.

Preliminary CD hoist equipment budgets in USD per set, 26 October 2026
CD configurationMounting / controlBudget range · USD
2 t × 9 m liftElectric trolley · pendantUS$700–1,400
3 t × 9 m liftElectric trolley · pendantUS$900–1,800
5 t × 9 m liftElectric trolley · pendantUS$1,200–2,400

Preliminary planning estimates, not firm quotations. The equipment budget covers the selected CD hoist, electric trolley, pendant controls and technical documents. It excludes supporting steelwork, runway and power-feed installation, freight, import duties, taxes, site electrical work, installation and commissioning. Longer lifts, special controls, destination conformity and nonstandard duty can change the price.

Request an itemized quotation for your capacity, lift, beam flange, duty, power supply and destination. Confirm the exact package, quotation validity and site-work responsibilities before ordering.
07 / ORDERING & SERVICE

Agree the order, delivery and service terms

01 / ORDER QUANTITY

One unit or several lifting points

Send the required quantity and configuration at each location. The written offer confirms the accepted quantity and unit package.
02 / DOCUMENTS

Match the records to the unit

Request the selected model's technical and inspection records and any conformity documents required for the receiving country.
03 / DELIVERY

Agree dates after technical review

Confirm drawing approval, production, inspection and dispatch milestones, then allow separately for transport and site work.
04 / WARRANTY & SPARES

Put service terms in the order

Agree warranty duration, coverage, exclusions and the service route. Identify the model and installed components when ordering spare parts.
09 / BUYER QUESTIONS

CD electric wire rope hoist purchasing FAQs

Answers for selecting the load, mounting, controls and complete quotation.
What is a CD electric wire rope hoist?

CD is a general-purpose electric wire rope hoist family for lifting at a fixed point or with a compatible trolley and crane. The CD₁ catalogue configurations on this page use single-speed hoisting. Capacity, lifting height, mounting and duty must be confirmed together for the unit ordered.

What is the difference between CD and CD₁?

CD is the family name used on this page; the numerical table retains the CD₁ model designation printed in the catalogue. Use the exact offered model and nameplate when comparing dimensions, motors, rope and replacement parts.

How is CD different from an MD₁ two-speed hoist?

The CD₁ table gives one normal hoisting speed for each capacity. MD₁ is a separately specified two-speed model with normal and slower hoisting. Request its own paired capacity, lifting height, speed and motor schedule when accurate final placement needs a slower approach.

How do I select capacity and lifting height?

Add the workpiece, lifting beam, slings and other below-the-hook attachments to obtain the complete suspended load. Measure the required highest and lowest hook positions. Match the chosen capacity and lift to the operating cycle and installed drawing.

Will the trolley fit my existing I-beam?

Send the beam section, flange dimensions, travel length, curves if any, and required end approach. Check trolley fit and support reactions using the actual hoist, trolley and operating loads. A nominal beam name alone does not confirm compatibility.

Can I order a different voltage or a radio remote control?

State the required voltage, phase, frequency and control method in the enquiry. The reference table is not approval for every site supply. The quotation must identify the selected motors, control equipment and power-feed arrangement.

Is a CD hoist suitable where headroom is limited?

Compare the selected unit's upper-hook position and installation envelope with the available building section. If the required hook height cannot be reached, assess a KS1 low-headroom arrangement using the same load and building dimensions.

Are the trolley, beam and installation included in the price?

Only the written supply scope establishes what is included. Ask the offer to identify the hoist, trolley or suspension, controls, power feed and supporting steel separately, with packing, transport, installation and commissioning as applicable.

Which details are needed for replacement rope or hoist parts?

Provide the nameplate, model, rated load, lifting height and component identification or photographs. Match rope diameter and construction, hook block, guide, brake and electrical parts to the actual assembly; tonnage alone is not enough.
