KSSLE / TWO COMPACT HOISTS · VFD TRAVEL

KSSLE Double Trolley Electric Hoist Overhead Crane

Handle long frames, machinery and fabricated components with two compact new-design electric-hoist trolleys on one bridge. KSSLE combines dual-speed lifting with variable-frequency trolley and bridge travel for controlled transfer and placement. Select independent operation, a coordinated two-point lift or a planned turning function for the workpiece.

HELP CHOOSING YOUR CRANE

Tell us the workpiece weight, length and lifting task. We can help select the two hoists, their spacing and the operating functions you need.

Lifting positions
2 compact hoist trolleys
Hoisting
Normal & positioning speeds
Horizontal travel
Variable-frequency drives
Operating modes
Independent or coordinated
Long-load assemblyCompact C-shaped hoist layout

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
Support long components at two points

Position each trolley at the component's lifting points. Individual hoist ratings and the combined bridge load are matched to the actual load distribution.

02
Control the approach to assembly

Dual-speed lifting gives a slower vertical approach for placement. VFD travel provides adjustable horizontal movement between workstations.

03
Keep the lifting package compact

The C-shaped hoist arrangement and large-diameter rope drums keep the two lifting units compact. Optional condition monitoring can be included for maintenance planning.

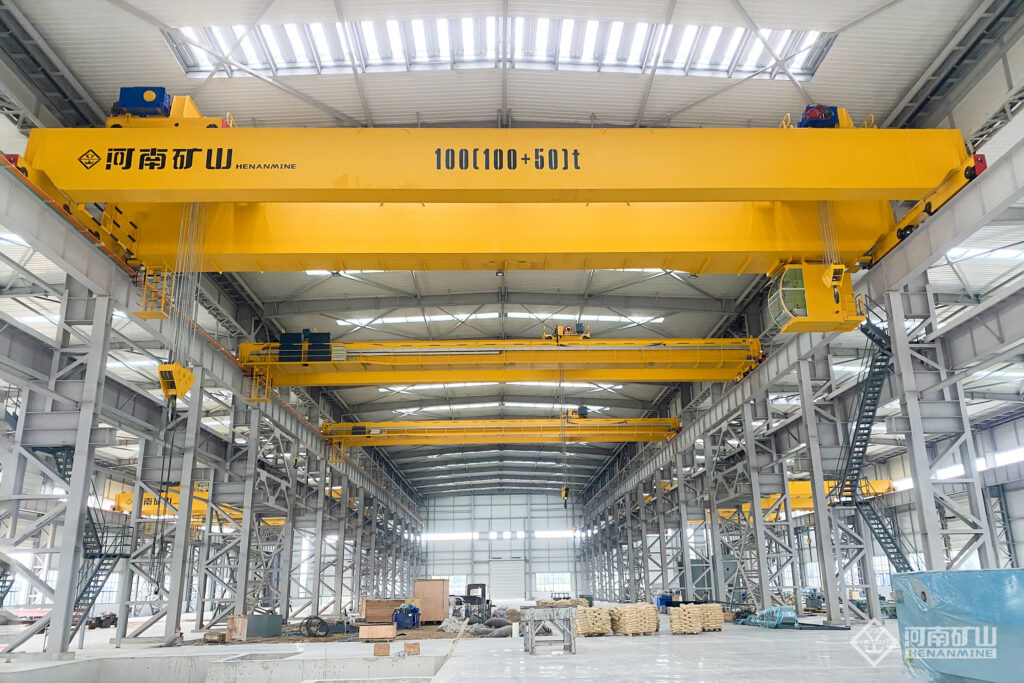

Henan mine crane co., ltd. twin-electric-hoist double-girder bridge cranes installed on workshop runways
Compact twin-hoist bridges on workshop runways
01 / APPLICATIONS

Two-point lifting for long workpieces and controlled placement.

01

Fabricated beams & frames

Move long steelwork between fabrication, inspection and dispatch positions while supporting the component at its designated lifting points.

02

Machinery assembly

Support machine bases and large assemblies during transfer and placement. Specify the permitted tilt or relative hook movement for the assembly process.

03

Planned workpiece turning

A matched attachment and coordinated control sequence can support balanced turning of suitable components. The turning load cases and hook movements form part of the ordered configuration.

Each hook has its own rating. The technical offer also defines the combined load, working hook spacing and permitted paired operations.

02 / TECHNICAL SPECIFICATIONS

KSSLE specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

ModelKSSLE
Bridge arrangementDouble girder overhead bridge
Trolley quantity2 on a common trolley track
Lifting mechanismTwo compact new-type electric wire-rope hoists
Rated capacityIndividual trolley ratings and combined load selected for the lifting cases
SpanMatched to runway rail-centre distance
Lifting heightMatched to pickup and placement levels
Hook spacingMinimum and maximum working spacing selected for the component
Crane dutyMatched to load spectrum, handling frequency and operating shifts
HoistingDual-speed lifting; speed pair selected for each hoist
Trolley & bridge travelVariable-frequency drives
Operating modesIndependent or coordinated handling; balanced turning when specified
Hoist layoutCompact C-shaped arrangement with large-diameter rope drums
Operator controlControl station and operating functions matched to the application
Monitoring optionRemote condition monitoring and maintenance functions
Power supplyThree-phase voltage and frequency matched to the destination supply

Compare model configurations

Handling taskLoad ratingOperating functionsSelection information
Separate workshop liftsMaximum load at each trolleyIndividual hoist and trolley selectionLoad mix and pickup positions
One long load on two hooksIndividual reactions and combined bridge loadCoordinated lift with specified relative movementComponent weight, centre of gravity and hook spacing
Balanced turningLoad cases throughout the turning sequenceMatched hoist movement, attachment and interlocksComponent geometry, lifting points and permitted tilt

These are selectable operating arrangements. Capacity, speed, hook spacing and coordination limits are defined for the ordered component-handling task.

03 / EQUIPMENT VIEWS

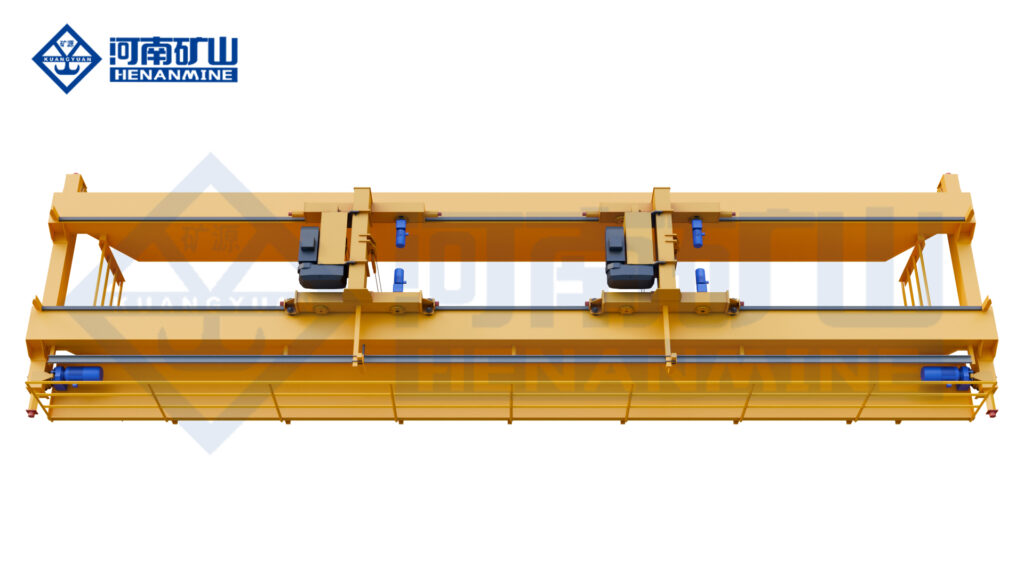

Compare the two compact hoist positions.

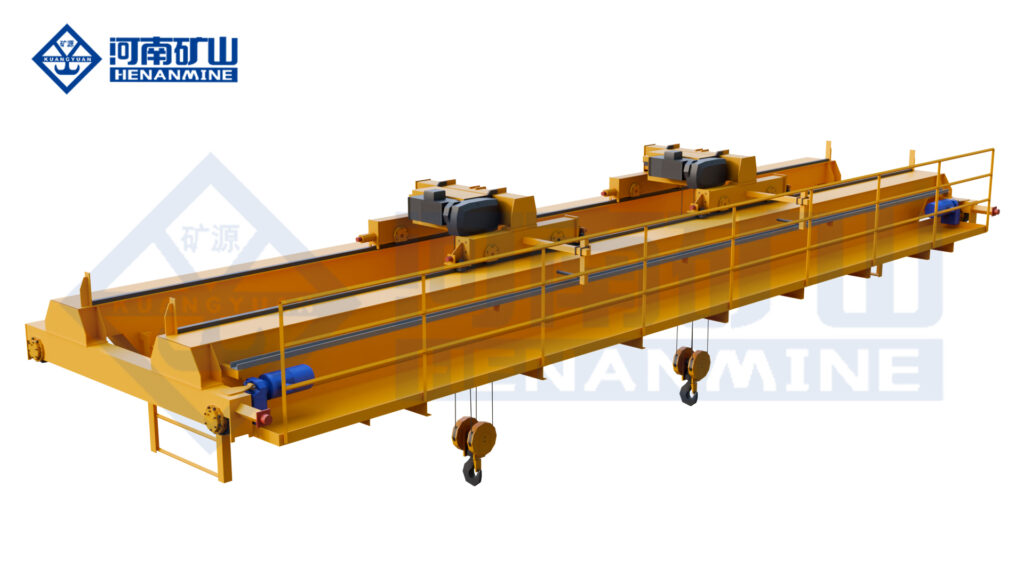

The product views show two new-type electric-hoist trolleys on one double girder bridge. Compare the trolley layout and lifting positions with the component length and assembly task.

Red double-girder overhead crane with two compact electric-hoist trolleys in a factory hall
Twin electric-hoist crane in a production hall
Henan mine crane co., ltd. twin-electric-hoist double-girder bridge cranes installed on workshop runways
Compact twin-hoist bridges on workshop runways
04 / CONFIGURATION

Choose the two-hook functions your production needs.

Start with the component weight, lifting-point spacing and highest placement level. Select the hoist and control package around those tasks.

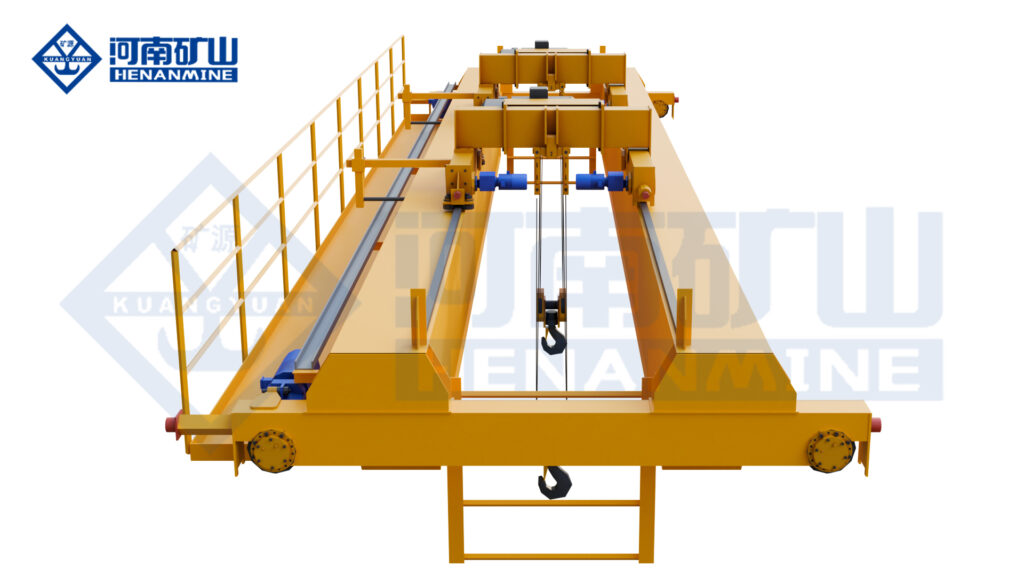

KSSLE crane end view with two electric-hoist trolleys, hooks and maintenance walkway
KSSLE trolley and end arrangement
01 / OPTION

Individual & combined loads

State the maximum load at each lifting point, including attachments, and the maximum combined load. The two trolley ratings are selected from these conditions.

02 / OPTION

Spacing & lifting height

Specify the shortest and longest lifting-point spacing and the required hook travel. Both trolleys share the same track; the working range and separation are shown in the arrangement drawing.

03 / OPTION

Independent, tandem or turning

Choose separate lifting tasks, coordinated handling of one component, or an agreed turning sequence. Paired speed and relative hook movement are specified for the selected operation.

04 / OPTION

Hoists, drives & monitoring

Dual-speed electric hoists and VFD travel form the lifting platform. Match working duty, site voltage, operator controls and any remote monitoring to the destination workshop.

05 / PURCHASING & DELIVERY

What comes with your KSSLE crane?

Compare the equipment, documentation, delivery and service scope for the configuration you need.

ORDER QUANTITY

Order the crane you need

Request one complete KSSLE crane or a project batch; the offer identifies the two trolley ratings and quantity.

QUOTATION

See the equipment included

List the bridge, both hoist trolleys, control and feedback package, operator station, power feed, attachments, monitoring, freight, installation and spares as named items.

DOCUMENTS

Documents for your destination

Specify the crane arrangement, individual and combined ratings, working hook-spacing limits, operating modes, electrical drawings, test records, manuals and destination compliance requirements.

DELIVERY

Plan production and dispatch

Production and dispatch are scheduled after the lifting cases, dimensions and coordinated-control functions are agreed. Drawing approval, factory testing, transport and site work are identified as separate milestones.

INSTALLATION

Installation and commissioning support

Agree bridge assembly, trolley alignment, electrical connection and commissioning of the ordered independent, paired or turning functions. Identify site access, local lifting equipment and test-load responsibilities.

WARRANTY & SPARES

Know the warranty and support scope

The purchase order defines warranty duration, commencement, covered hoists, drives and controls, exclusions and the after-sales support contact. Include the recommended wear and control-system spares.

07 / BUYER QUESTIONS

Answers for your KSSLE crane purchase

Find the arrangement, equipment options and order information that suit your application.

Why choose KSSLE for a long component?

Two independently positioned hoist trolleys can support a long frame, beam or machine at separated lifting points. KSSLE adds compact new-type hoists, dual-speed lifting and VFD travel for transfer and controlled placement.

Can each trolley be used for a separate load?

Yes, independent trolley operation is an available arrangement. Each trolley remains within its own load and travel limits, and the order identifies the permitted combined load on the bridge when both trolleys are used.

Does adding the two hoist capacities give the tandem rating?

The individual trolley ratings and the permitted combined load are stated separately. For one shared component, the load at each hook is calculated from its weight, centre of gravity, lifting points and attachment rather than assuming an equal split.

Can KSSLE turn a workpiece as well as lift it?

Balanced turning can be specified for a suitable workpiece. Send the component geometry, lifting-point arrangement and intended turning sequence so the hoists, attachment, load cases and controls can be selected together.

How accurately will the two hooks move together?

The coordination requirement is agreed for the lifting task. Specify the acceptable hook-height difference or component tilt and the required lifting speed; the offer defines the supplied feedback, control functions and acceptance criteria.

Can the trolleys pass each other on the bridge?

The standard arrangement has two trolleys sharing one track. Their order, travel limits and minimum separation should be planned around the load positions. A requirement for trolley crossing needs a separately reviewed arrangement.

Should I compare KSSLE with LHE or KSSL?

KSSL is a single-trolley new-design electric-hoist crane. KSSLE adds a second new-design hoist trolley for separated lifting points, with dual-speed lifting and variable-frequency travel. LHE is a twin wire-rope-hoist alternative with its own selected motion and coordinated-control package. Choose by the load, placement task and operating cycle.

What should I send for a KSSLE quotation?

Send the workpiece weight and length, approximate span, required lifting height and destination. Tell us if the hooks lift separately, support one component or take part in a turning operation. A photograph or drawing helps us develop the individual ratings, working spacing and control package; one crane or a project batch can be quoted.

How are delivery, certification and after-sales agreed?

The quotation confirms the production schedule, destination compliance documents, factory testing, warranty terms and service scope for the selected crane. State whether freight, installation, commissioning, operator training, remote monitoring and spares are required.

08 / YOUR KSSLE CRANE PROJECT

Get a quotation for your crane.

Share the workpiece weight and length, approximate span, lifting height and destination. Describe separate lifting, a shared lift or a turning task, and include a photograph or drawing if available. We can help develop the lifting points and control scope.

  • Configuration matched to your lifting task
  • Clear equipment and service scope
  • Delivery and support terms in your offer
