HENAN MINE CRANE / ELECTRIC HOIST OVERHEAD CRANES

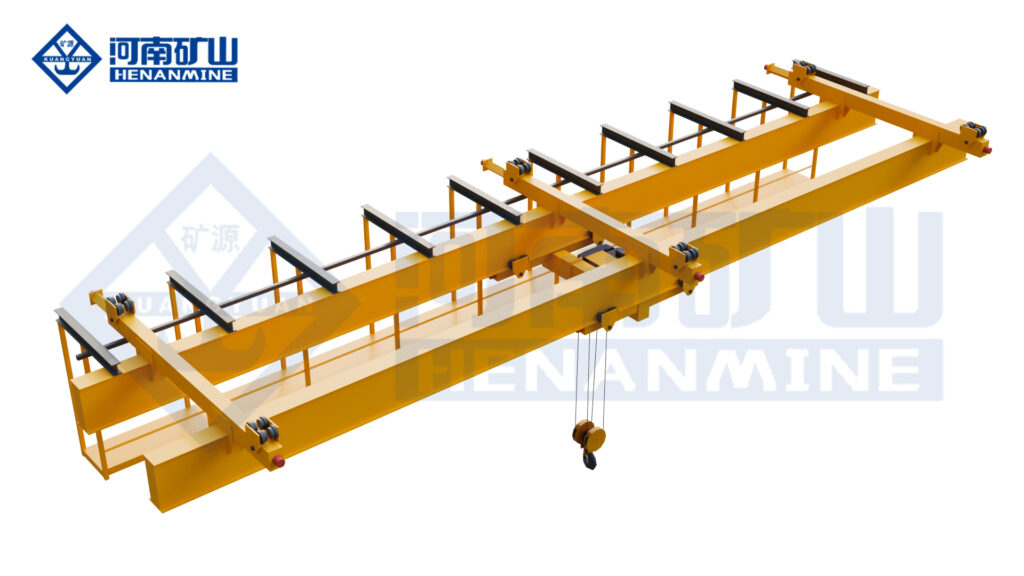

LHDX Multi-Point Double-Girder Underhung Crane
Suspended coverage across a very wide bay.
LHDX uses a multi-support double-girder suspension layout for large workshops and aircraft facilities. Roof reactions and the support arrangement govern whether it is feasible.
LHDXModel designation3–40 tRated load selection
PRODUCT CONFIGURATION / LHDXTHE LIFTING TASK
Designed for your handling path.
LHDX uses a multi-support double-girder suspension layout for large workshops and aircraft facilities. Roof reactions and the support arrangement govern whether it is feasible.
Crane arrangement
Electric Hoist Overhead Cranes with Multi-support suspended bridge.
MODEL LHDX
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Rated capacity3–40 t
Crane span10–80 m
Lifting height6–30 m
Duty classA3–A5
Lifting systemMulti-support suspended bridge
Trolley / attachmentMulti-point suspended bridge
ControlSynchronized travel to confirm
Power supplyMatch voltage and frequency to the destination site
Runway and building interfaceCheck runway geometry, wheel loads and building reactions
Hook approach and clearanceConfirm required lifting envelope against the site drawings
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Aircraft or large assembly buildings
Compare the Electric Hoist Overhead Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Runway and building interface
Confirm runway centers, wheel loads, building clearances and hook approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Roof support reactions, span definition and load path

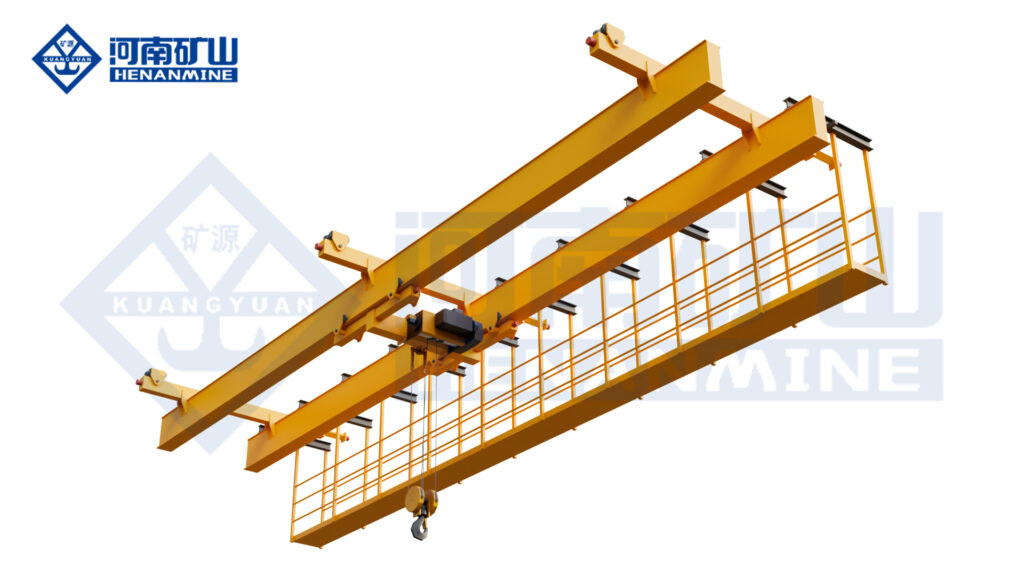

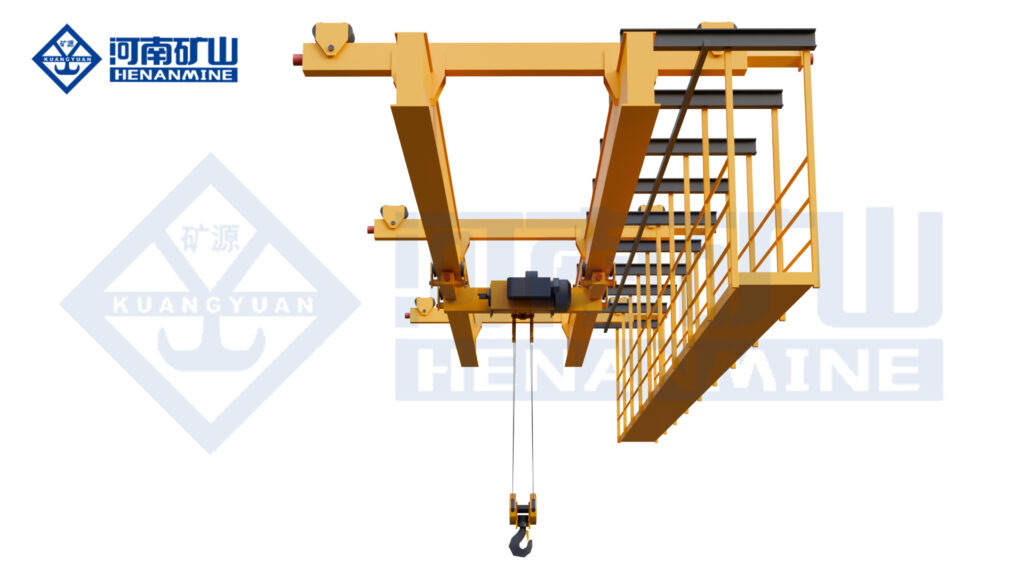

PRODUCT PHOTOS
See the LHDX configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a LHDX crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
