Lift components and assemblies in workshops with limited roof clearance. The compact hoist sits beside the girder, helping you achieve the required hook position within the available building height.
Tell us what you need to lift and your approximate span. We’ll help you choose the crane and hoist configuration.

Start with your heaviest load, rail-centre span and required hook height. A workshop sketch helps define the crane and installation scope.

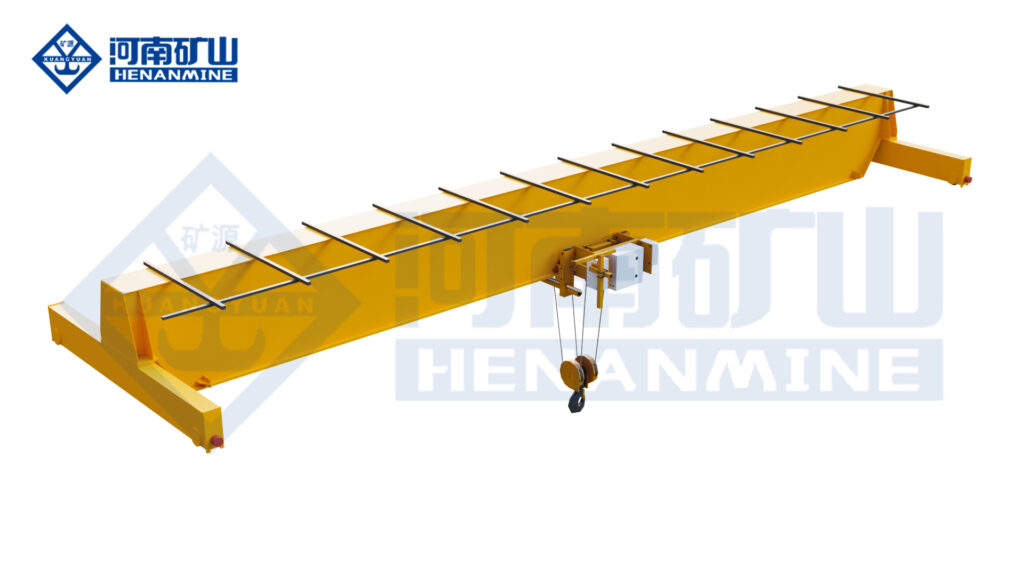

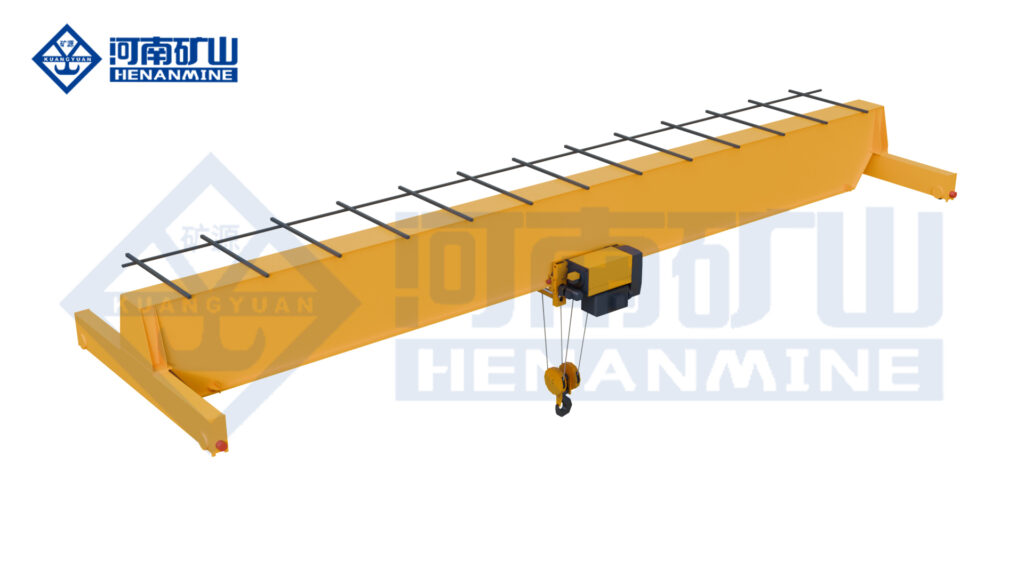

A compact hoist arrangement for workshops with limited headroom.
Select the hoist, controls and site power to suit the work.
See the equipment, delivery and installation support included in your offer.

Move machine parts, fixtures and fabricated assemblies between workstations. Choose the capacity for the heaviest component together with its slings or lifting beam.
Position motors, gearboxes and subassemblies for fitting or replacement. Check the full removal path, including the height of the load and lifting accessories.
Transfer steel stock and finished assemblies between storage, packing and loading positions. Verify that each pickup and set-down point lies within the hook coverage.
For general material handling. For hot-metal handling, hazardous areas or continuous process lifting, compare the application-specific crane arrangements.
Capacity, building dimensions and working duty are selected together. Compare quotations against the same requirements.
| Rated capacity | 1 / 2 / 3 / 5 / 10 / 16 / 20 t |
|---|---|
| Span | Up to 31.5 m; selected for the building |
| Lifting height | 6–30 m options; lower custom hook travel available |
| Working class | A3–A5, selected for the lifting duty |
| Hoist type | Low-headroom electric wire-rope hoist |
| Lifting speed | 8 m/min single-speed option; dual-speed option available |
| Trolley travel speed | 20 m/min option |
| Crane travel speed | 20 m/min option |
| Power supply | 380 V · 50 Hz · 3-phase; custom voltage/frequency |
| Control options | Pendant / wireless remote / cabin |
| Hoist position | Compact side-positioned arrangement |
| Crane arrangement | Top-running single girder |
| Typical applications | Low-roof workshops, assembly and maintenance |
| Customization | Capacity, span, hook height, speeds and controls |
See the bridge, compact hoist and workshop layout together. Compare these features with the lifting space your own task requires.


Select the hoist, control and drive package for the task. Include positioning, visibility and environmental requirements in the enquiry.

Match the hoist body, hook block and rigging to the required upper hook position. Compare arrangements at the same load and runway elevation.
State any slow-speed requirement and the operating route. Include variable-speed motion control in the selected package when needed.
Choose the operator control position around visibility and walking routes. Define pendant or radio-control requirements with the enquiry.
Specify site power, load frequency, shifts and environment. Agree the motion limits, overload protection and power-feed scope in the technical offer.
Compare the same load, span, working duty and supply boundary. An itemised technical offer makes equipment and site responsibilities clear.
Minimum order: 1 crane set. Each crane is configured for its load, building and operating cycle.
Your quotation separates the crane package, runway materials, power feed, freight and installation services, making the complete supply scope clear.
Your quotation identifies the drawings, manuals and inspection documents available for the selected crane. Tell us if your destination requires specific conformity documents.
Manufacturing lead time and dispatch dates are confirmed for your selected crane. Shipping time depends on the destination and transport plan.
Share the installation location. We’ll discuss the guidance, commissioning and site assistance available for your project.
Your offer sets out the warranty period and coverage, together with spare-parts support for the selected hoist and travel drives.
Resolve building fit, supply scope and operating requirements before committing to the crane configuration.
Consider LDC when a conventional hoist cannot provide the required hook position beneath your roof. Compare both crane envelopes at the same load, span and runway level. If either arrangement meets your clearance and duty requirements, compare the complete equipment and installation scope.
The gain depends on the selected hoist, girder depth, hook block and rail level. The useful comparison is a dimensioned building section showing both arrangements and their highest hook positions. A single height-saving figure does not apply to every crane.
The selected crane must suit the existing rails, supports and available clearances. Send the rail section, rail-centre span, runway elevation and available structural information so the proposed wheel loads and interfaces can be checked.
Use the same load, span, lift height, duty and control specification. Compare the crane, power feed, rails, support steel, inspection, packing, freight and site-work scope separately. The equipment price alone does not describe the full installed project.
Yes. The minimum order is one crane set. Include the site voltage, frequency and phase so the motors, controls and power-feed package can be specified for your factory.
Your technical and commercial offer identifies the document package, inspection scope, manufacturing programme and warranty terms for the ordered configuration. Include the destination and any local documentation requirements before the offer is finalised.
This arrangement serves general material handling, with A3–A5 working class selected around the actual load spectrum and operating cycle. Continuous process duty, molten metal and hazardous areas require a crane specified for those conditions.
Provide the maximum payload and lifting accessories, rail-centre span, runway length, rail level, roof obstructions and required hook position. Add the load dimensions, lifting frequency, shifts, site power, destination and installation scope.
Tell us what you need to lift, your project location and any dimensions you already know. We’ll help you choose a suitable configuration.
