LDC / EUROPEAN DESIGN

LDC European Single Girder Overhead Crane

Lift and position machinery, components and finished products with a compact electric wire-rope hoist. The LDC European design combines a single box girder with variable-frequency travel for controlled movement across the workshop.

HELP CHOOSING YOUR CRANE

Tell us what you need to lift and your approximate span. We’ll help you choose the crane and hoist configuration.

Capacity options
1–20 t
Span options
7.5–31.5 m
Crane duty
A5
Travel speed
2–20 m/min · VFD
Compact wire-rope hoistPendant or remote control

Start with the dimensions you already know. A workshop photo or sketch can help us recommend a configuration.

01
Controlled starts and stops

Variable-frequency bridge and trolley travel lets the operator approach the lifting position at a suitable speed.

02
Main and creep lifting speeds

Dual-speed hoist options support routine lifting and slower positioning when setting equipment or assembly parts down.

03
Compact, modular equipment

Compact hoist construction and a modular bridge suit general production and assembly bays.

European-style single girder cranes with compact wire-rope hoists installed inside a workshop
Compact-hoist single-girder cranes in a workshop
01 / APPLICATIONS

Controlled lifting across the production bay.

01

Machinery manufacturing

Move castings, machine parts and finished assemblies between defined workstations without occupying the floor transport route.

02

Assembly and equipment positioning

Use creep lifting and adjustable travel speed when aligning parts or setting machinery onto a prepared position.

03

Maintenance and material storage

Lift equipment for inspection and repair, or transfer stored components within the crane runway bay.

Capacity, hook height and speed options can be adapted to the load and handling cycle.

02 / TECHNICAL SPECIFICATIONS

LDC specifications and configuration options

Compare the available options for your lifting task. Capacity, span, lift height and speed are matched in the selected configuration.

Rated capacity1 / 2 / 3 / 5 / 10 / 16 / 20 t
Span7.5–31.5 m; custom spans available
Lifting height6 / 9 / 12 / 15 / 18 m; custom heights available
Working classA5; mechanism duty to suit the selected hoist
Hoist typeEuropean-style electric wire-rope hoist
Lifting speed (main / creep)5/0.8 or 4/0.66 m/min
Trolley travel speed2–20 m/min, variable-frequency control
Crane travel speed2–20 m/min, variable-frequency control
Power supply380 V · 50 Hz · 3-phase; 220–480 V, 50/60 Hz options
Control optionsPendant / wireless remote control
Working temperature−20 to +40 °C for selected configurations
Girder arrangementCompact single box girder
Rail optionsP24 / P38 / P43, selected for wheel load
Speed regulationVariable-frequency travel; lifting package selected to duty
03 / EQUIPMENT VIEWS

See the compact hoist in the workshop.

The complete crane and installed views show how the compact lifting unit sits beneath the single girder.

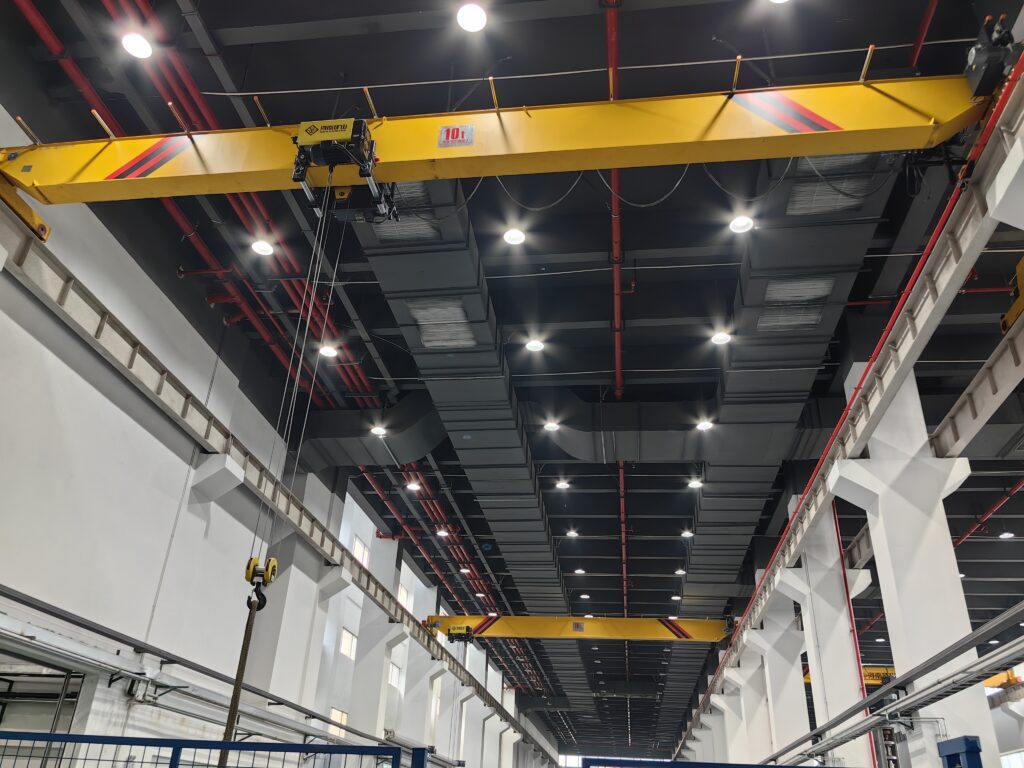

European-style single girder cranes with compact wire-rope hoists installed inside a workshop
Compact-hoist single-girder cranes in a workshop
European-style single girder crane serving machinery in a production workshop
Workshop lifting above the production aisle
04 / CONFIGURATION

Choose the lifting and travel package you need.

Start with the load, span and required hook height. Then choose the speeds and controls that fit the operation.

Front view of LDC European single girder crane and compact lifting mechanism
Front view of the compact lifting arrangement
01 / OPTION

Load and working span

Capacity options run from 1 to 20 t, with 7.5–31.5 m span options and custom layouts.

02 / OPTION

Lifting speed

Choose the matched 5/0.8 or 4/0.66 m/min main-and-creep hoist package for the selected load.

03 / OPTION

Travel and controls

VFD trolley and bridge travel offer 2–20 m/min speed adjustment. Pendant and wireless remote controls are available.

04 / OPTION

Site power and operation

Select the voltage, frequency and lifting height for the destination workshop and operating cycle.

05 / PURCHASING & DELIVERY

What comes with your LDC crane?

Get a clear equipment offer with delivery, documentation and support for your selected configuration.

ORDER QUANTITY

One crane or a workshop package

Single-crane enquiries are welcome. Request one unit or a coordinated package for several working bays.

QUOTATION

See the equipment included

Your offer lists the crane, hoist, controls and power feed, with runway materials, freight and installation services identified separately.

DOCUMENTS

Documents for your destination

Your quotation identifies the drawings, manuals and inspection documents available for the selected crane. Include any destination-specific conformity requirements.

DELIVERY

Delivery time in your quotation

Manufacturing lead time and dispatch dates are confirmed for your selected crane. Shipping time depends on the destination and transport plan.

INSTALLATION

Installation support

Share the installation location. We’ll discuss the guidance, commissioning and site assistance available for your project.

WARRANTY & SPARES

Warranty and spare parts

Your offer sets out the warranty period and coverage, together with spare-parts support for the selected hoist and travel drives.

07 / BUYER QUESTIONS

Answers for your LDC crane purchase

Find the arrangement, equipment options and order information that suit your application.

How does this LDC differ from a standard LD crane?

This version uses a European-style compact hoist and variable-frequency travel. It suits buyers who want adjustable travel speed and a compact lifting package for production or assembly work.

Can I select a different lifting height or voltage?

Yes. Hook travel and the electrical supply can be configured for the workshop. Include the required lifting height, voltage and frequency with your enquiry.

Are all listed capacities and speeds supplied in one configuration?

The hoist package is matched to the selected capacity and duty. Your quotation identifies the lifting speeds, motor ratings and travel configuration for that crane.

What is needed for a crane price?

Send the maximum load, span, lifting height, power supply and approximate lifts per hour. A short description of the load and pickup positions helps select the hoist and controls.

What documents should be included in the order?

Specify the technical drawing, operating and maintenance manuals, inspection records and any destination-specific compliance documents required for your purchase.

How is delivery time confirmed?

Delivery time depends on the selected crane configuration, quantity and transport scope. The quotation and order schedule set out the production and shipping arrangement.
