Load matrix by bay
Hot Rolling Mill Crane Fleet
A large hot-rolling operation needs multiple cranes with different loads and duty cycles across production and service areas.

Start with the load and the process route.
A large hot-rolling operation needs multiple cranes with different loads and duty cycles across production and service areas.
The crane, lifting attachment, building interface and control sequence need to be reviewed as one operating system.
Prepare the technical brief ↗Building spans and hook approach
Operating cycles and shifts
Commissioning schedule by production area
Assign lifting capacity across every rolling-mill production bay.
Map handling tasks bay by bay, then choose double-girder bridge cranes with capacities, hook approaches and controls matched to each station. Standardize interfaces where possible without forcing unlike lifts into one configuration.

List bay duties
Separate production loads, rolls, parts and maintenance lifts.
Allocate crane coverage
Match each crane's span, lift height and capacity to its bay.
Plan fleet support
Coordinate spares, inspections and downtime across the full installed group.
Mixed capacities
Size each bay from its heaviest real load and cycle, not the fleet's maximum unit.
Installation sequence
Coordinate crane delivery and commissioning with rolling-line construction.

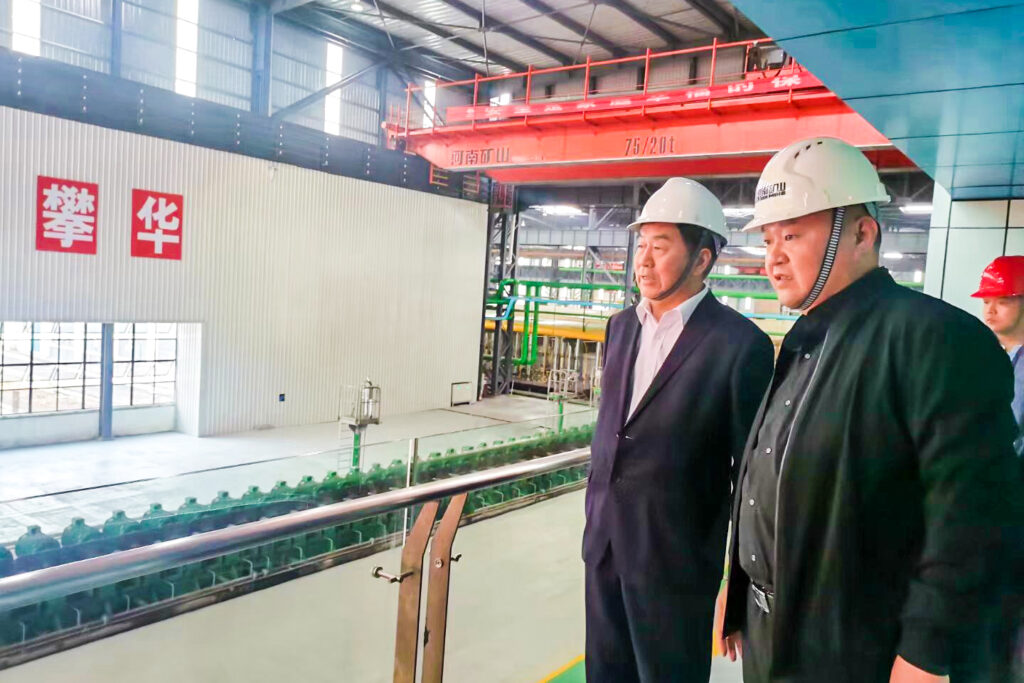

Panhua Group hot-rolling project
Henan Mine Crane delivered 34 double-girder bridge cranes with capacities from 10 t to 100 t for a 4.5 million-ton annual hot-rolling project in Chongqing.






Define the operating brief before fixing a crane model.
Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.
| Input | Information needed for this application | Confirm in the technical offer |
|---|---|---|
| 01 / Load and attachment | Load matrix by bay | Rated load including the attachment, lifting-point arrangement and load cases. |
| 02 / Plant geometry | Building spans and hook approach | Crane span, lifting height, headroom, wheel loads and runway or foundation interfaces. |
| 03 / Operating duty | Operating cycles and shifts | Duty classification, speeds and control behaviour matched to the agreed operating cycle. |
| 04 / Environment and controls | Commissioning schedule by production area | Protection, positioning, interlocks, monitoring and safe recovery requirements. |
| Destination and delivery | Country, project standards, quantity, freight and site services. | Documents, inspection and testing, packing, installation support and agreed delivery milestones. |
Send the available load schedule and drawings. The missing inputs can be identified during technical review.
Discuss your project ↗Compare the complete lifting package.
The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.
Engineering
General arrangement, load basis, runway and utility interfaces, control and protection schedule.
Manufacture & inspection
Approved drawings, inspection plan and factory testing for the selected configuration.
Shipping & site work
Packing, freight, erection support, commissioning and operator training as specified.
Handover
Test records, manuals, maintenance instructions and agreed spare-parts list.
Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.
Compare equipment for this operating task.
These product families and related applications provide a starting point. Final selection follows the load and site review.
Before you request a quotation.
What information is needed to specify this crane solution?
Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.
Can the crane be customized for our plant?
Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.
What are the order quantity, certification and lead time?
We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.
Send the hot rolling mill crane fleet brief. Get a crane proposal built around your process.
Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
Send your project requirements ↗
