STEEL MILL CRANES

Special Steel Casting and Magnetic Beam

A special-steel base must lift liquid metal and long or irregular finished steel, which need different attachments and protection.

ApplicationBaowu Masteel special-steel base
Installed equipmentProject-specific lifting arrangement
Site-specificLoad, route, duty and delivery scope

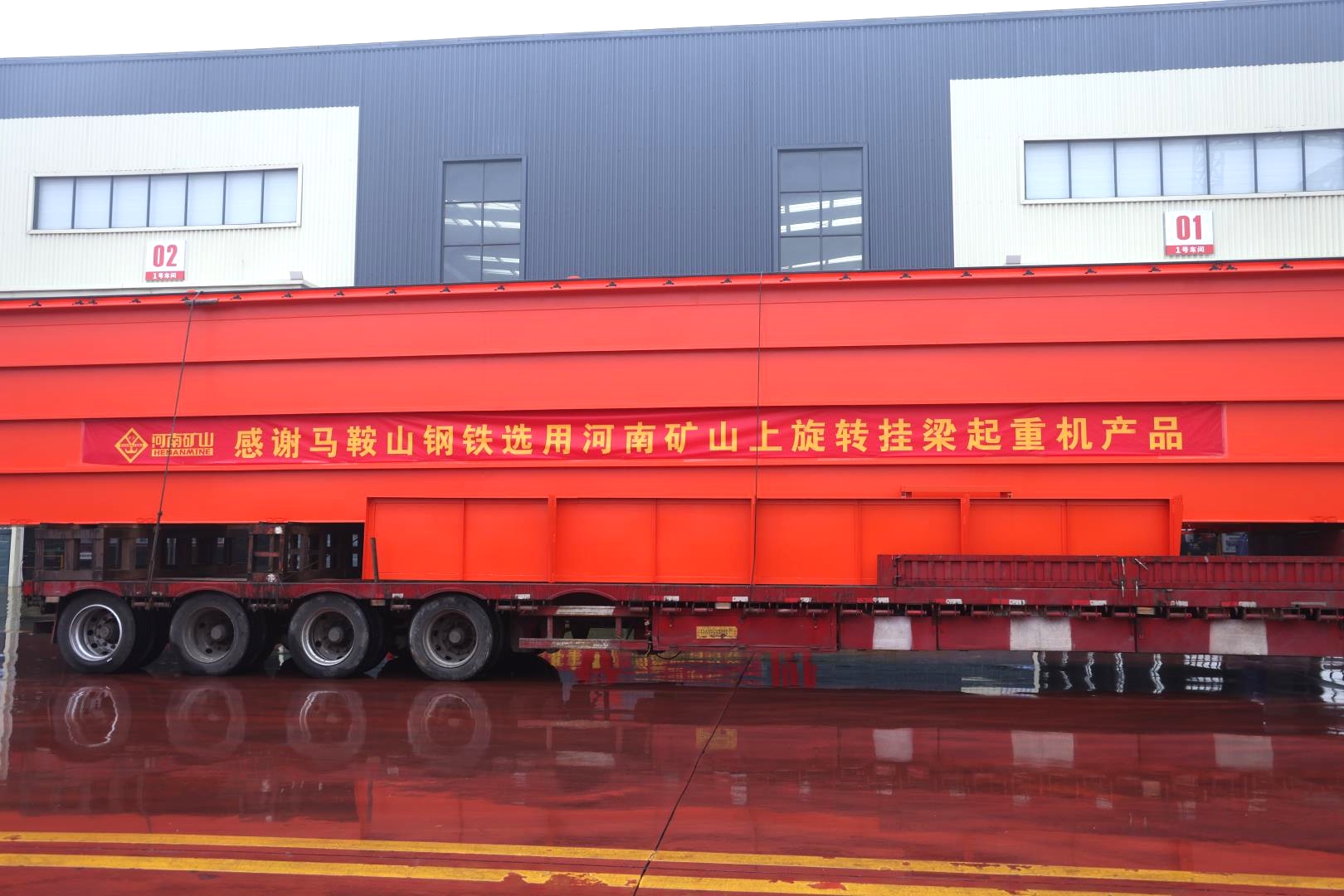

Casting crane and magnetic beam handling equipment in a special steel plant
Casting crane and magnetic beam handling equipment in a special steel plant.
THE OPERATING CHALLENGE

Start with the load and the process route.

A special-steel base must lift liquid metal and long or irregular finished steel, which need different attachments and protection.

The crane, lifting attachment, building interface and control sequence need to be reviewed as one operating system.

Prepare the technical brief ↗
01 / DEFINE

Ladle and steel-stock dimensions

02 / DEFINE

Heat and magnetic lifting conditions

03 / DEFINE

Runway spans by bay

04 / DEFINE

Beam rotation and release clearances

ENGINEERED FOR THE APPLICATION

Separate ladle safety from rotating steel-product handling.

Plan casting cranes for the hot route and rotating electromagnetic beams for downstream steel moves. The beam rotation, pickup points and discharge geometry should follow the stockyard or finishing layout; the ladle route receives its own safety review.

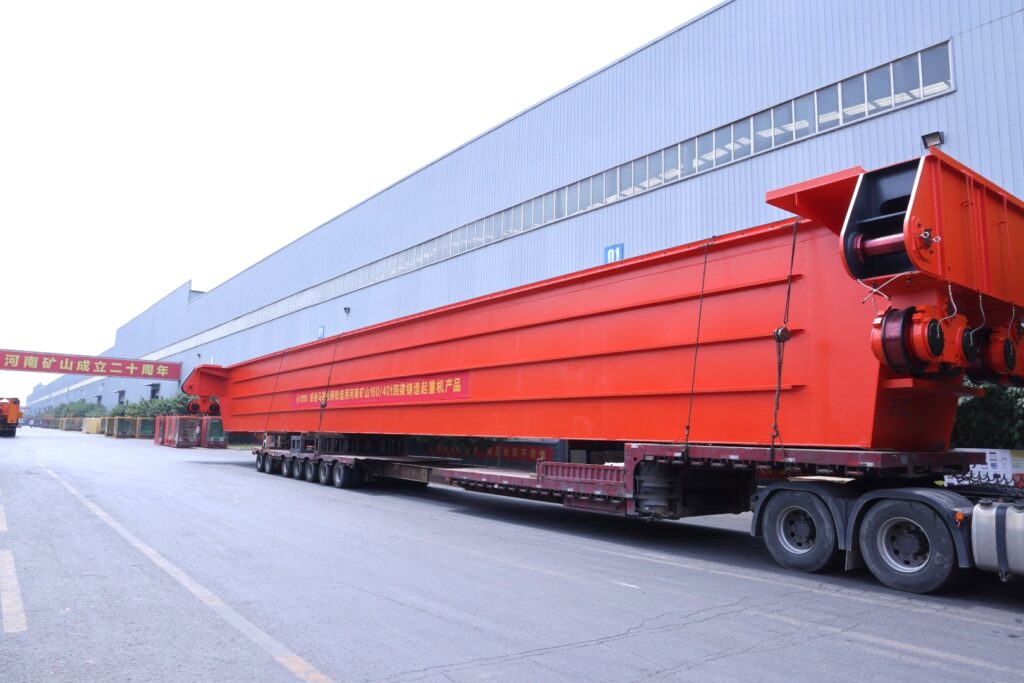

Casting crane bridge girder loaded on a transport trailer
Casting crane bridge girder loaded on a transport trailer.
01

Serve the melt shop

Define ladle pickup, refining and transfer positions for the casting crane.

02

Handle formed steel

Use an electromagnetic beam suited to long pieces and the pickup pattern.

03

Rotate where needed

Align the suspended material with the destination before release.

✓

Independent duty classes

Casting and magnetic-beam cycles should be sized separately.

✓

Rotation clearance

Check 360-degree beam movement against the building, neighboring loads and personnel routes.

PROJECT IN OPERATION

Baowu Masteel special-steel base

Henan Mine Crane delivered more than 30 cranes for the 3.2 million-ton base, including a 200 t casting crane and upper-rotating electromagnetic beam cranes.

Process fitSpecial Steel Casting and Magnetic Beam Solution
EquipmentFour-Girder Casting Crane / Upper-Rotating Electromagnetic Beam Crane
ProjectBaowu Masteel special-steel base
Technical reviewCustomer load and site drawings
SPECIFICATION FOR YOUR SITE

Define the operating brief before fixing a crane model.

Project figures above describe a delivered application. Your crane rating, dimensions, controls and documentation follow the approved site brief.

InputInformation needed for this applicationConfirm in the technical offer
01 / Load and attachmentLadle and steel-stock dimensionsLadle/steel-stock dimensions and mass, attachment mass, lifting points and load cases.
02 / Environment and controlsHeat and magnetic lifting conditionsHeat exposure, steel contact conditions, magnet duty and the selected protection package.
03 / Plant geometryRunway spans by bayRail-centre span, hook coverage, runway reactions and building interfaces.
04 / Environment and controlsBeam rotation and release clearancesProtection, positioning, interlocks, monitoring and safe recovery requirements.
Destination and deliveryCountry, project standards, quantity, freight and site services.Documents, inspection and testing, packing, installation support and agreed delivery milestones.
Have a preliminary layout?

Send the available load schedule and drawings. The missing inputs can be identified during technical review.

Discuss your project ↗
FROM OFFER TO HANDOVER

Compare the complete lifting package.

The offer should state the equipment boundary, documents, inspections and site responsibilities for your destination.

01

Engineering

General arrangement, load basis, runway and utility interfaces, control and protection schedule.

02

Manufacture & inspection

Approved drawings, inspection plan and factory testing for the selected configuration.

03

Shipping & site work

Packing, freight, erection support, commissioning and operator training as specified.

04

Handover

Test records, manuals, maintenance instructions and agreed spare-parts list.

Order quantity, compliance and delivery schedule

Single-crane and multi-crane packages are available. Your quotation defines the destination standards, required certificates and inspection records, packing, site services and production schedule after drawing approval.

RELATED CRANES AND SOLUTIONS

Compare equipment for this operating task.

These product families and related applications provide a starting point. Final selection follows the load and site review.

BUYER QUESTIONS

Before you request a quotation.

What information is needed to specify this crane solution?

Send the full load and lifting-gear mass, route or bay drawing, operating cycles, working environment, controls and destination requirements.

Can the crane be customized for our plant?

Yes. The equipment arrangement, attachment and controls are selected for the approved load, route, runway and process conditions.

What are the order quantity, certification and lead time?

We can quote a single crane or a coordinated fleet. The project offer states the agreed destination standards, inspection and test documents, manufacturing schedule after drawing approval, and shipping or site-service scope.

LET'S REVIEW YOUR PROJECT

Send the special steel casting and magnetic beam brief. Get a crane proposal built around your process.

Share your load, layout, work cycle and destination. Our team can review the crane, lifting attachment and delivery scope together.
