Where it fits
Steel plate, billets, profiles, scrap and other ferrous loads suited to magnetic pickup.
HENAN MINE CRANE / ELECTROMAGNETIC OVERHEAD CRANES
Electromagnetic Overhead Crane
Lift ferrous material with a dedicated magnet crane.
The QC double-girder crane carries an electromagnetic lifter for steel handling in mills, warehouses and yards. Select the magnet around the material contact area and piece geometry; an auxiliary-hook arrangement is available for jobs that also need conventional lifting.
QCModel designation5 / 10 / 16 tRated load selection
PRODUCT CONFIGURATION / QCTHE LIFTING TASK
Designed for your handling path.
The QC double-girder crane carries an electromagnetic lifter for steel handling in mills, warehouses and yards. Select the magnet around the material contact area and piece geometry; an auxiliary-hook arrangement is available for jobs that also need conventional lifting.
Crane arrangement
Double-girder bridge with electromagnetic lifting attachment with Electric trolley hoist; auxiliary-hook configurations available.
MODEL QC
Technical configuration
Size the crane against the load, installation geometry and work cycle. The final equipment schedule follows the project drawings and operating brief.
Rated capacity5 / 10 / 16 t; main/auxiliary configurations 16/3.2, 20/5, 32/5 t
Crane span10.5–31.5 m
Lifting height16 m standard; main/auxiliary configurations 12–18 m
Duty classA6
Hoisting speed9.5–15.6 m/min across listed configurations
Bridge / structureDouble-girder bridge with electromagnetic lifting attachment
Lifting systemElectric trolley hoist; auxiliary-hook configurations available
ControlCab or remote control configured for operator visibility
Protection / markingMagnet type and excitation matched to load dimensions, temperature and surface condition.
Power supplyMatch voltage and frequency to the destination site
Runway and building interfaceCheck runway geometry, wheel loads and building reactions
Hook approach and clearanceConfirm required lifting envelope against the site drawings
BUYER'S SELECTION GUIDE
Specify the crane around the job.
Steel plate, billets, profiles, scrap and other ferrous loads suited to magnetic pickup.
Compare the Electromagnetic Overhead Cranes range ↗Load and lifting attachment
Share the maximum lifted mass, load dimensions, center of gravity and any grab, magnet, spreader or lifting beam.
Runway and building interface
Confirm runway centers, wheel loads, building clearances and hook approaches.
Duty and controls
State typical load, lifts per hour, travel distance, shifts, control position and site power supply.
Model-specific check
Send the heaviest item, smallest item, contact surface, load temperature and expected lifts per hour.

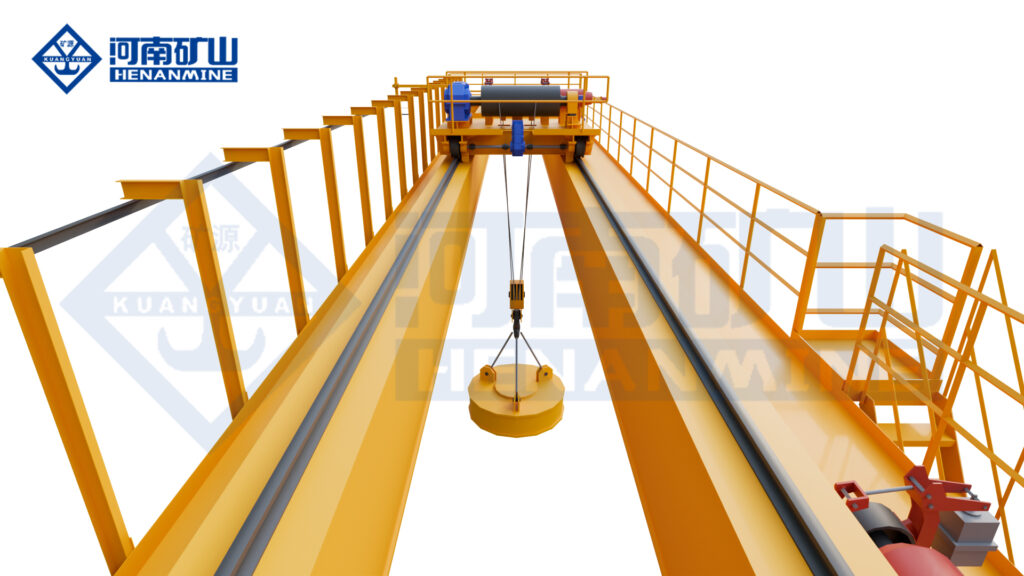

PRODUCT PHOTOS
See the QC configuration.
Review the equipment arrangement alongside your proposed site layout and lifting route.
TALK TO OUR ENGINEERS
Get a QC crane proposal.
Send the load schedule and site drawings. We can configure the crane, lifting system and installation interface for your operating conditions.
Request a technical proposal ↗- Maximum lifted load and attachment
- Span, travel length and available clearances
- Daily lifting cycle and control choice
- Power supply, environment and destination
