150+ Crane Units for a Multi-Line Industrial Plant
More than 150 crane units, including two 100 t intelligent cranes, support multiple production lines at a large industrial project.
The project and its handling task.
Henan Mine Crane manufactured more than 150 lifting units for a plant project with a stated six-million-tonne production scale. Two 100 t intelligent cranes are included in the equipment used across the production lines.
Intelligent workstation recognition and crane-position tracking support the handling sequence. Variable-frequency speed control, automatic operation and fault self-diagnosis are combined with redundant design and monitoring. Further equipment for the second phase was in manufacture at the programme milestone.
Coordinate repeated lifts across several production lines.
A large factory may need many crane capacities and automatic work-position recognition without losing fleet-wide availability.
Define pickup and delivery coordinates for each line.
Route loads without conflicts between neighboring cranes.
Use diagnostics and status data to plan maintenance.
Use diagnostics and status data to plan maintenance.
The equipment behind this project.
Intelligent workstation recognition and crane-position tracking support the handling sequence. Variable-frequency speed control, automatic operation and fault self-diagnosis are combined with redundant design and monitoring. Further equipment for the second phase was in manufacture at the programme milestone.
- First programme scopeMore than 150 crane units
- Named intelligent cranes2 units rated 100 t
- AutomationWorkstation recognition and position tracking
- MotionVariable-frequency speed control and automatic operation
- Reliability functionsFault self-diagnosis, redundancy and monitoring
What to compare with your own project.
Match the project configuration to your load, layout and operating sequence before selecting a crane package.
| Design area | This project configuration | Define for your site |
|---|---|---|
| First programme scope | More than 150 crane units | Load matrix by line. Define the required operating envelope and acceptance checks in your technical brief. |
| Named intelligent cranes | 2 units rated 100 t | Station and runway drawings. Define the required operating envelope and acceptance checks in your technical brief. |
| Automation | Workstation recognition and position tracking | Required automatic sequences. Define the required operating envelope and acceptance checks in your technical brief. |
| Motion | Variable-frequency speed control and automatic operation | Availability and redundancy target. Define the required operating envelope and acceptance checks in your technical brief. |
| Reliability functions | Fault self-diagnosis, redundancy and monitoring | Load matrix by line. Define the required operating envelope and acceptance checks in your technical brief. |

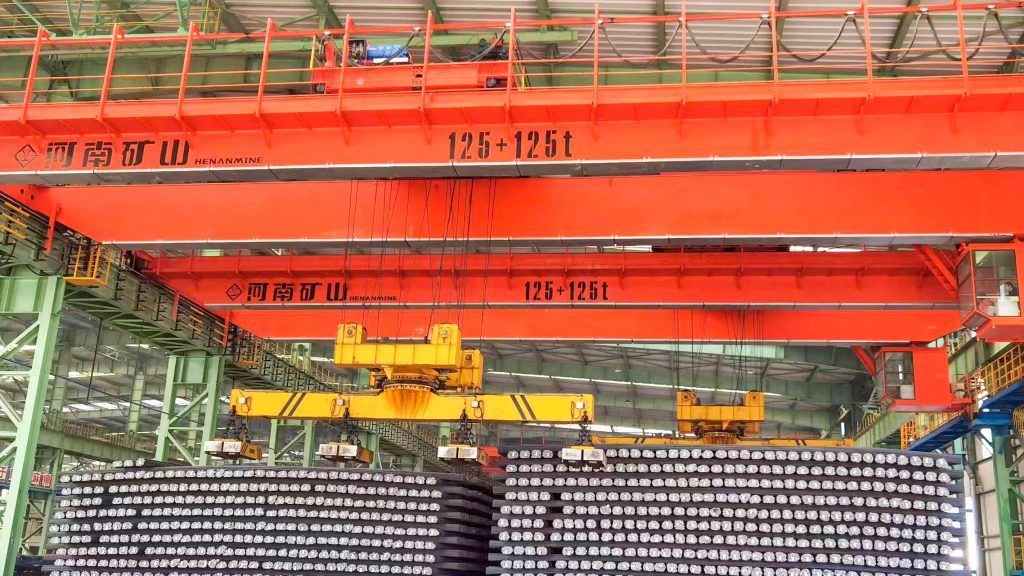

See the equipment and working environment.
Explore the equipment arrangement and handling environment.
First-phase application; further supply in manufacture.
The supplied equipment serves multiple production lines, with subsequent-phase cranes continuing through manufacture at the stated milestone. The programme links bay coverage with intelligent positioning and monitored operation.
For a similar project, map each line's load and station sequence, then assign crane capacity and coverage. Position tracking, variable-frequency travel, diagnosis and redundant systems support automatic operations where the process is repeatable.
Continue from the project to the right crane family.
Use the project as a reference and specify the crane against your own yard layout and cargo.
Prepare a comparable crane quotation.
Share the load schedule and site drawings. Map each line's load and station sequence, then assign crane capacity and coverage. Position tracking, variable-frequency travel, diagnosis and redundant systems support automatic operations where the process is repeatable.
We can quote a single crane or a coordinated fleet. The offer sets out the destination standards, required certificates and inspection records, manufacturing programme after drawing approval, shipment, installation support and agreed acceptance scope.
- Load matrix by line
- Station and runway drawings
- Required automatic sequences
- Availability and redundancy target
- Destination standards, quantity and inspection documentation
- Manufacturing programme, shipment, commissioning, training and spares
Questions before specifying a similar crane.
Can the same project crane be supplied for my site?
We customize the capacity, span, lifting height, attachment and controls to the load, building or yard layout and operating cycle. Load matrix by line is one of the inputs to review before final equipment selection.
How are certification, quantity and lead time agreed?
Single-crane and fleet enquiries are welcome. Define the destination and required standards in the enquiry. The project offer confirms certification and inspection documents, the quantity, drawing approval and manufacturing schedule, with the shipping and site-service boundaries.
What should acceptance and after-sales support include?
Agree the inspection plan, representative load and functional tests, operator training, maintenance instructions, spare-parts scope and fault-recovery procedures. For this application, include availability and redundancy target in the technical review.
Planning a similar lifting project?
Send your layout, load and operating requirements. We can develop a customized crane package and delivery scope for your site.
